Strut and Spring Assembly: Notes

MATERIAL

Item	Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

Courtesy of FORD MOTOR COMPANY

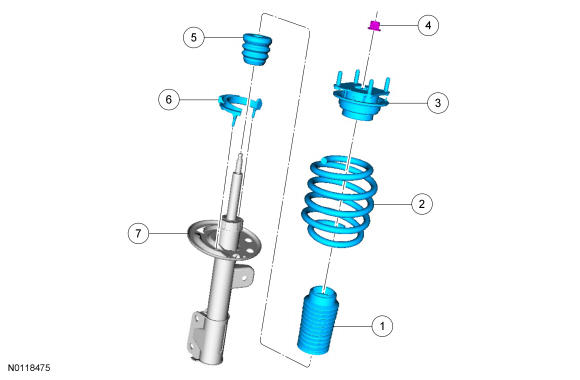

Item	Part Number	Description
1	18A047	Dust boot
2	5310	Spring
3	18183	Upper strut mount
4	W713968	Strut rod nut
5	18198	Jounce bumper
6	5415	Lower spring isolator
7	18124	Strut assembly
