Manifold Absolute Pressure and Temperature (MAPT) Sensor - 3.5L Ti-VCT

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MATERIAL

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada)	WSS-M2C945-A

• 1.

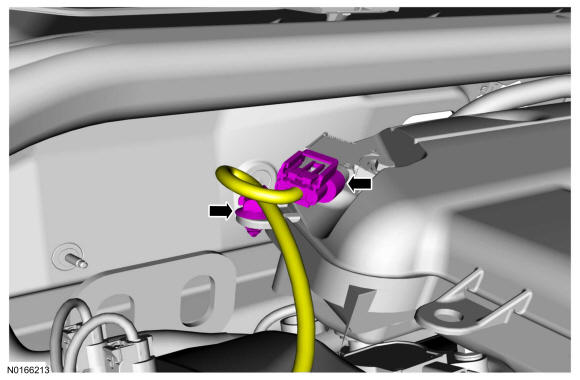

  Disconnect the MAPT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

• 2.

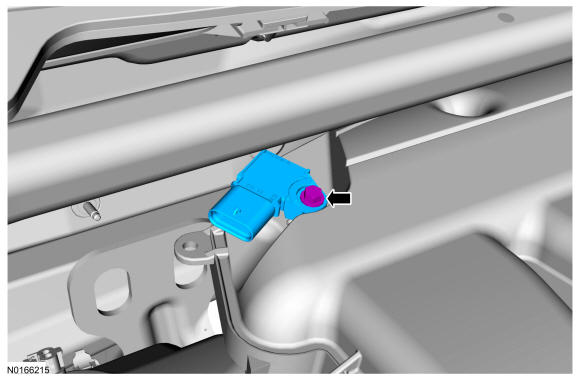

  Remove the bolt and the MAPT sensor.
  • To Install, tighten to 4 Nm (35 Ib-In).

Courtesy of FORD MOTOR COMPANY

• 3.

  To Install, reverse the removal procedure.
  • Lubricate the MAPT sensor O-ring seal with clean engine oil.
