Removal And Installation
NOTE:

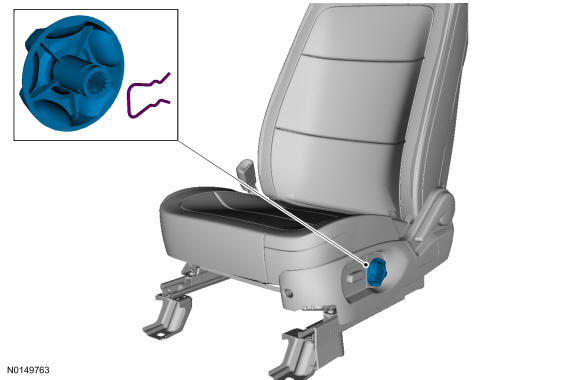

Driver seat shown in illustration, passenger seat similar.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
Turn the ignition OFF and wait at least one minute.

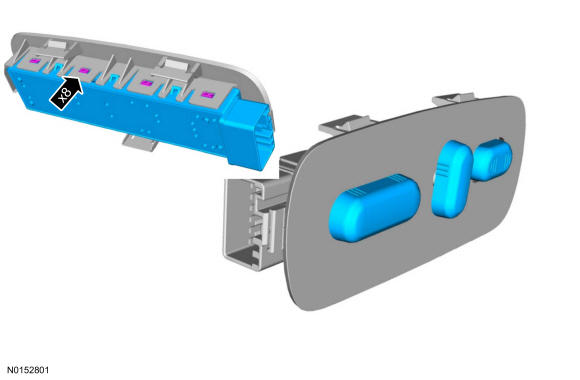

- 3.NOTE: 6-way seat control switch shown in illustration, 10-way similar
- 1.

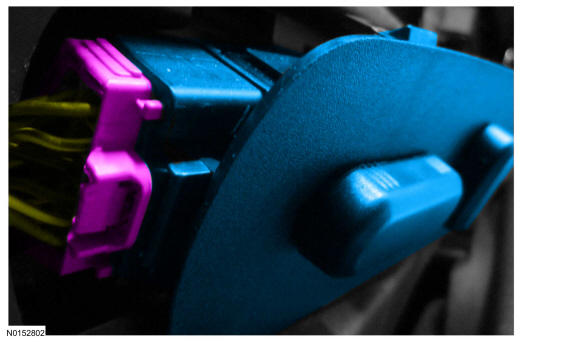

From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.

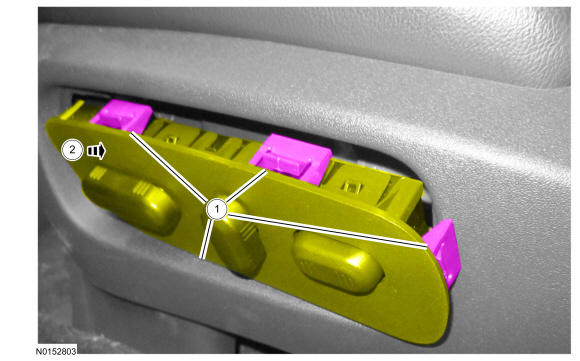

- 2.NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, the seat control switch bezel retainers can break.
Slide the seat switch bezel rearward to release from the cushion side shield.
- 1.
