Cruise Control Module (CCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Remove the front bumper cover. REFER to: Front Bumper Cover .

3.

Remove the active grille shutter. REFER to: Active Grille Shutter .

4.

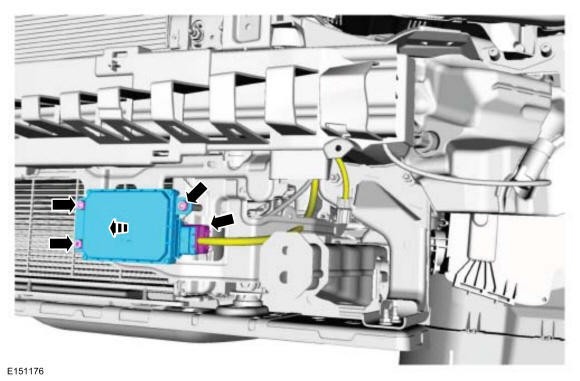

- Disconnect the electrical connector.
- Release the CCM grommets from the ball studs.
- Remove the CCM.

GFD69344

Courtesy of FORD MOTOR COMPANY

5.

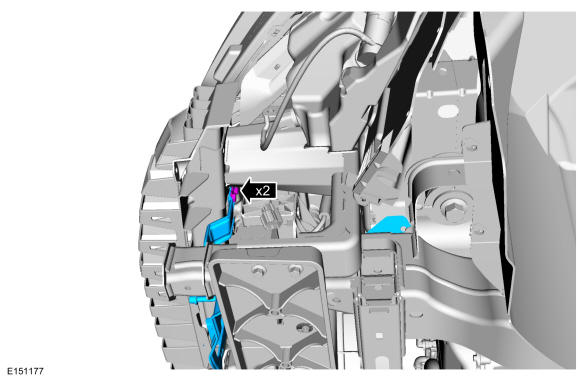

Remove the CCM bracket bolts.
Torque

: 20 lb.ft (27 Nm)

GFD69345

Courtesy of FORD MOTOR COMPANY

6.

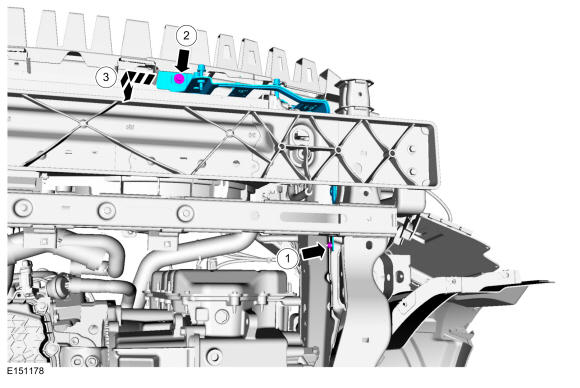

Remove the CCM bracket.
1. 1.

  Remove the CCM bracket nut.
  Torque

  : 80 lb.in (9 Nm)
1. 2.

  Remove the CCM bracket bolt.
  Torque

  : 80 lb.in (9 Nm)
1. 3.

  Slide the CCM bracket out of the front bumper slot.

GFD69346

Courtesy of FORD MOTOR COMPANY
