Anti-Lock Brake System (ABS) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
- 2.
Refer to: Hydraulic Control Unit (HCU) .

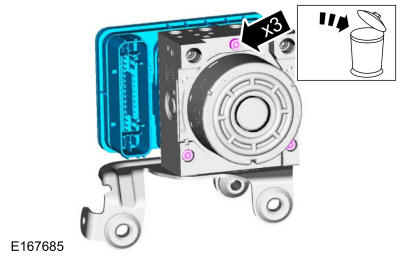

- 3.NOTE: Make sure the HCU and ABS module are clean and free of brake fluid or foreign material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.
