Repair procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

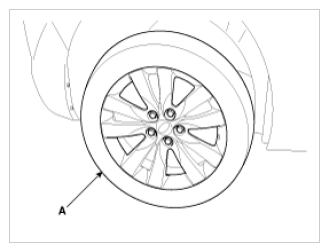

- Remove the front wheel and tire (A) from front hub.
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
CAUTION:- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
- Remove the stabilizer link (A) loosening the nut (B) and (C).
Tightening torque:
98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)
