Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

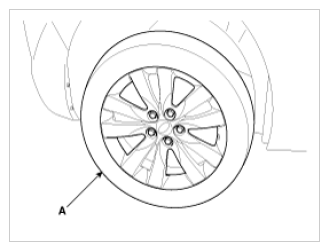

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 1: Identifying Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
Disconnect the stabilizer link (B) from the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 2: Identifying Stabilizer Link From Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA

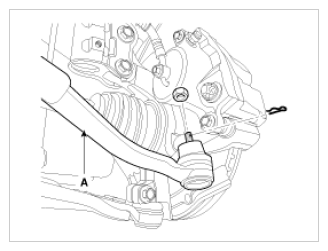

Remove the split pin and nut and then disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

Fig 3: Identifying Tie-Rod End From Front Knuckle
Courtesy of HYUNDAI MOTOR AMERICA

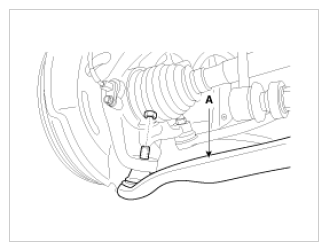

Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

78.5 ~ 88.3 N.m (8.0 ~ 9.0 kgf.m, 57.9 ~ 65.1 lb-ft)

Fig 4: Identifying Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA

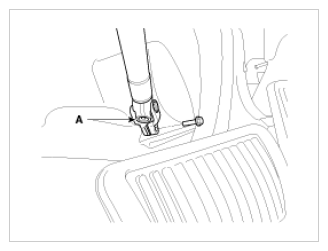

Loosen the bolt and then disconnect the universal joint assembly (A) from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

Fig 5: Identifying Universal Joint Assembly From Pinion Of Steering Gear Box
Courtesy of HYUNDAI MOTOR AMERICA
1. Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
2. Must be replaced with new bolt when assembling.
  (SEAL-LOCK has been processed)

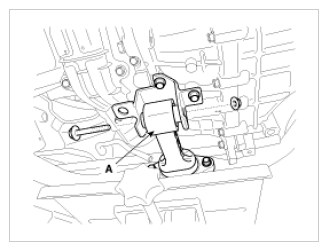

Loosen the bolt & nut and then separate the roll rod stopper (A).
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Fig 6: Identifying Roll Rod Stopper
Courtesy of HYUNDAI MOTOR AMERICA

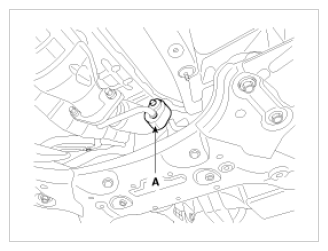

Disconnect the muffler rubber hanger (A).

Fig 7: Identifying Muffler Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

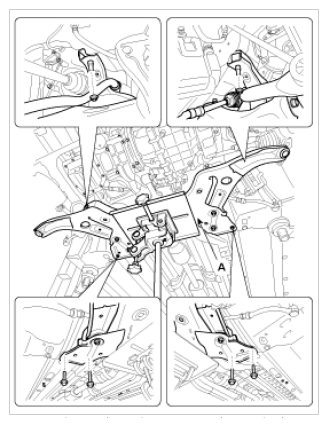

Loosen the bolts & nuts and then remove the sub frame (A).
Tightening torque:

Sub frame mounting bolt & nut

156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

Sub frame stay mounting bolt

44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

Fig 8: Identifying Sub Frame Mounting Bolt & Nut
Courtesy of HYUNDAI MOTOR AMERICA

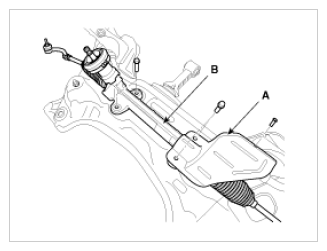

Loosen the bolt and then remove the protector (A) and steering gear box (B).
Tightening torque:

Steering gearbox bolts:

58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Protector bolts:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 9: Identifying Protector And Steering Gear Box
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
Check the wheel Alignment.
(Refer to "ALIGNMENT ")
