Side Obstacle Detection (SOD) Module: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

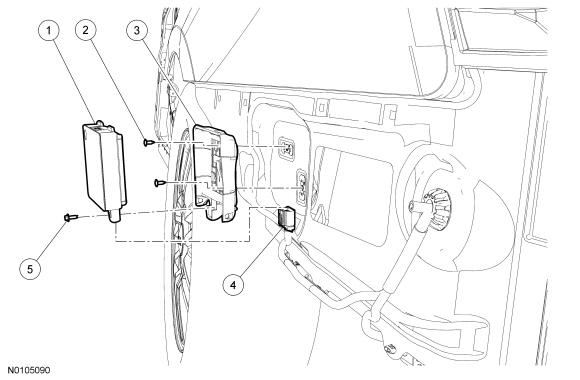

Side Obstacle Detection (SOD) Module
NOTE:
Rear bumper cover removed for clarity.
NOTE:
Left rear quarter panel shown, right side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L) /Side Obstacle Detection Control Module - Right (SOD-R) |
| 2 | W705247 | SOD-L /SOD-R bracket screws (2 required) |
| 3 | 14D189 | SOD-L /SOD-R bracket |
| 4 | - | SOD-L /SOD-R electrical connector (part of 14A005) |
| 5 | W503901 | SOD-L /SOD-R screw and washer |
