Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

1.

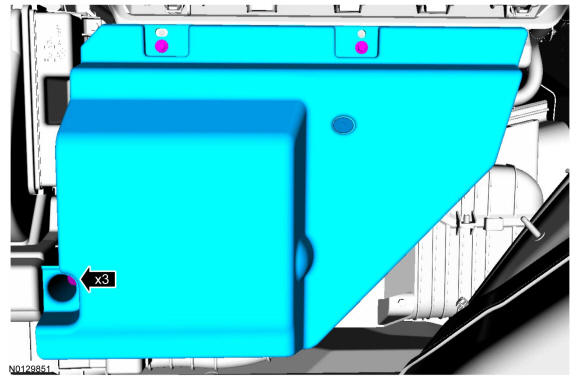

Remove the 3 RH lower instrument panel insulator screws and remove the insulator.

GFD94521

Courtesy of FORD MOTOR COMPANY

2.

Remove the blower motor speed control.
- 1.

  Disconnect the blower motor speed control electrical connector.
- 2.

  Remove the 2 blower motor speed control screws.

GFD94523

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
