WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

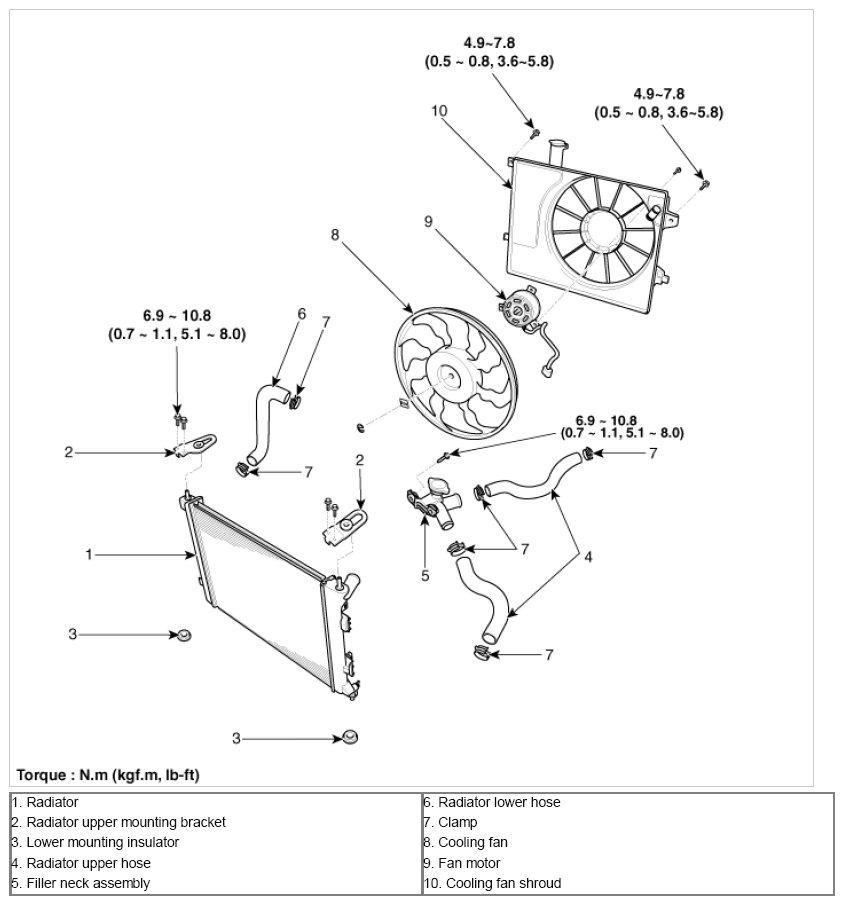

Fig 1: Cooling System Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

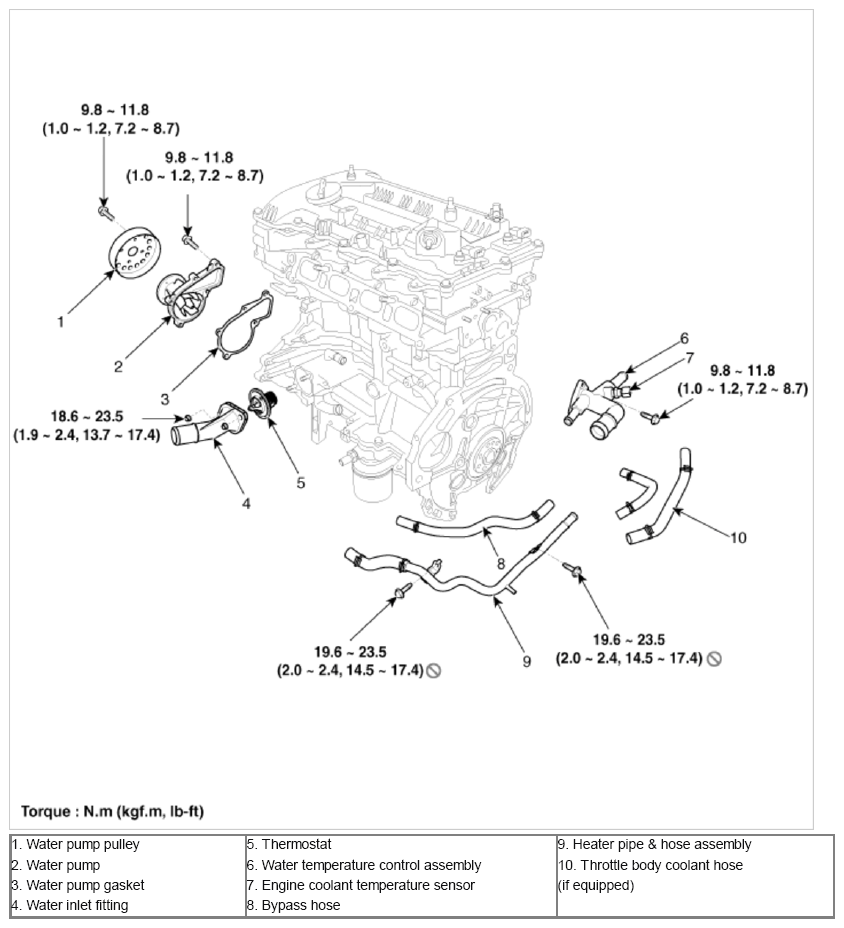

Fig 2: Cooling System Replacement Components With Torque Specifications (2 Of 2)
