Components and Components Location: Components

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

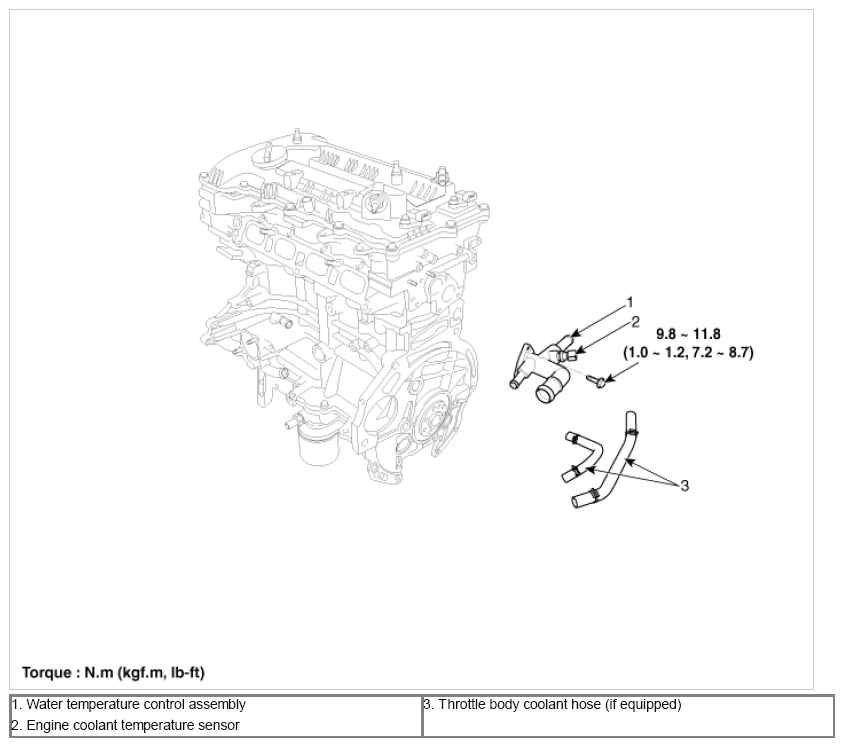

Fig 1: Water Temperature Control Assembly With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA
