Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to "FRONT BUMPER COVER ")
Disconnect the ambient temperature sensor connector (A).

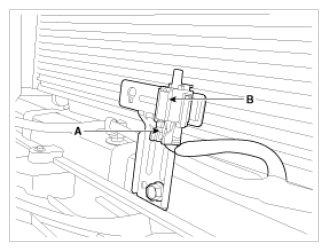

Fig 1: Identifying Ambient Temperature Sensor And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ambient temperature sensor (B).
Install in the reverse order of removal.
