Repair procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to "GLOVE BOX HOUSING ")

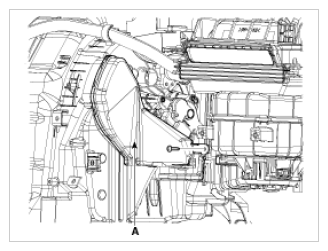

- Remove the shower duct (A).

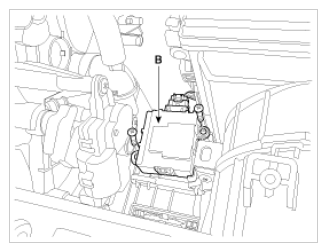

- Disconnect the connector and then remove the cluster ionizer (B) after loosening the mounting screws.
- Install in the reverse order of removal.
