Section 600 (Front Disc Brake System)
›
Removal And Installation
›
Front Disc Brake Shield
›
Removal
Front Disc Brake Shield: Removal
WARNING:
This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
1.
Remove the brake disc. Refer to:
Brake Disc
.
2.

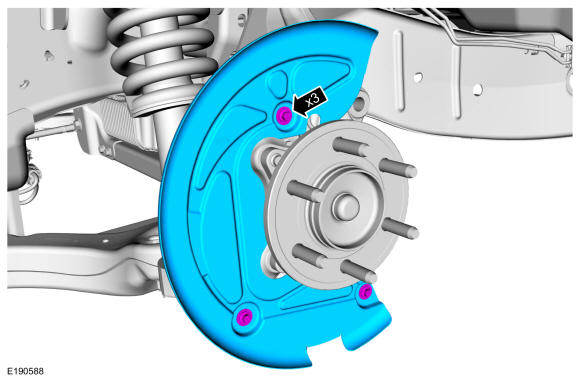

Remove the 3 bolts and the brake disc shield.
Torque: 155 lb.in (17.5 Nm)
Courtesy of FORD MOTOR COMPANY
