Front Head Restraint Guide Sleeve: Installation

NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.
NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeve at the correct position may result in component failure.

  1. 1.

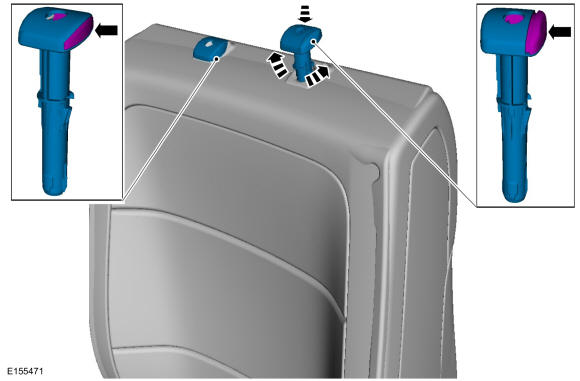

    Install the new head restraint guide sleeves.
GFD132973Courtesy of FORD MOTOR COMPANY

  1. 2.

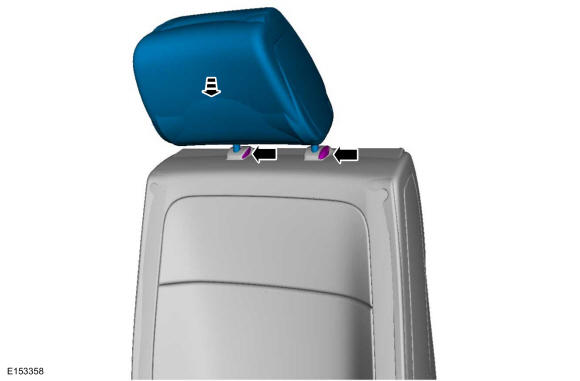

    Depress the locking tabs and install the head restraint.
GFD132974Courtesy of FORD MOTOR COMPANY
