Main Control Valve Body

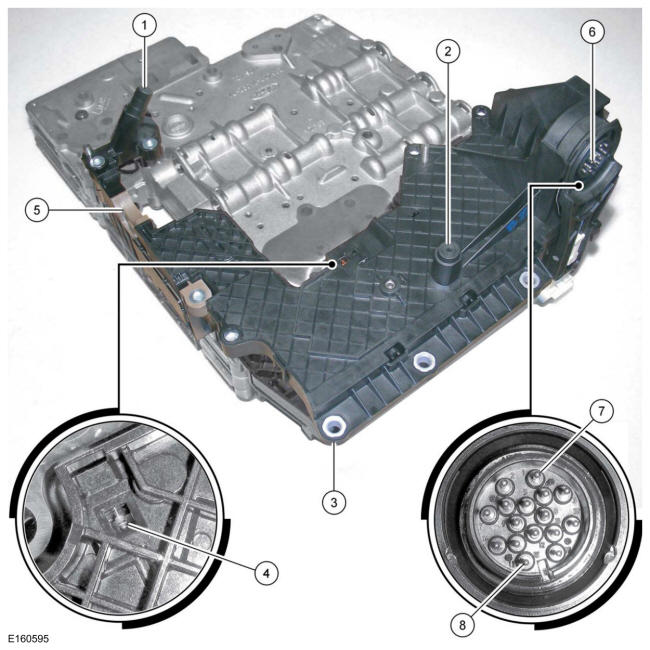

GFD131074Courtesy of FORD MOTOR COMPANY
1 TSS
2 OSS
3 Molded leadframe
4 TFT
5 TR
6 Leadframe connector
7 Terminal 1
8 Terminal 16
