Variable Camshaft Timing (VCT) Oil Control Solenoid - 3.5L GTDI: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

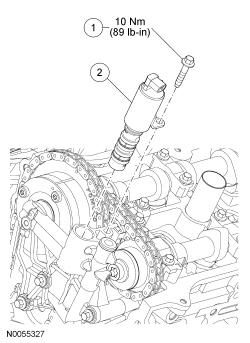

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid (3.5L GTDI) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W500215	Variable Camshaft Timing (VCT) oil control solenoid bolt
2	6B297	VCT oil control solenoid
