Section 263 (OEM Connector Repair Procedures)
›
Connector Repair Procedures
Connector Repair Procedures
WARNING:
This page is about a different car, the 2015 Ford Special Service Police Sedan and 2015 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.

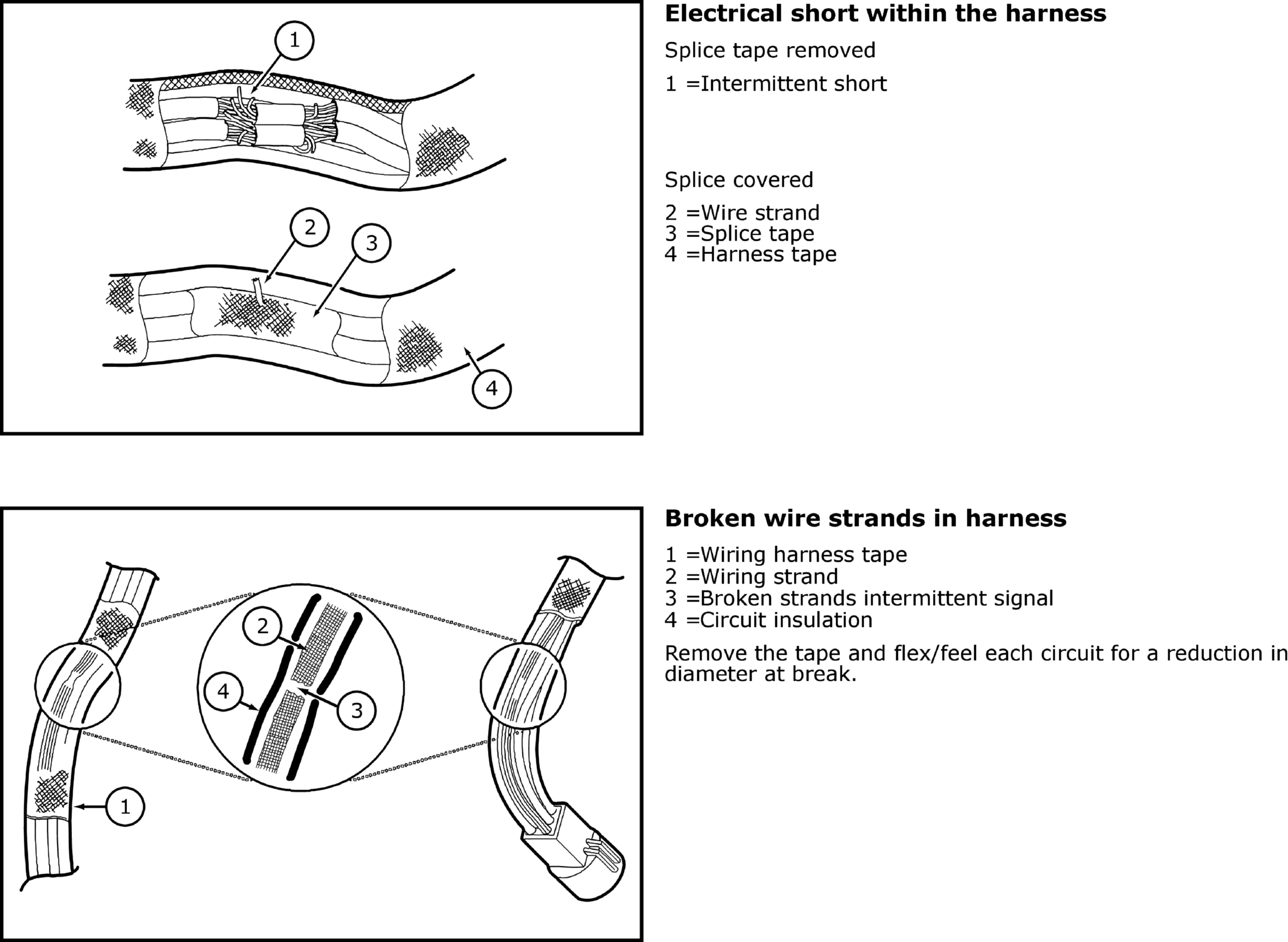

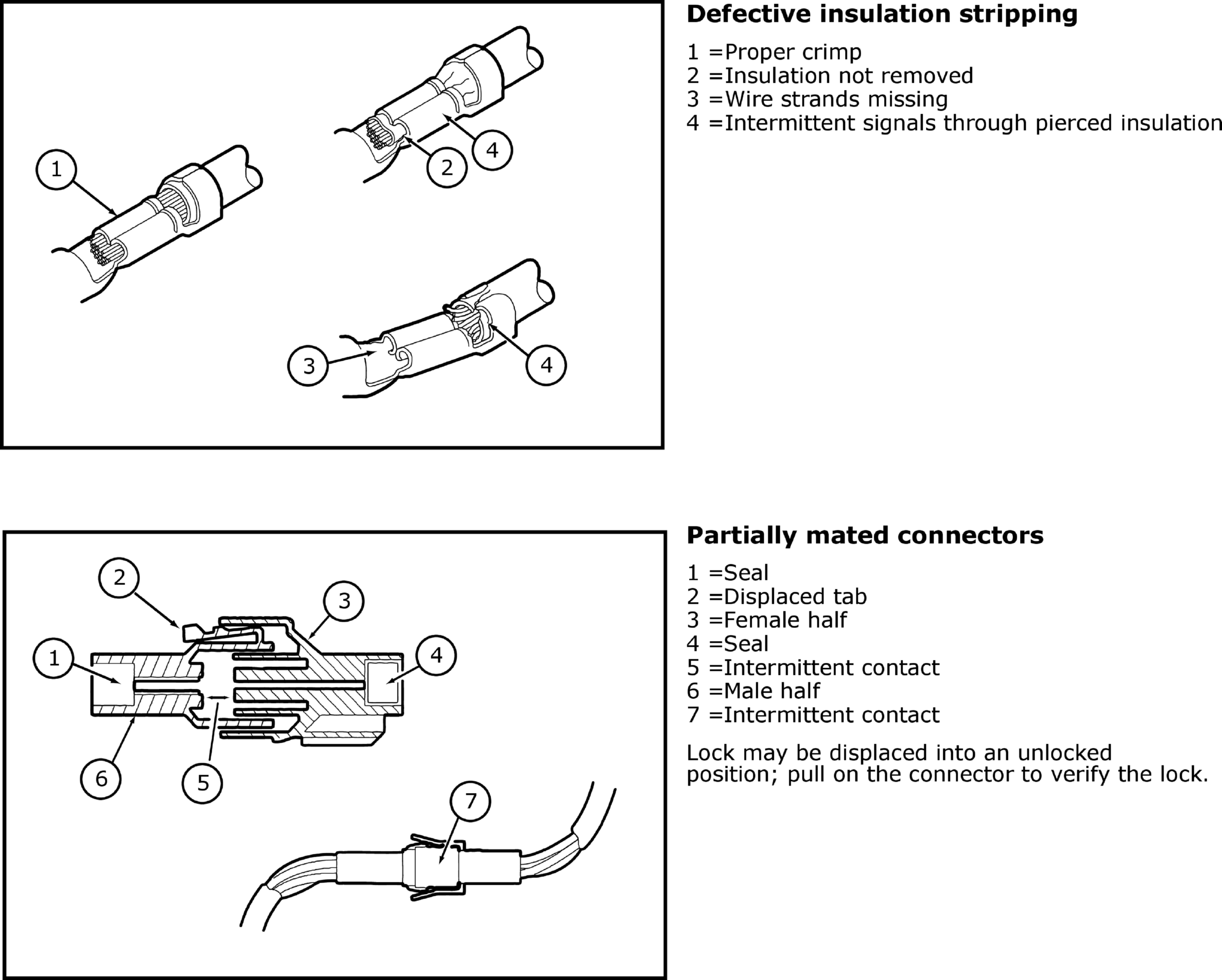

Courtesy of FORD MOTOR COMPANY

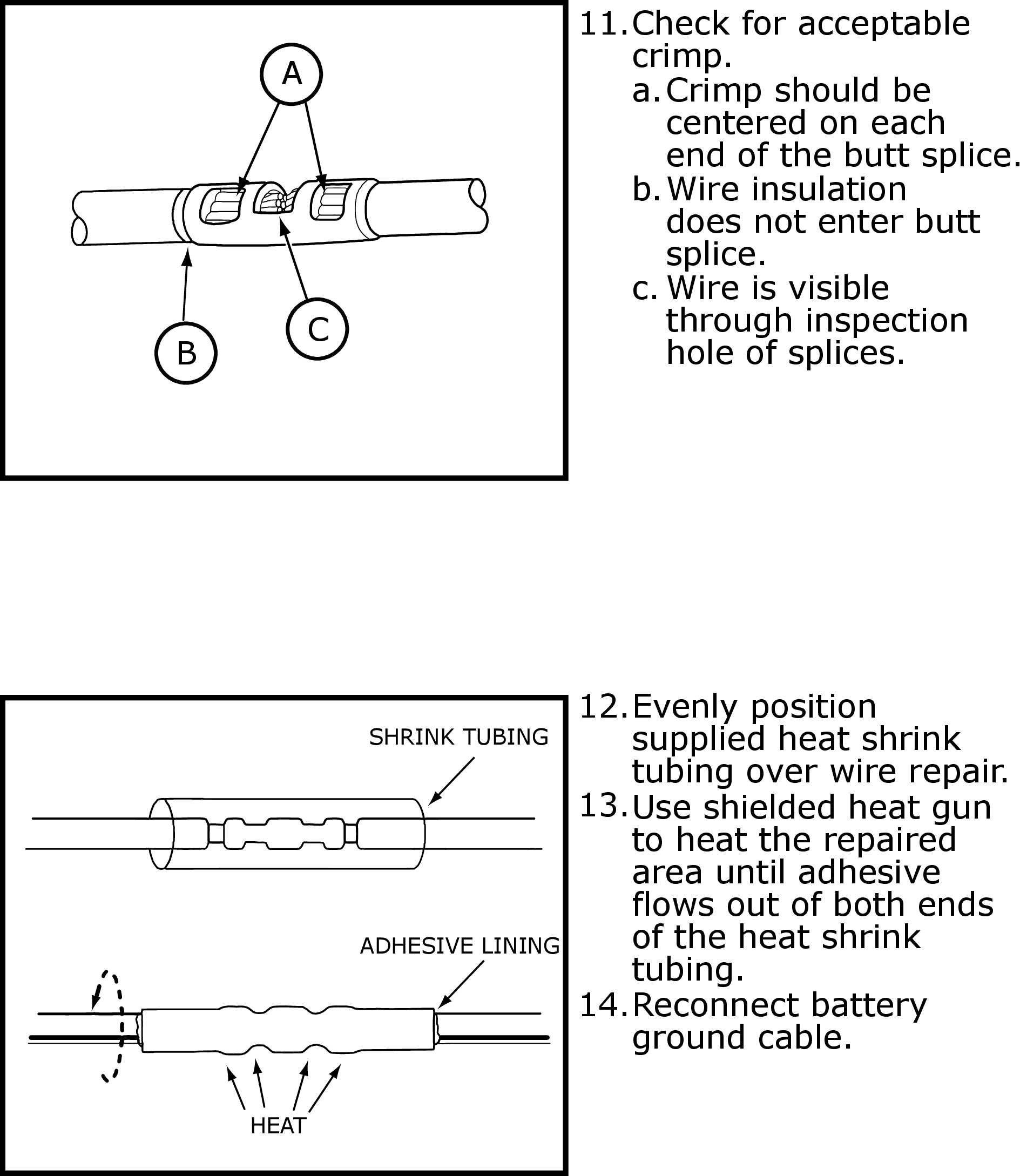

Courtesy of FORD MOTOR COMPANY

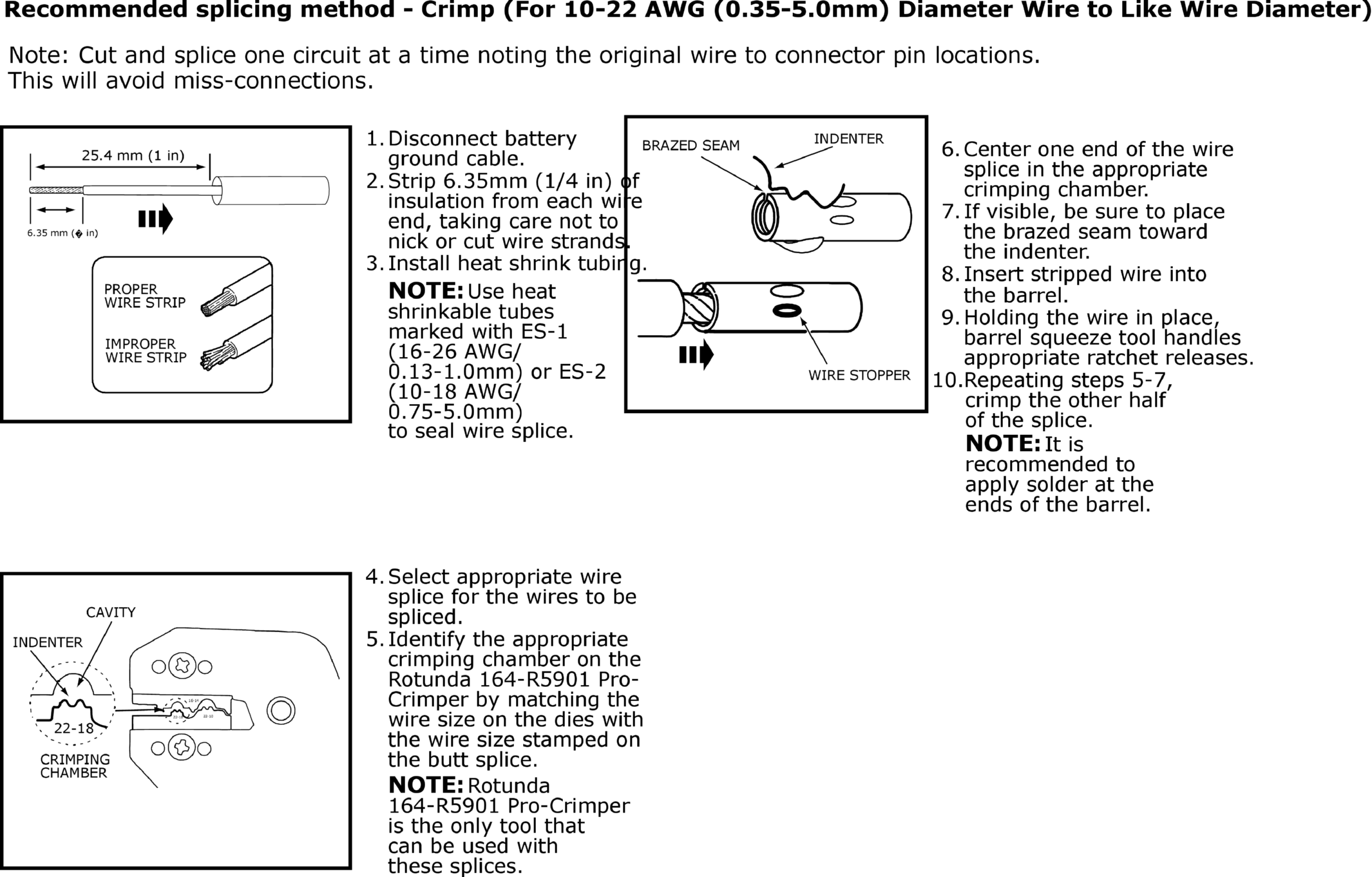

Courtesy of FORD MOTOR COMPANY

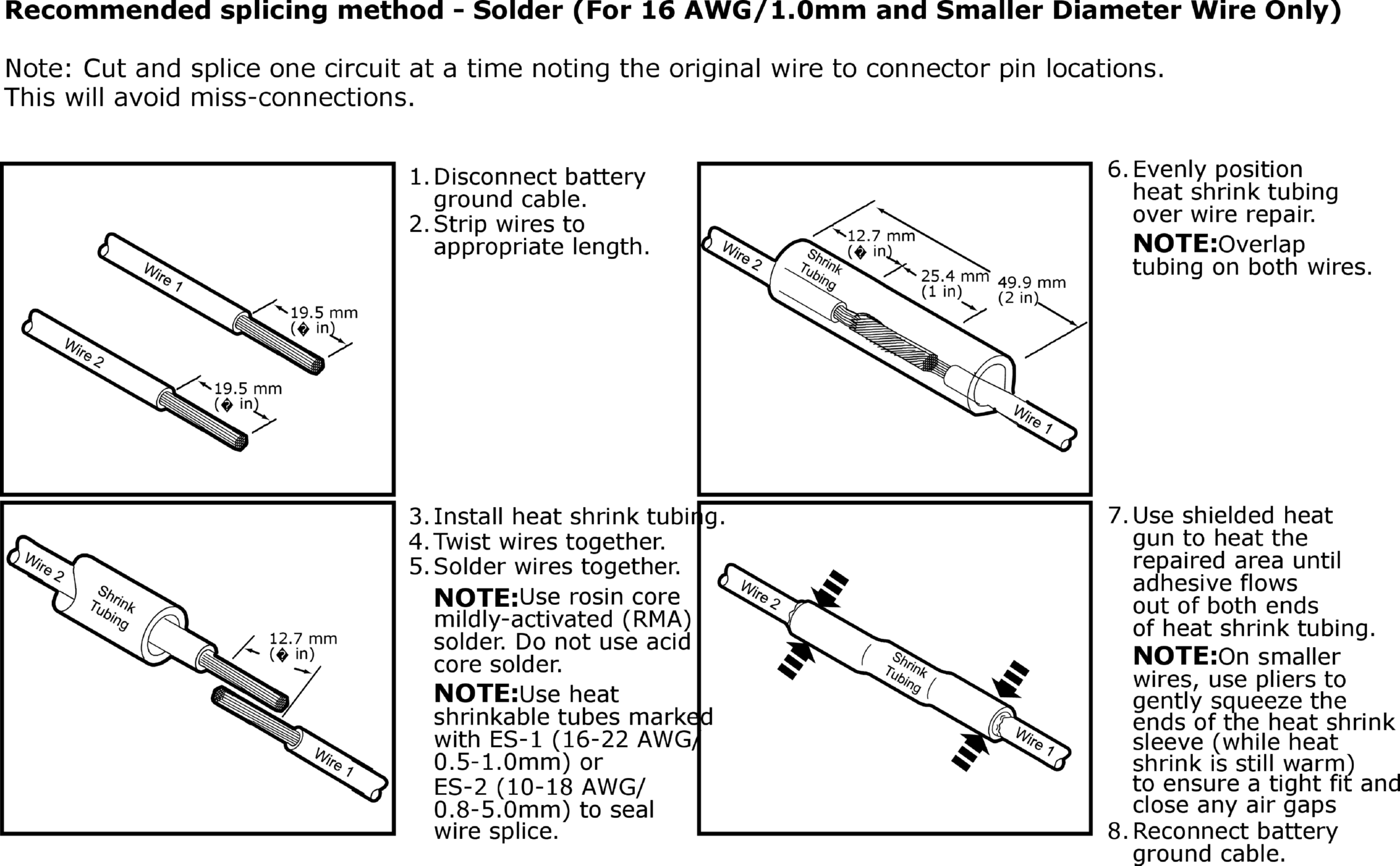

Courtesy of FORD MOTOR COMPANY

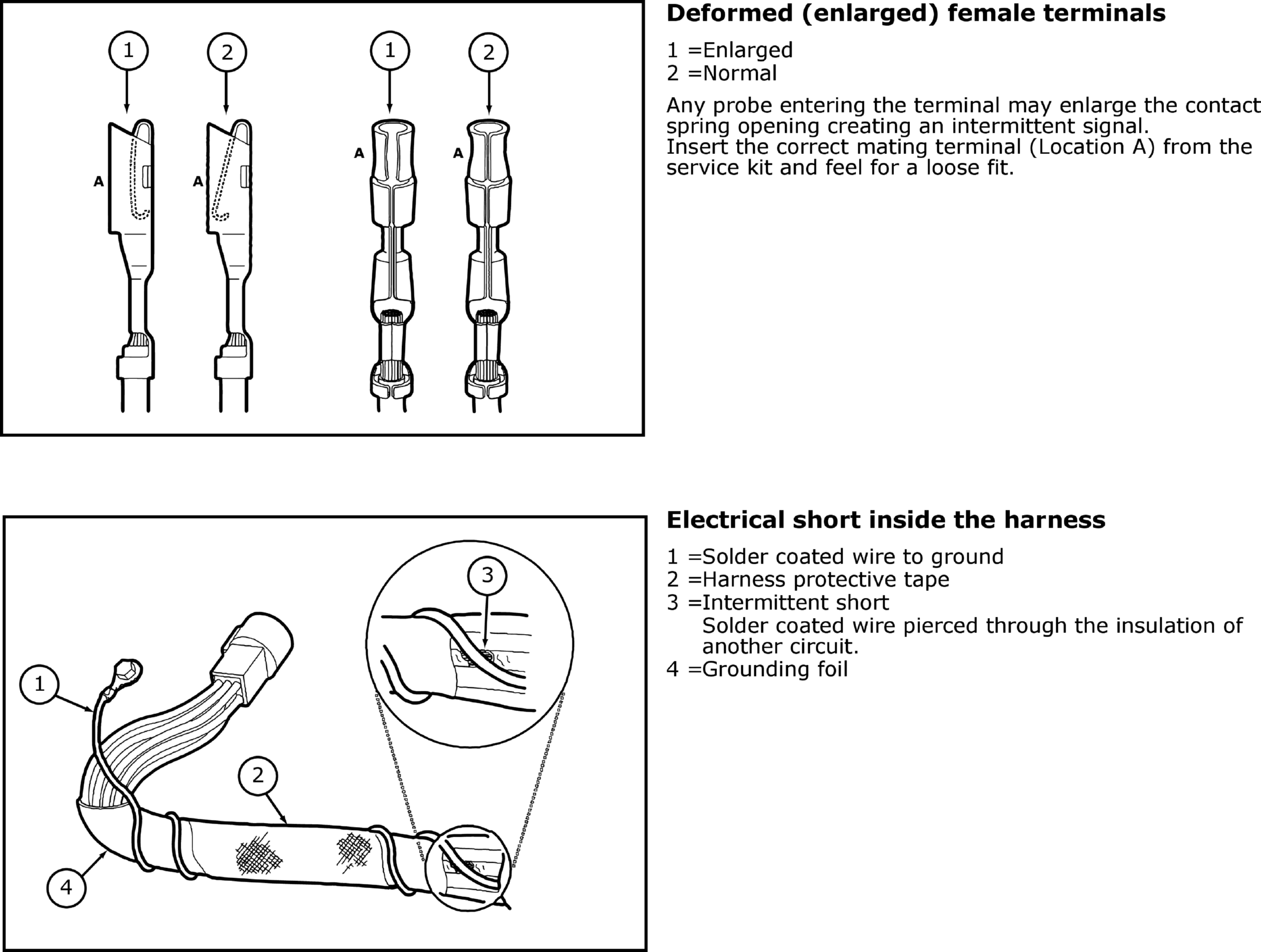

Courtesy of FORD MOTOR COMPANY

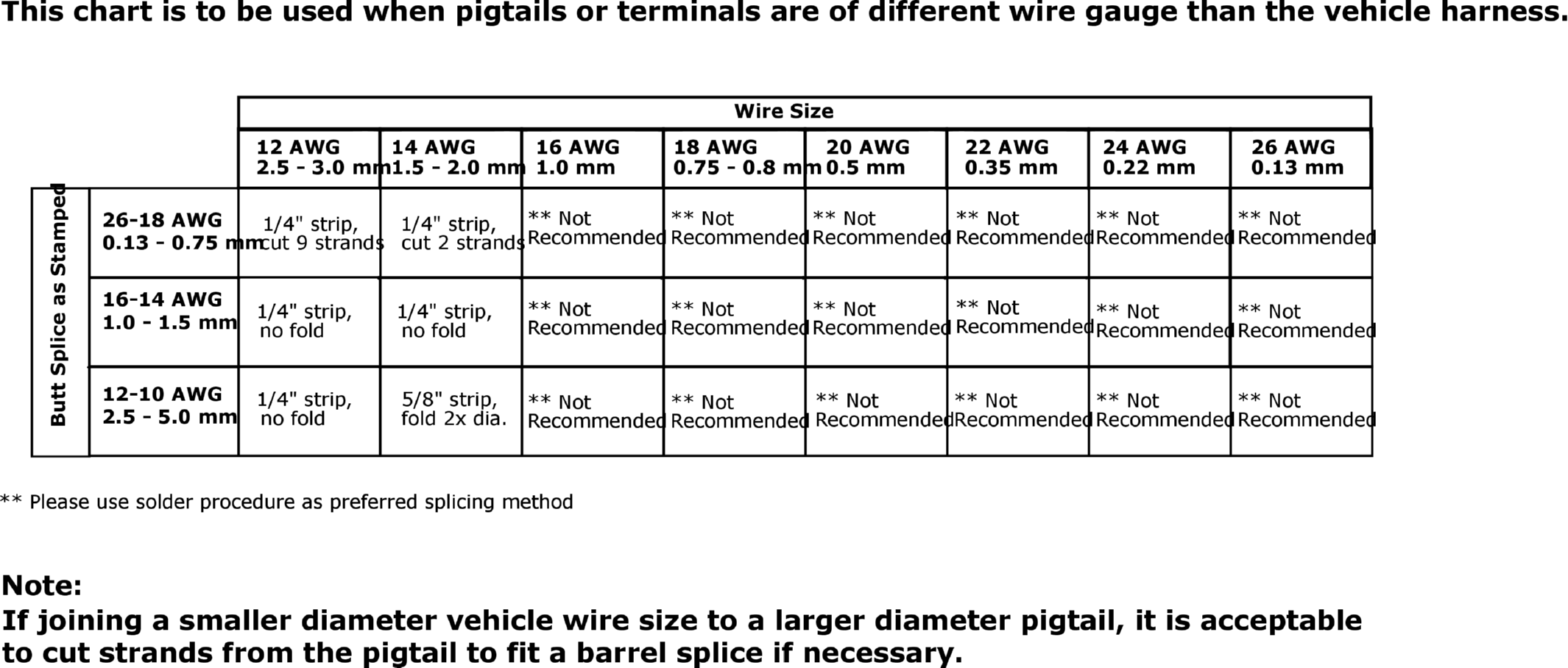

Courtesy of FORD MOTOR COMPANY

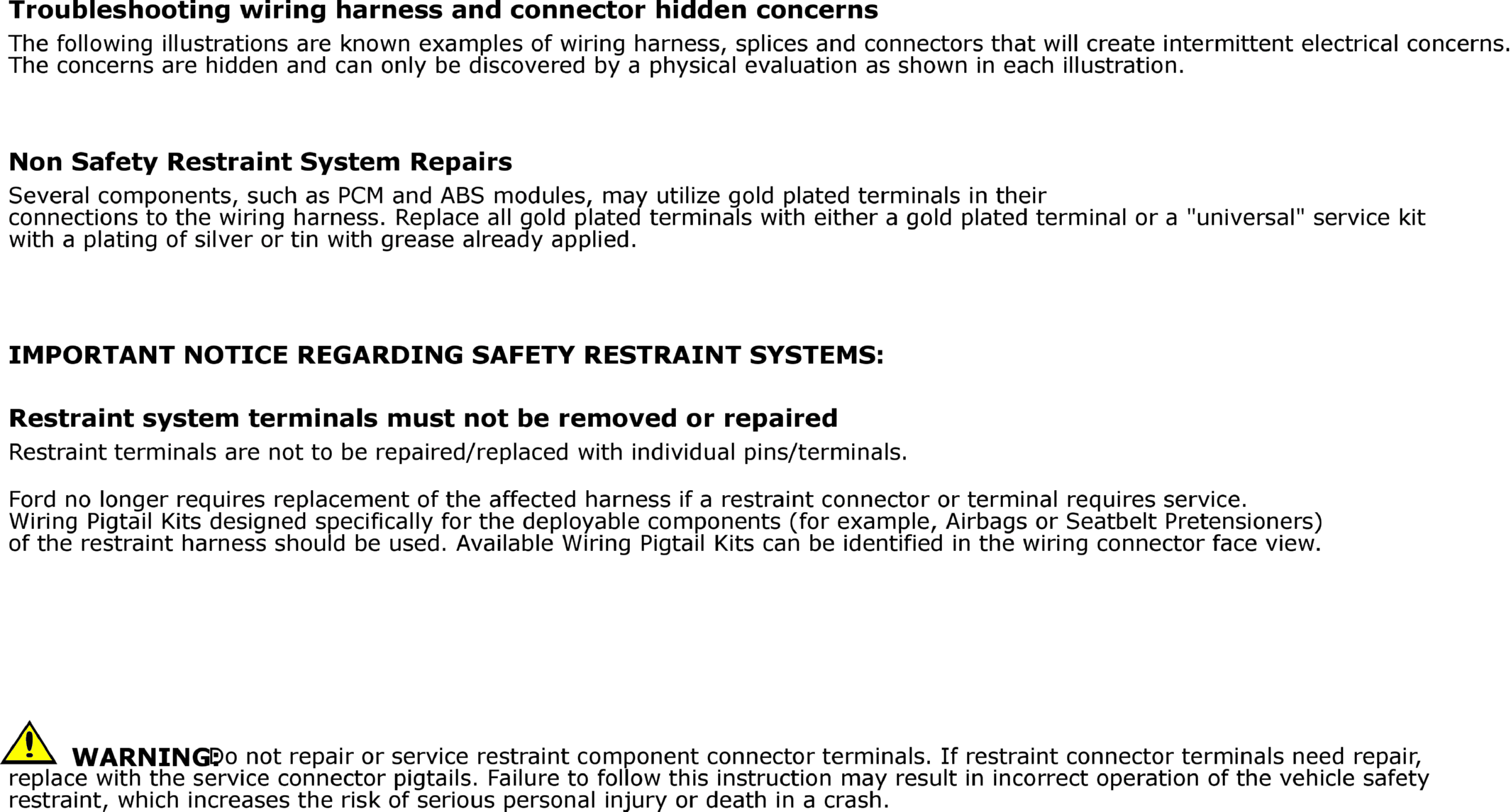

Courtesy of FORD MOTOR COMPANY

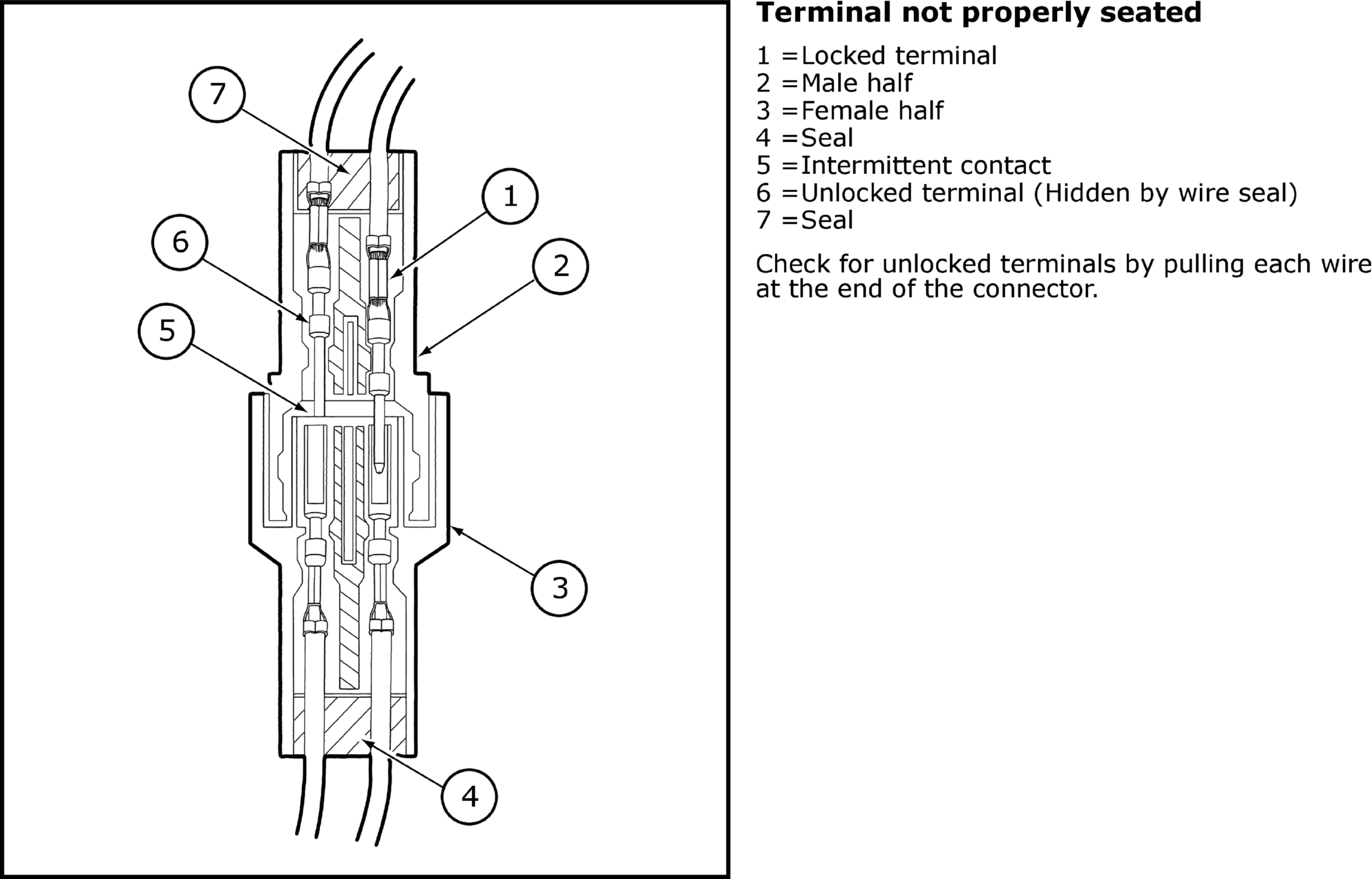

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
