Side Obstacle Detection (SOD) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

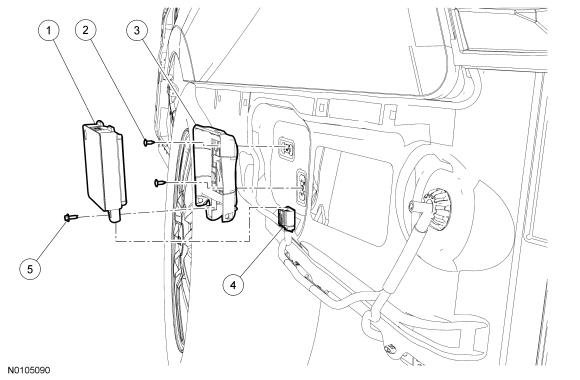

NOTE: Rear bumper cover removed for clarity.

NOTE: Left rear quarter panel shown, right side similar.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	14C689	Side Obstacle Detection Control Module - Left(SOD-L) /Side Obstacle Detection Control Module - Right(SOD-R)
2	W705247	SOD-L /SOD-R bracket screws (2 required)
3	14D189	SOD-L /SOD-R bracket
4	-	SOD-L /SOD-R electrical connector (part of 14A005)
5	W503901	SOD-L /SOD-R screw and washer
