Front Engine Sensor Locations - 3.5L Ti-VCT

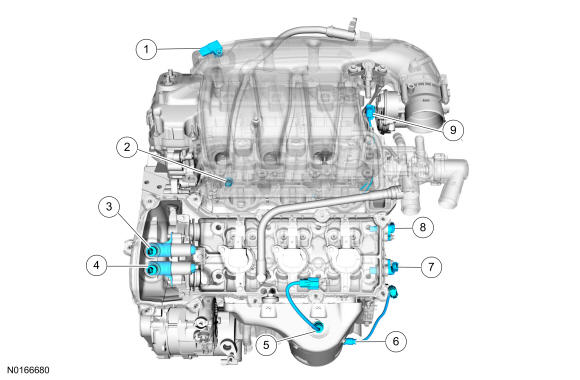

GFD134146Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 MAPT sensor -
2 CHT sensor -
3 LH intake VCT oil control solenoid -
4 LH exhaust VCT oil control solenoid -
5 LH HO2S -
6 LH CMS -
7 LH exhaust CMP sensor -
8 LH intake CMP sensor -
9 KS sensor -
