Component Testing: Relays

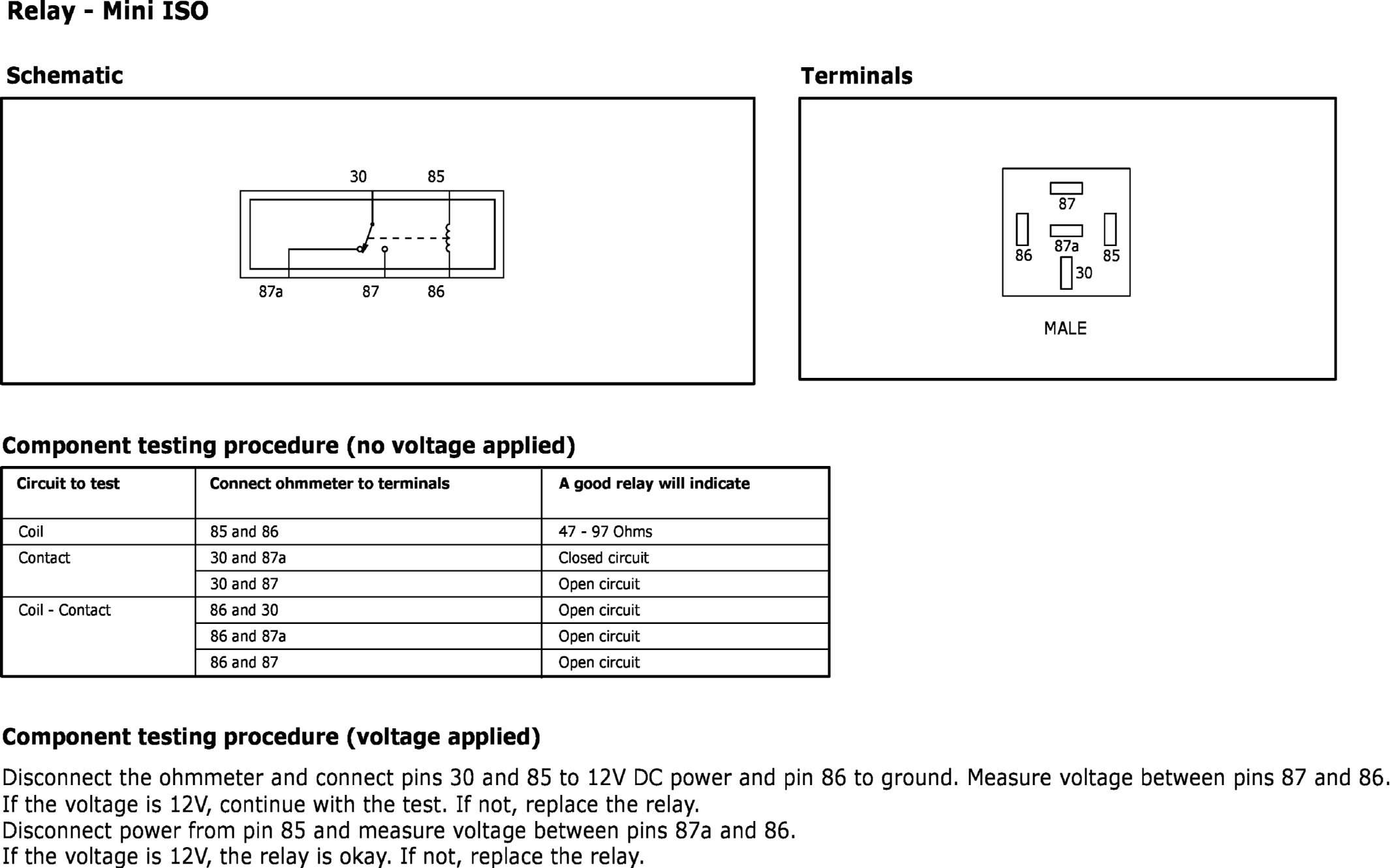

Fig 1: Relay - Mini ISO
GFDW58172Courtesy of FORD MOTOR COMPANY

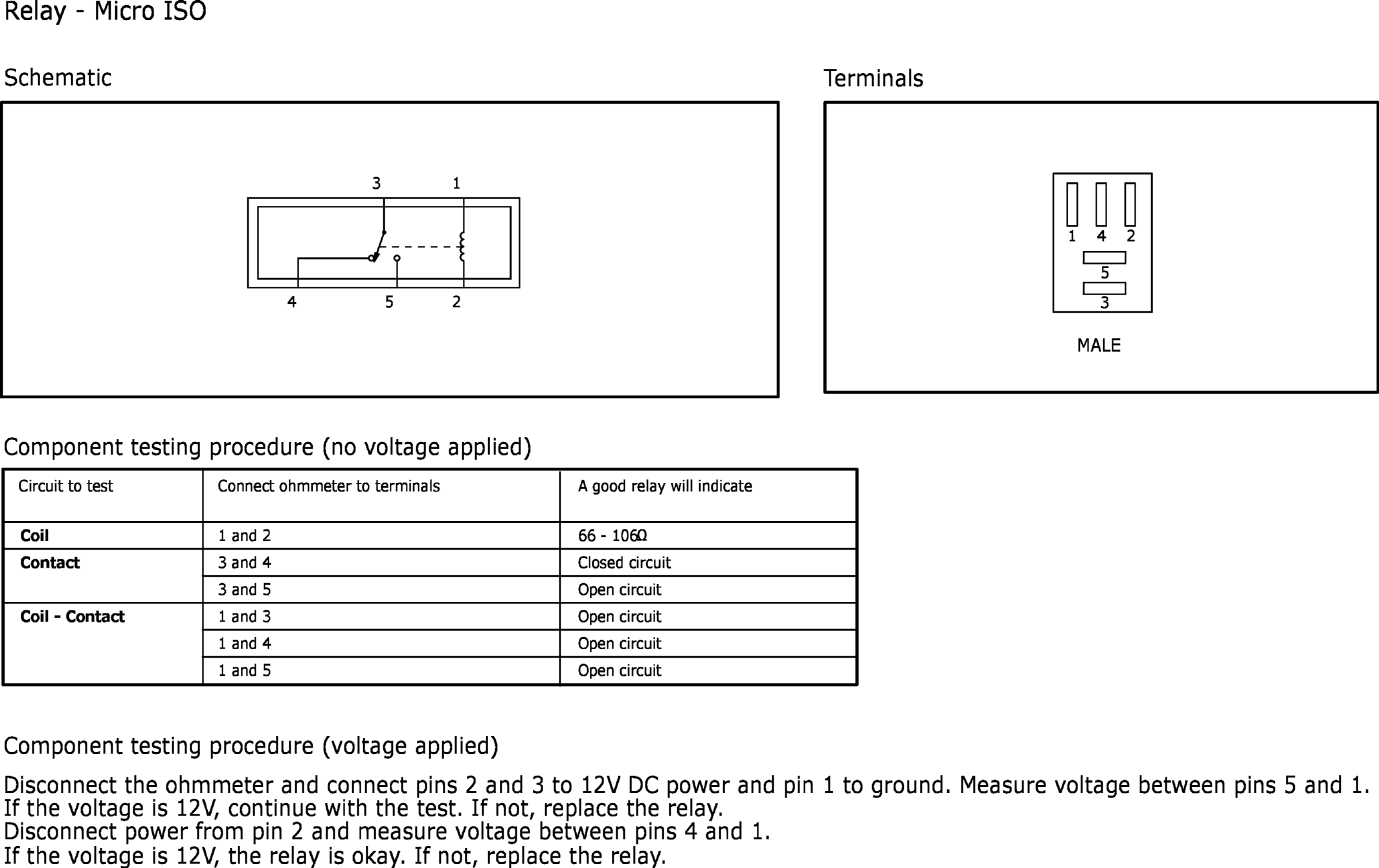

Fig 2: Relay - Micro ISO
GFDW58174Courtesy of FORD MOTOR COMPANY

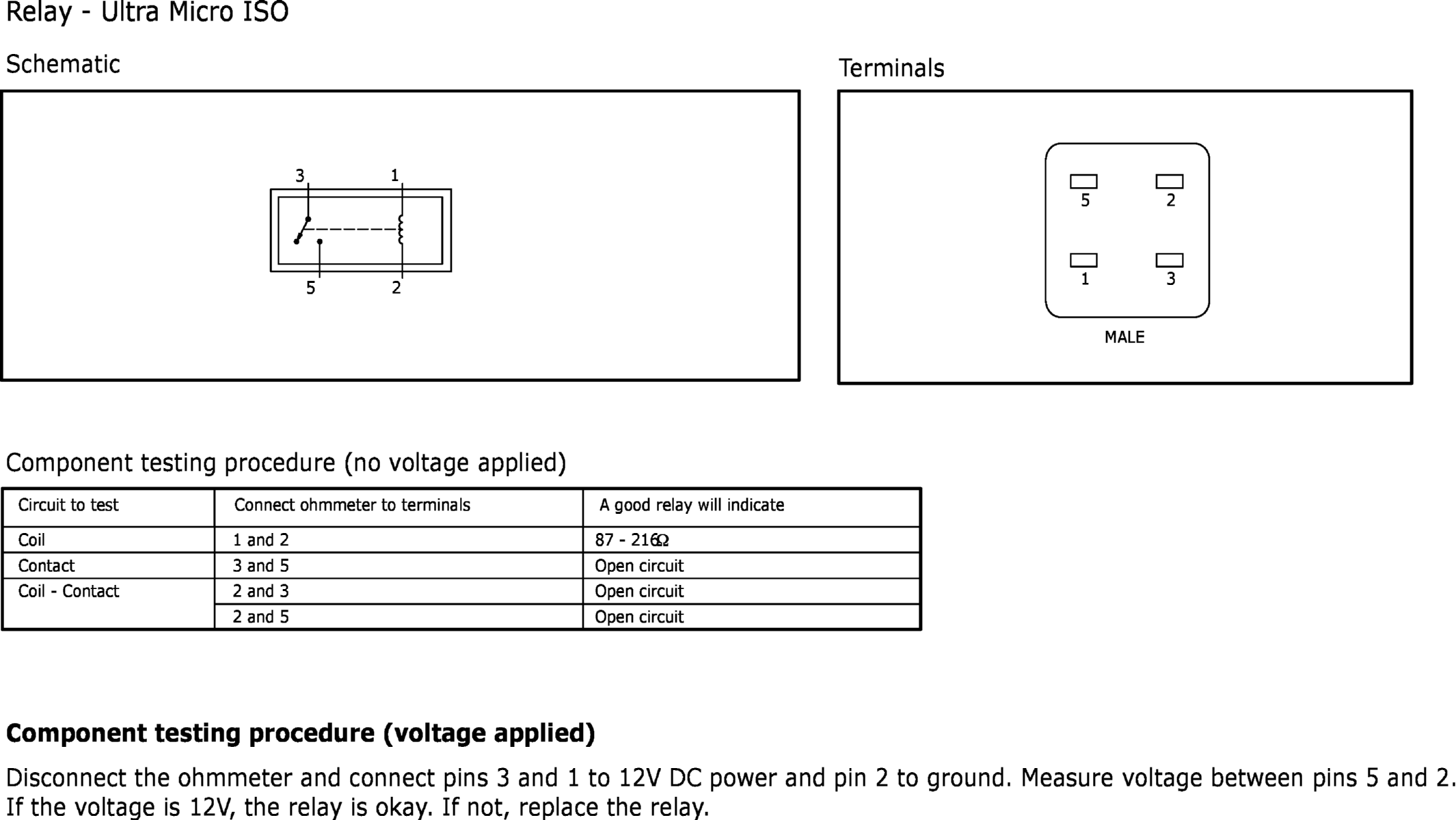

Fig 3: Relay - Ultra Micro ISO
GFDW58175Courtesy of FORD MOTOR COMPANY
