Roof Opening Panel Control Switch

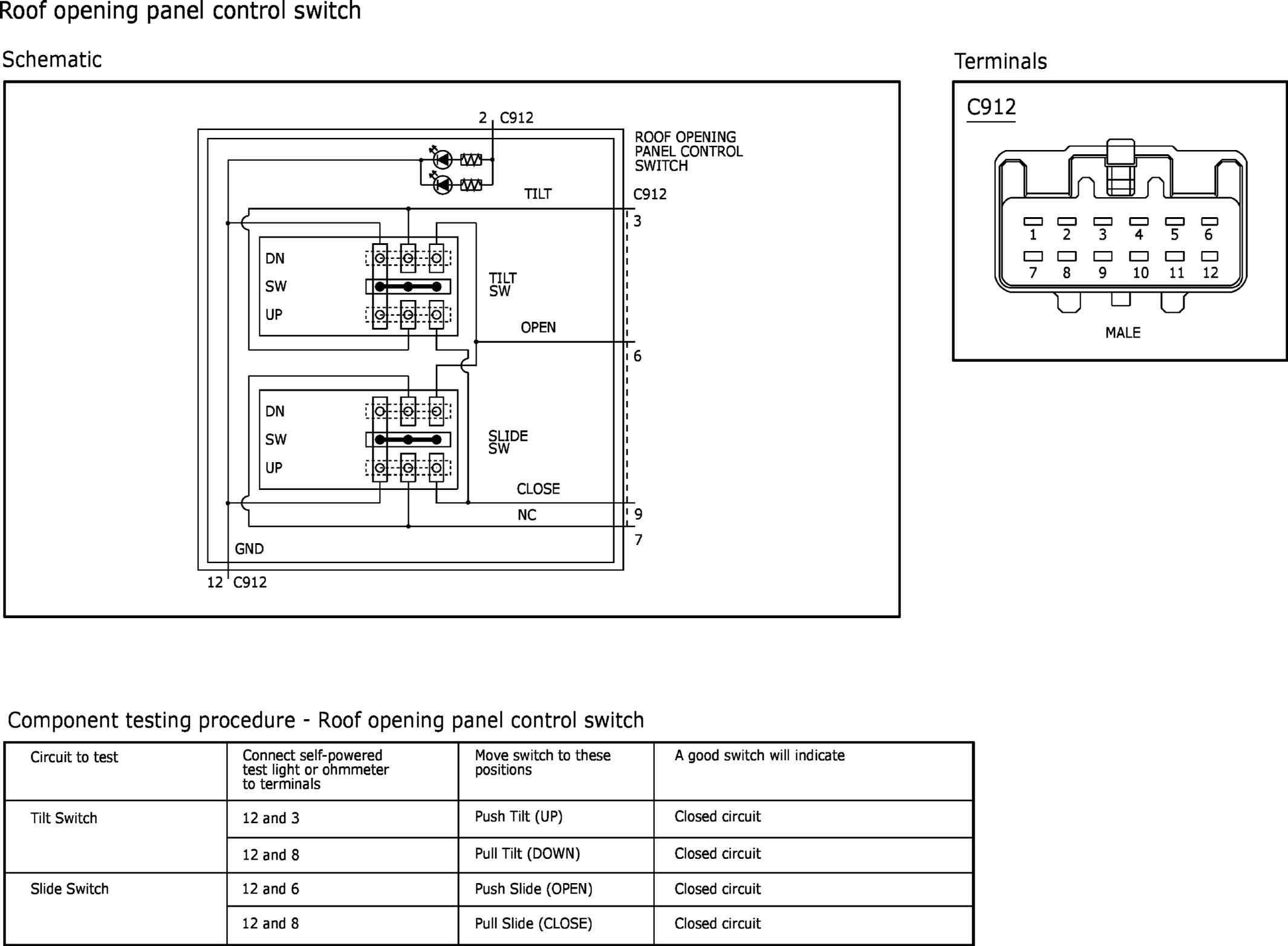

Fig 1: Roof Opening Panel Control Switch
GFDW58180Courtesy of FORD MOTOR COMPANY
