Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

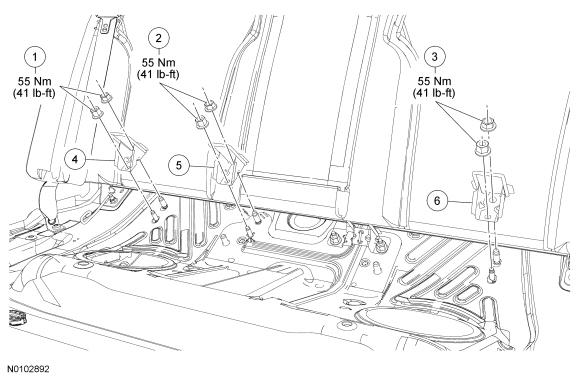

Fig 1: Child Safety Seat Tether Anchor - LATCH With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	RH lower anchors and tethers for children nuts
2	-	Center lower anchors and tethers for children nuts
3	-	LH lower anchors and tethers for children nuts
4	-	RH lower anchors and tethers for children
5	-	Center lower anchors and tethers for children
6	-	LH lower anchors and tethers for children
