Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Remove the wheel and tire. Refer to: Wheel and Tire .

1. 2.



   1. 1.

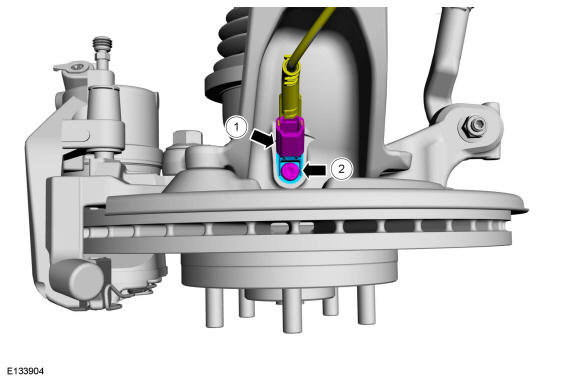

      Disconnect the front wheel speed sensor electrical connector.

   1. 2.

      Remove the bolt and the front wheel speed sensor.

      Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
