In-Vehicle Temperature/Humidity Sensor
In-Vehicle Temperature/Humidity Sensor

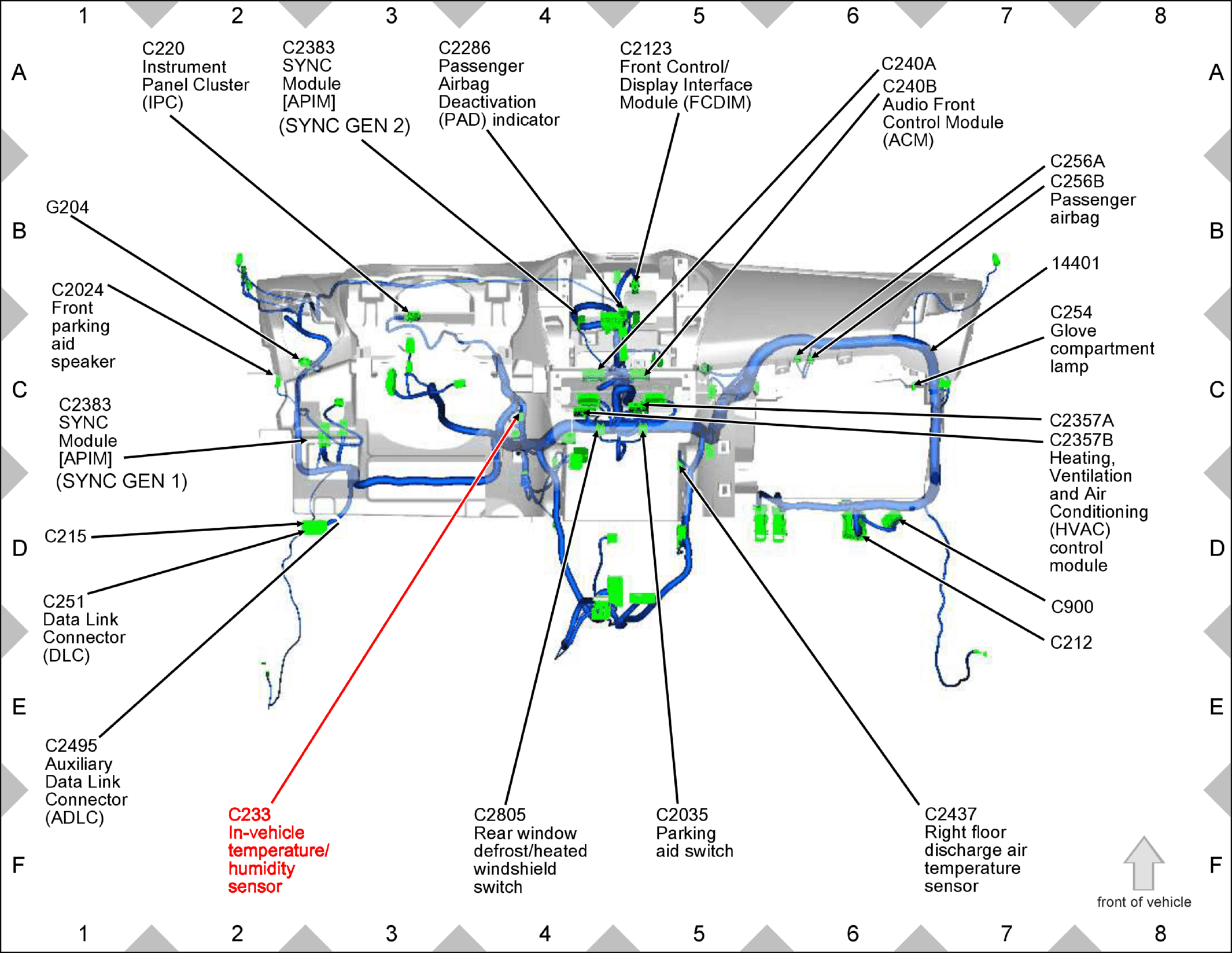

Fig 1: In-Vehicle Temperature/Humidity Sensor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
