Driver Seat Track: Installation

1. 1.

   To install, reverse the removal procedure.

1. 2.

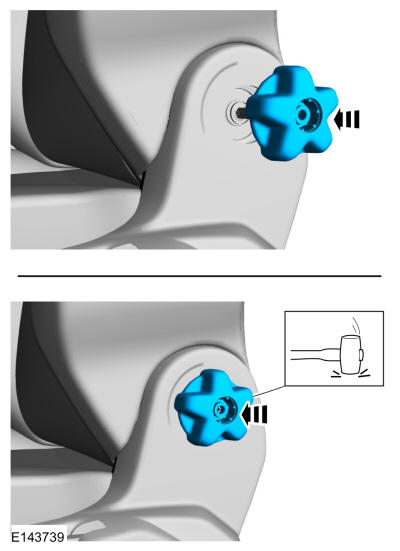

   Using rubber mallet, install the recliner handle knob. Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY

1. 3.

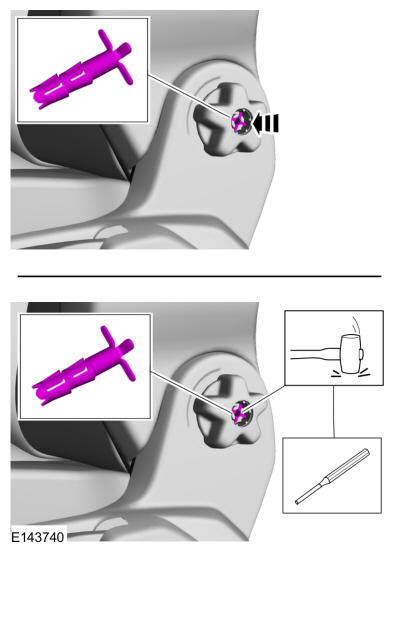

   Using rubber mallet, install the retaining clip. Use the General Equipment: Punch Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY

1. 4.

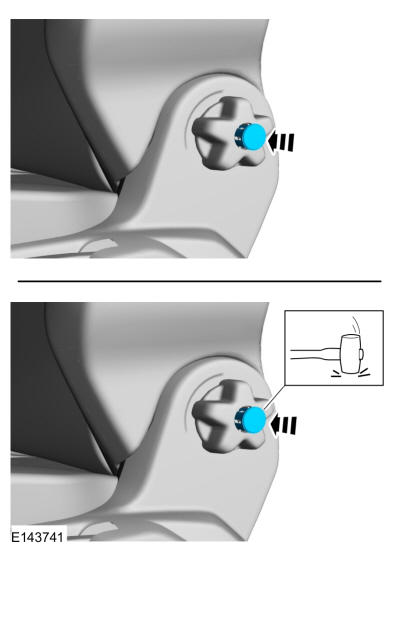

   Using rubber mallet, install the lumbar handle knob cap. Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY
