Front Head Restraint Guide Sleeve
›
Removal
Front Head Restraint Guide Sleeve: Removal
1.
Release the locking tabs and remove the head restraint.
Courtesy of FORD MOTOR COMPANY
2.

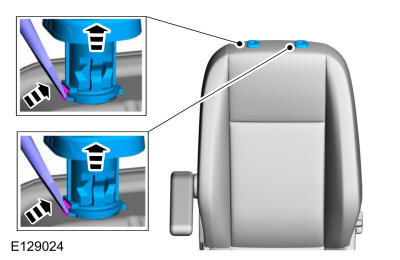

Using flat headed screw driver, release the locking tabs and remove the headrest restraint guide sleeves.
Courtesy of FORD MOTOR COMPANY
