Hydraulic Control Unit (HCU): Installation

1. 1.

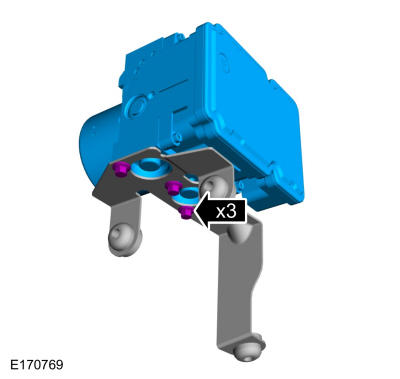

   Install the HCU and the 3 HCU bracket bolts.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 2.

   Bleed the brake system. Refer to: Brake System Pressure Bleeding .

1. 3.

   If a new HCU/ ABS module was installed, using a diagnostic scan tool, complete the PMI process for the ABS module following the on-screen instructions.
