Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

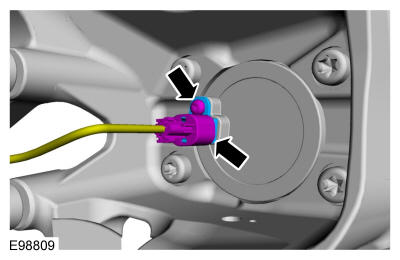

- Disconnect the rear wheel speed sensor electrical connector.
- Remove the bolt and the rear wheel speed sensor.
  Torque: 44 lb.in (5 Nm)

GFD148377

Courtesy of FORD MOTOR COMPANY

3.

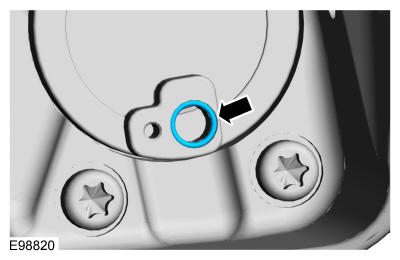

NOTE: The O-ring seal is to be reused unless damaged.

Remove the O-ring seal.

GFD148378

Courtesy of FORD MOTOR COMPANY
