In-Vehicle Crossbeam: Installation

1.

To install, reverse the removal procedure.

2.

NOTE: Make sure that the tolerance absorbers turn without resistance.

NOTE: In-vehicle cross beam shown without instrument panel for clarity.

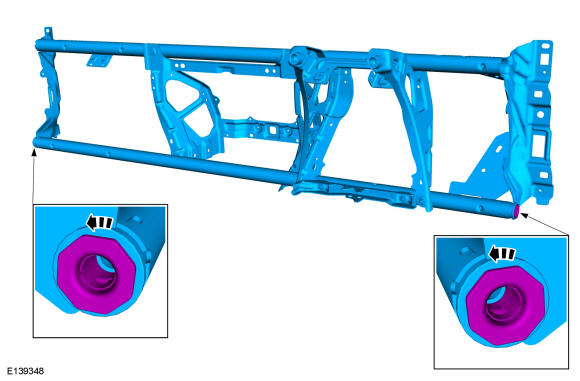

Turn on both sides the tolerance absorber to the stop and turn back a half turn.

GFD151498

Courtesy of FORD MOTOR COMPANY

3.

Check on both sides that the tolerance absorber contacts the A-pillar.

GFD151499

Courtesy of FORD MOTOR COMPANY
