Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

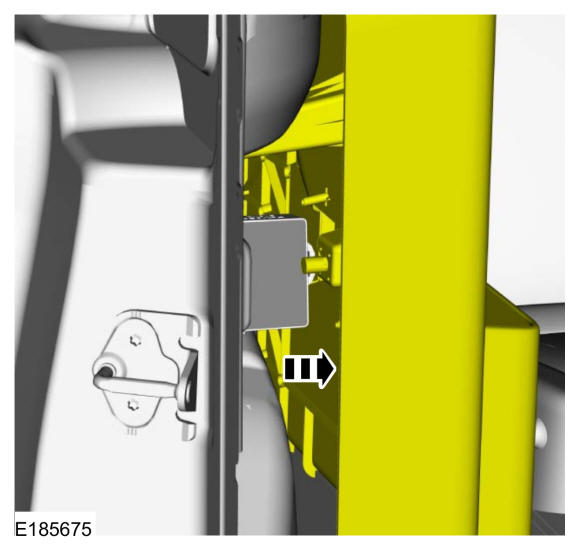

  Position aside the RH load space trim panel.

Courtesy of FORD MOTOR COMPANY

• 2.



  • 1.

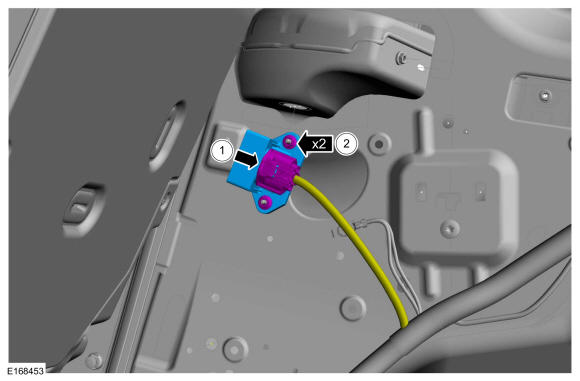

    Disconnect the FPDM electrical connector.

  • 2.

    Remove the FPDM retaining nuts and the FPDM.

    Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
