Climate Control Assembly: Removal

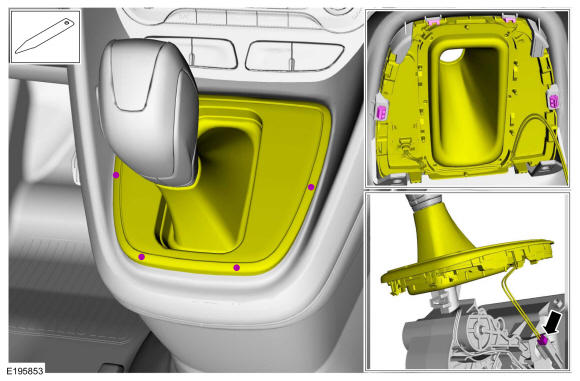

  1. 1.

    Release the clips and position the selector lever bezel aside.
    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
GFD150549Courtesy of FORD MOTOR COMPANY

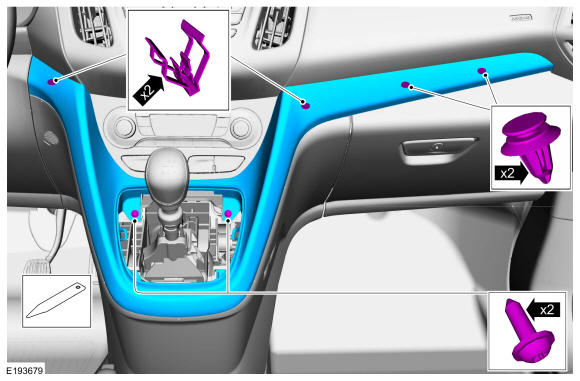

  1. 2.

    Remove the retainers, release the clips and remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover
GFD150550Courtesy of FORD MOTOR COMPANY

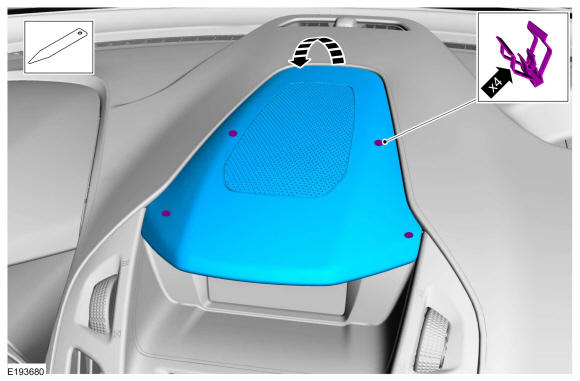

  1. 3.

    Release the clips and remove the instrument panel center upper trim panel. Use the General Equipment: Interior Trim Remover
GFD150551Courtesy of FORD MOTOR COMPANY

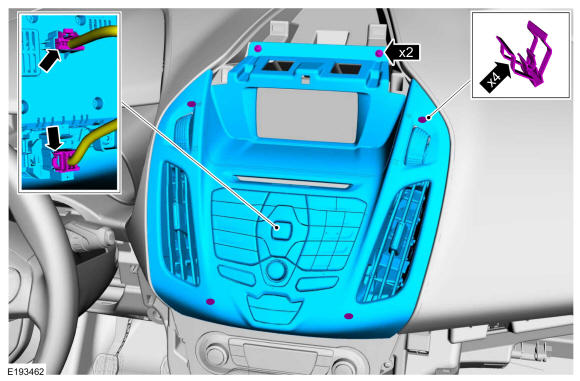

  1. 4.

    Remove the retainers, release the clips and remove the FCIM.
    • Disconnect the electrical connectors.
GFD150552Courtesy of FORD MOTOR COMPANY

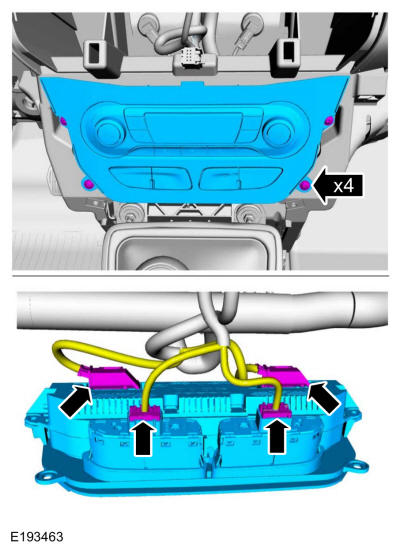

  1. 5.

    Remove the retainers and the climate control assembly.
    • Disconnect the electrical connectors.
GFD150553Courtesy of FORD MOTOR COMPANY

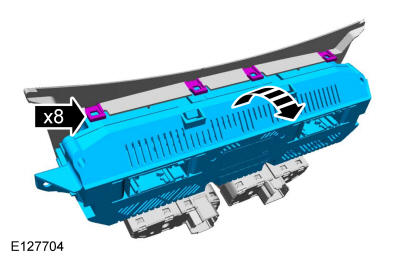

  1. 6.

    NOTE: This step is only necessary when installing a new component.

    Release the retaining clips and remove the HVAC control module.

GFD150554Courtesy of FORD MOTOR COMPANY
