Driver Door Window Control Switch (Without Door Modules 4-Way)

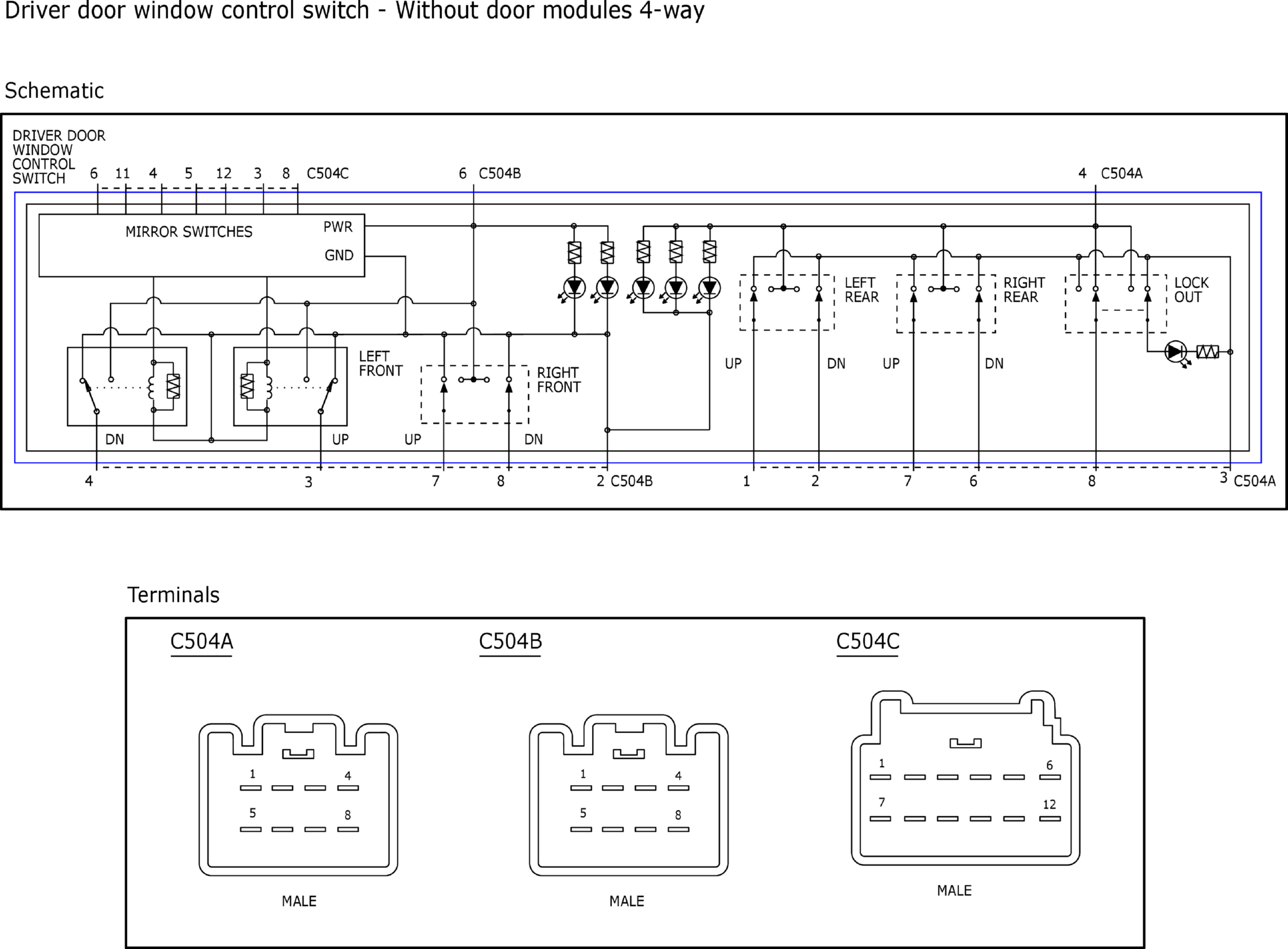

Fig 1: Driver Door Window Control Switch (Without Door Modules 4-Way) (1 of 2)
GFDW65632Courtesy of FORD MOTOR COMPANY

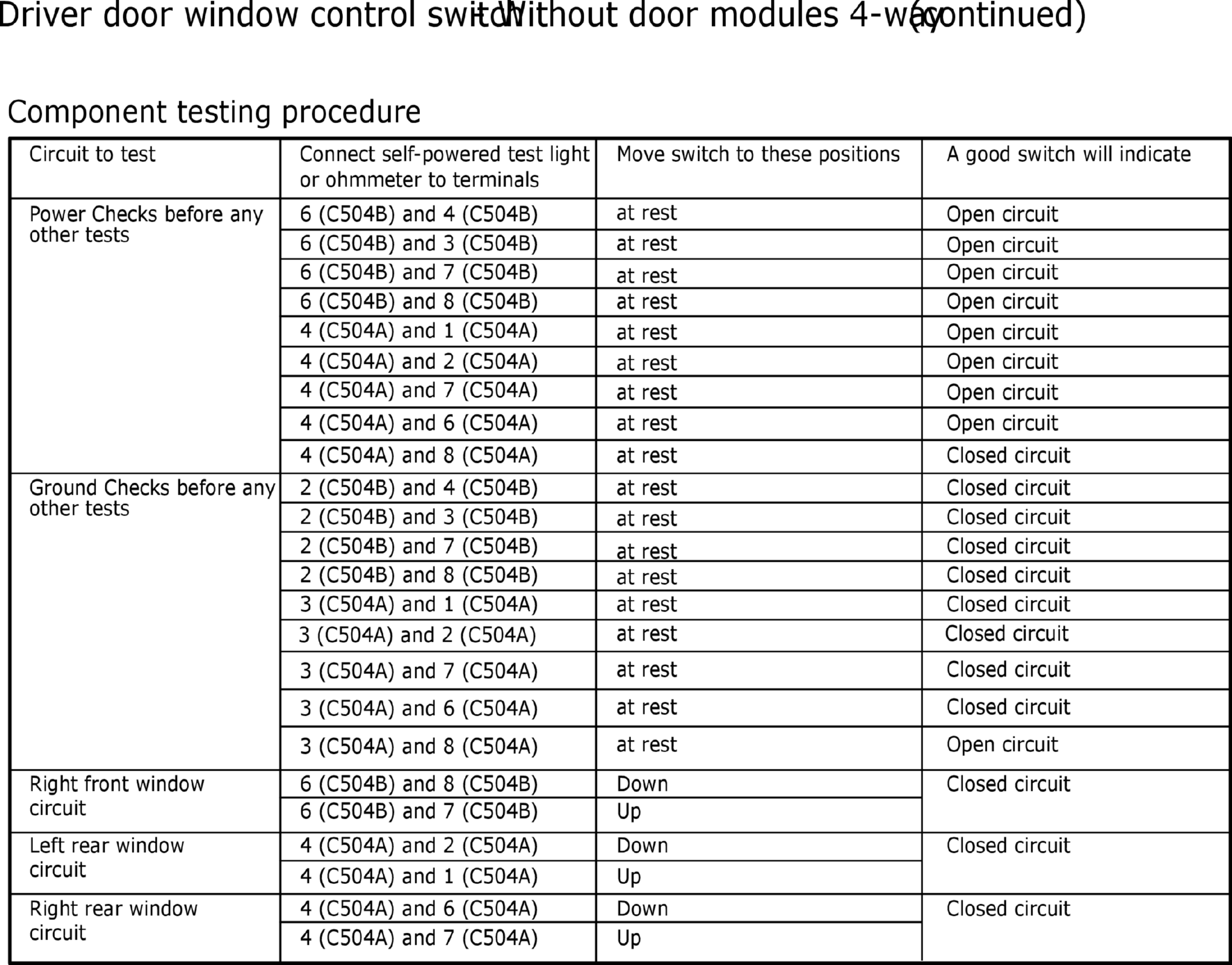

Fig 2: Driver Door Window Control Switch (Without Door Modules 4-Way) (2 of 2)
GFDW65633Courtesy of FORD MOTOR COMPANY
