Component Testing: Relays

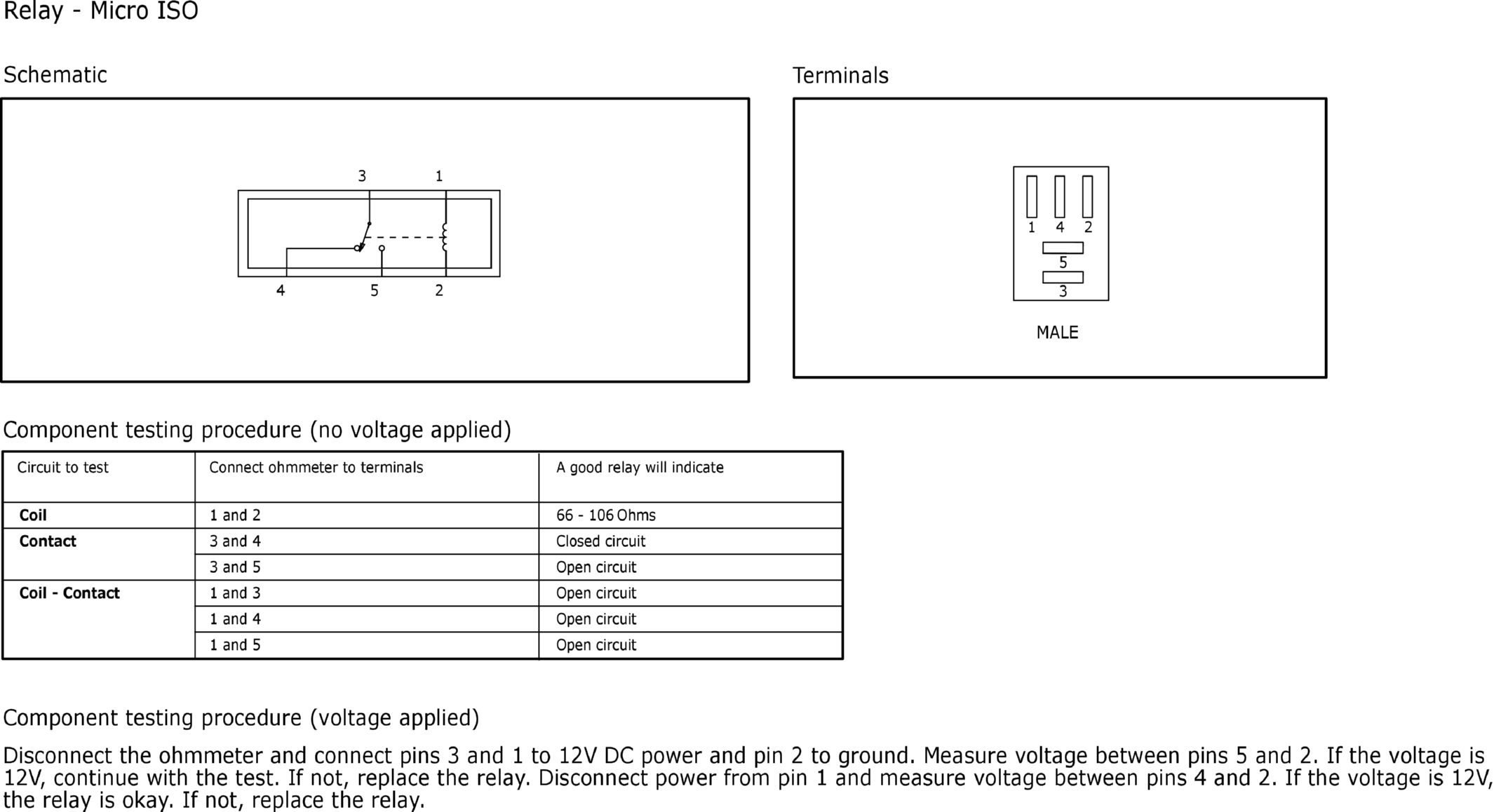

Fig 1: Relay - Micro ISO
GFDW65627Courtesy of FORD MOTOR COMPANY

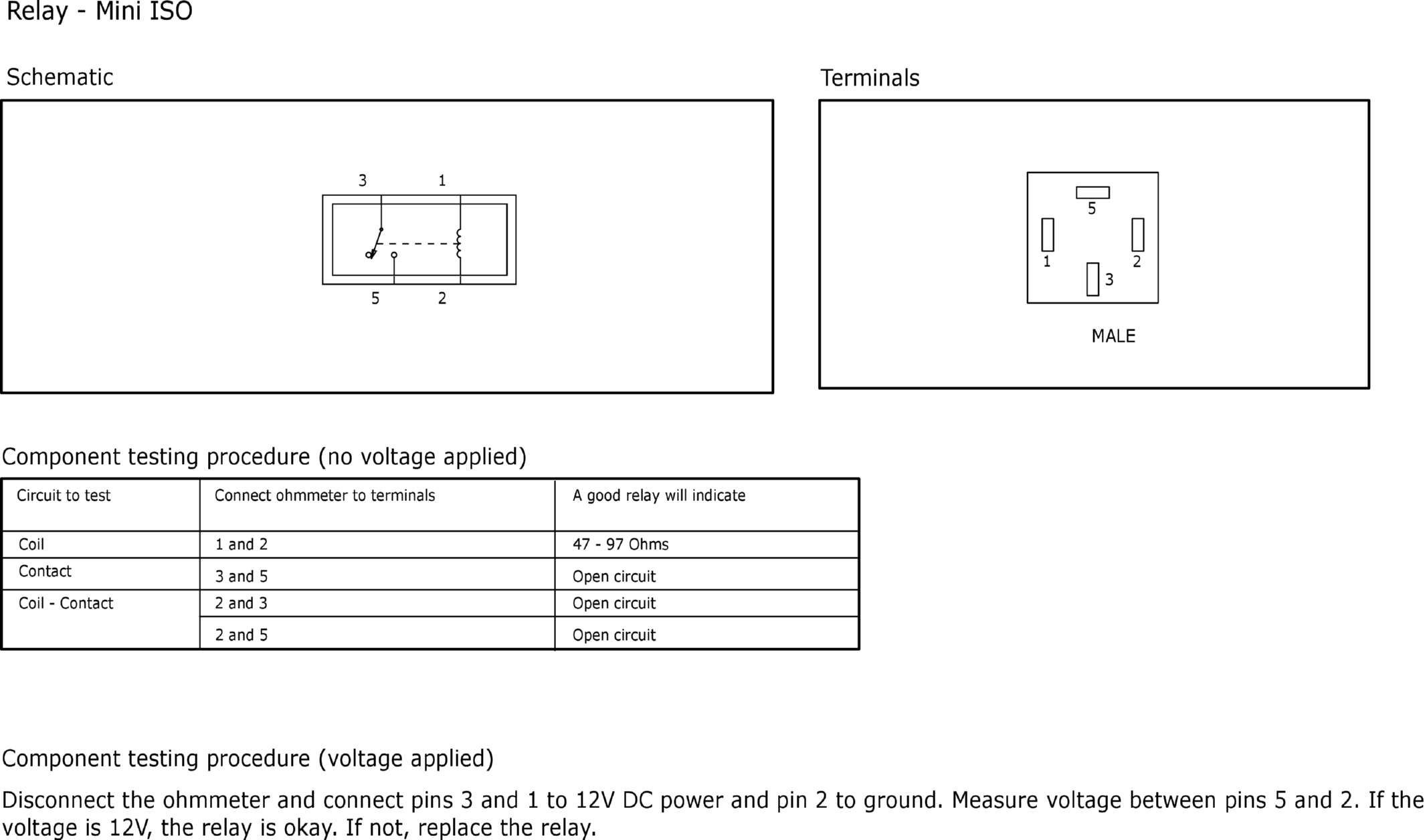

Fig 2: Relay - Mini ISO
GFDW65628Courtesy of FORD MOTOR COMPANY

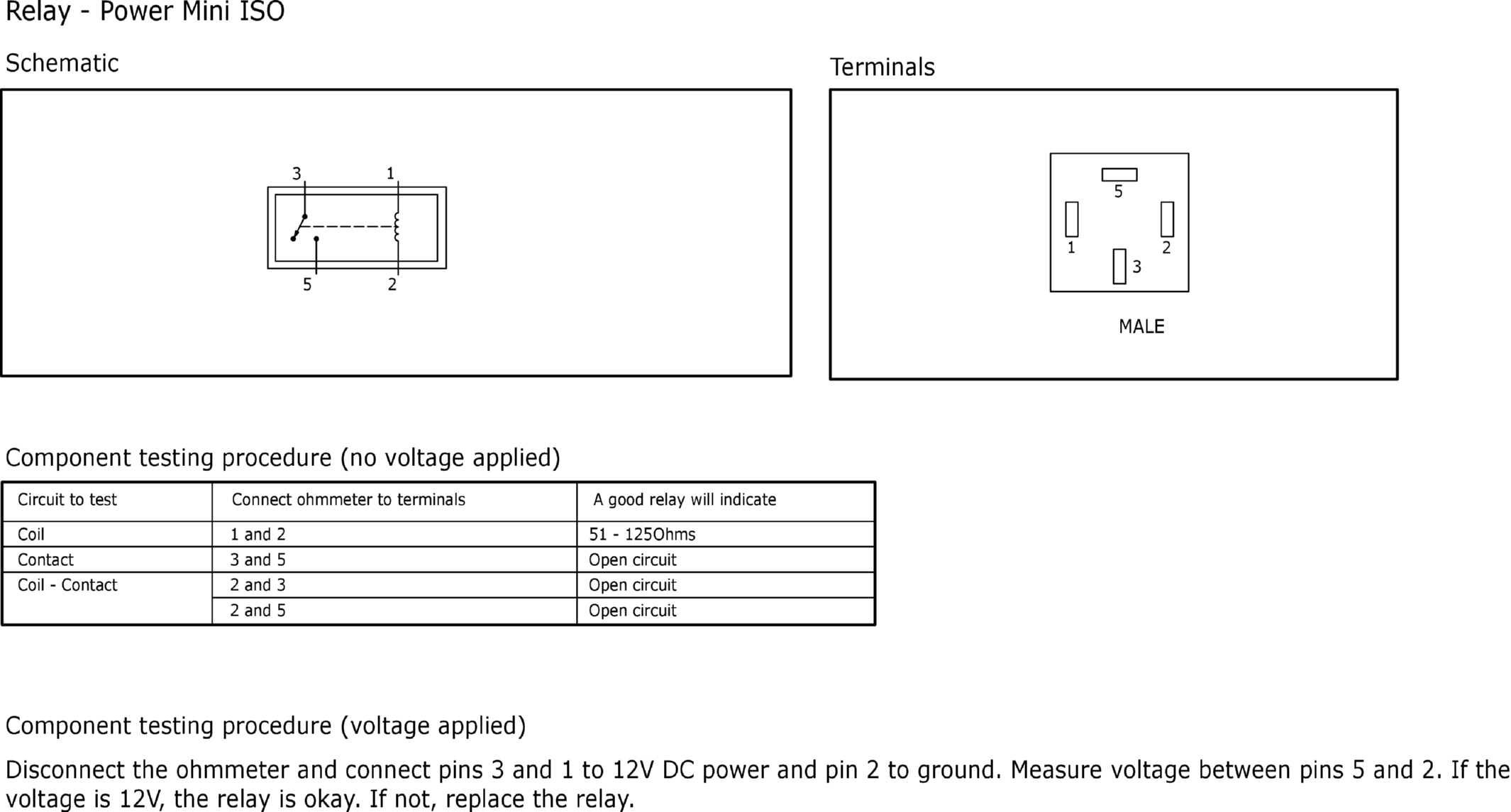

Fig 3: Relay - Power Mini ISO
GFDW65629Courtesy of FORD MOTOR COMPANY
