Window Control Switch (With Door Modules)

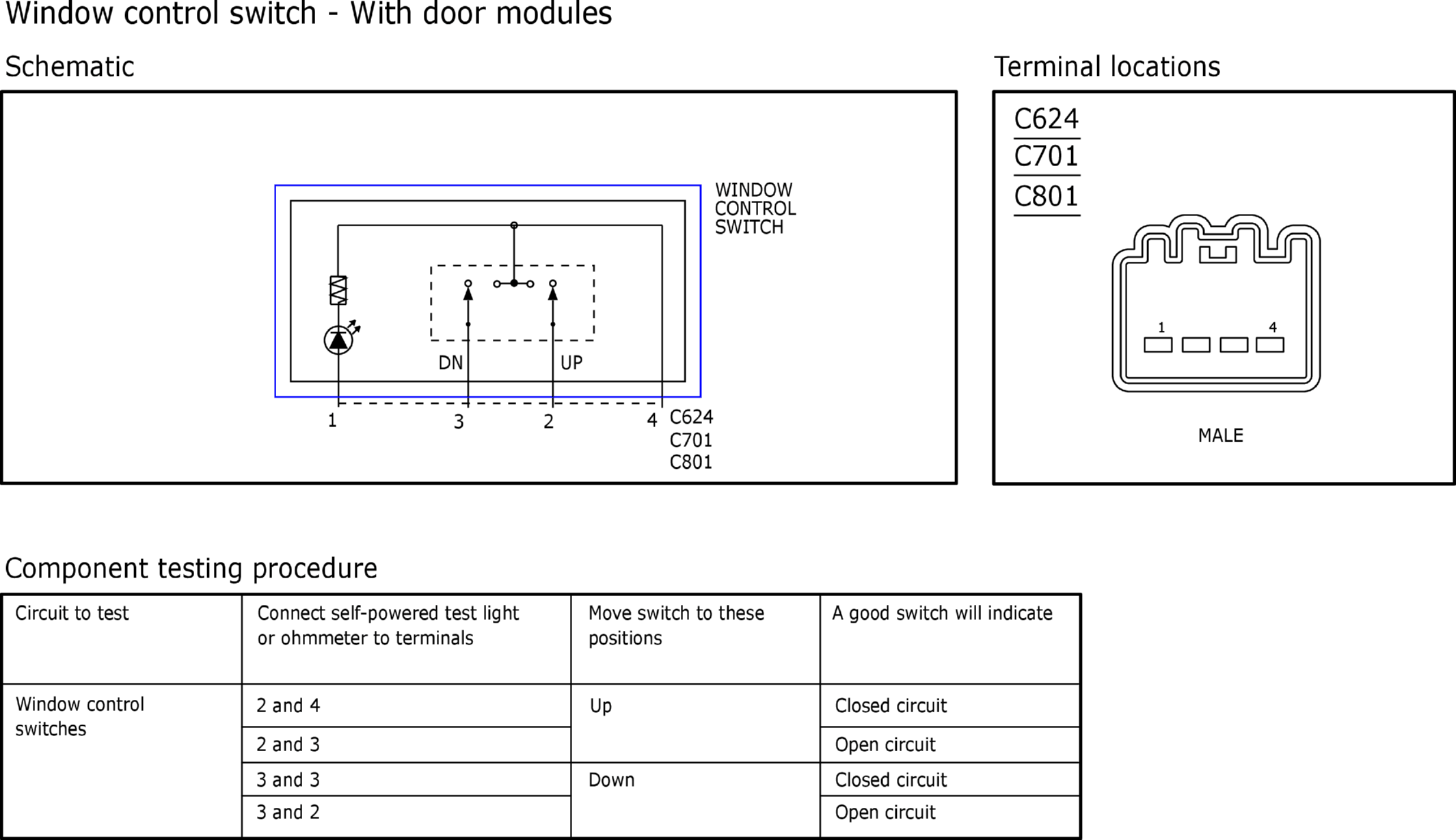

Fig 1: Window Control Switch (With Door Modules)
GFDW65635Courtesy of FORD MOTOR COMPANY
