Window Control Switch (Without Door Modules)

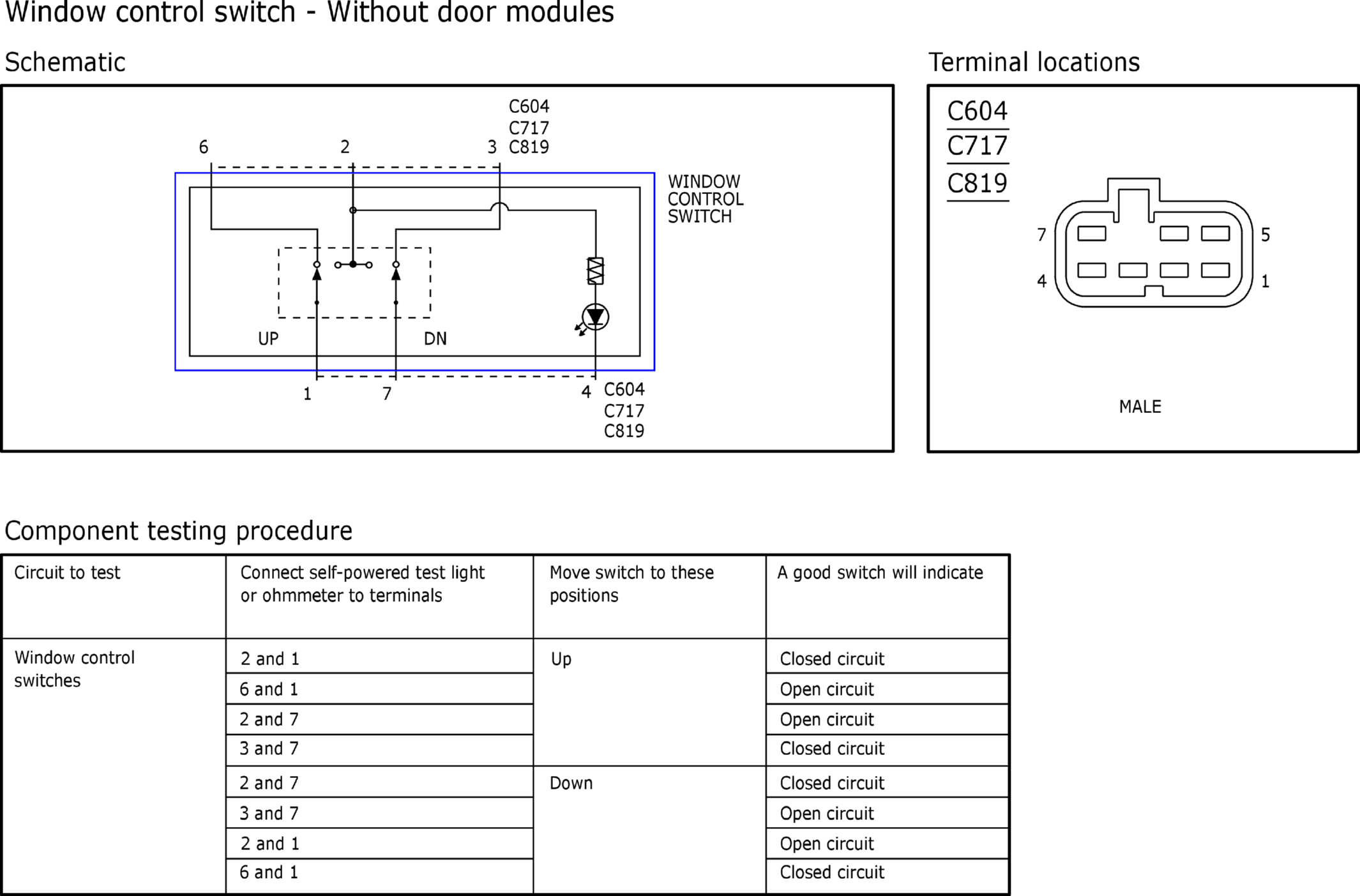

Fig 1: Window Control Switch (Without Door Modules)
GFDW65634Courtesy of FORD MOTOR COMPANY
