Power Distribution/BCM

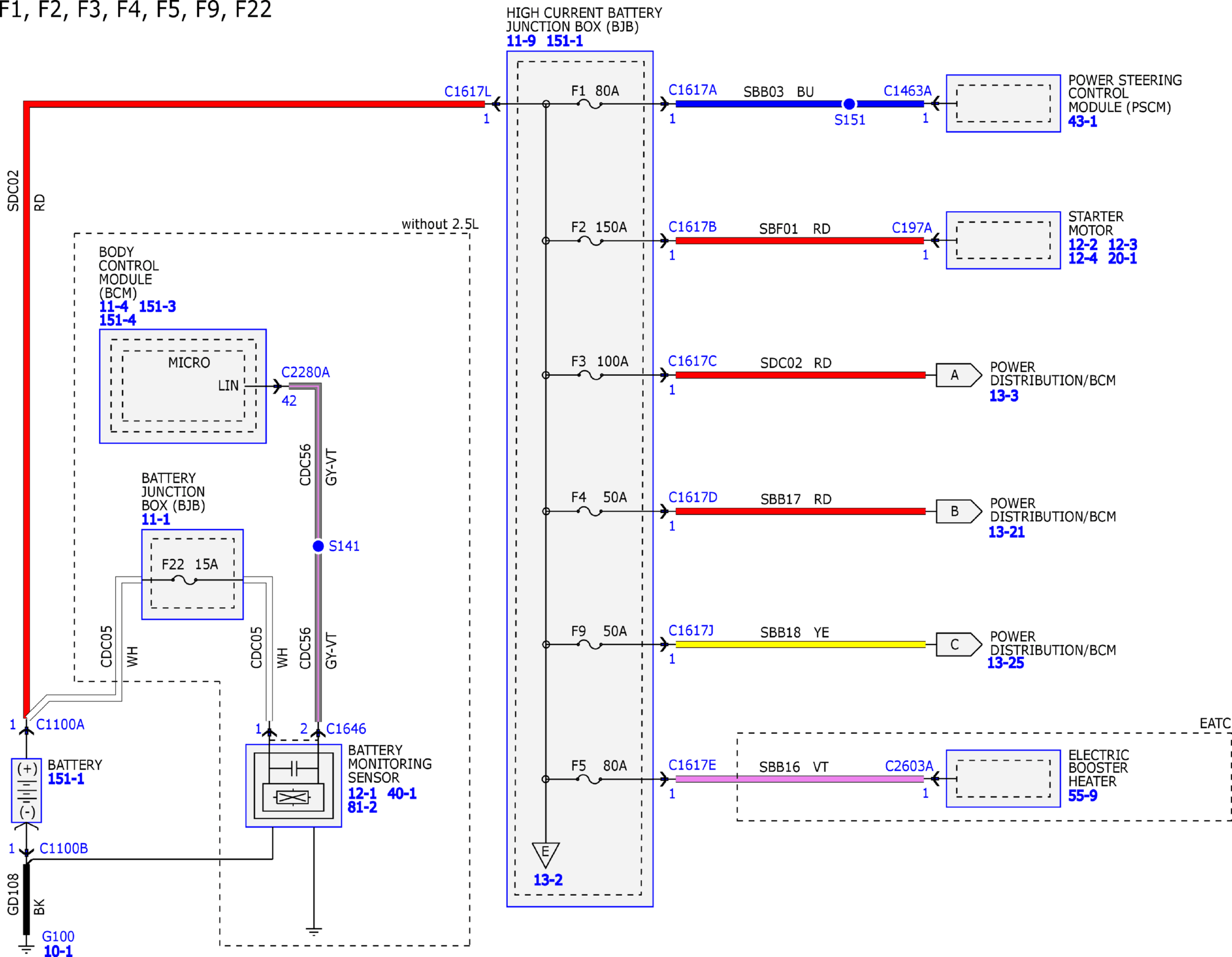

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 35)

GFDW63605

Courtesy of FORD MOTOR COMPANY

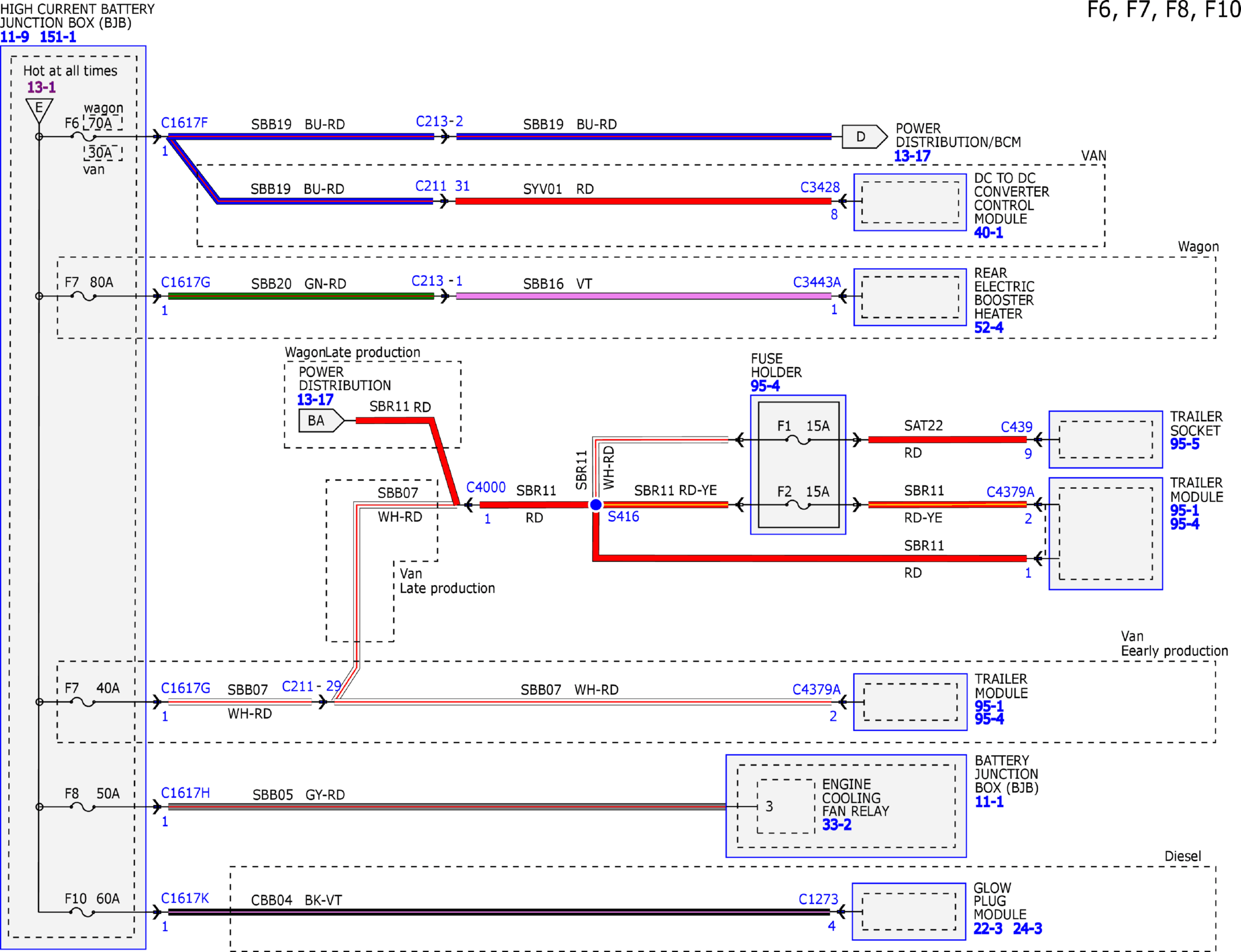

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 35)

GFDW63606

Courtesy of FORD MOTOR COMPANY

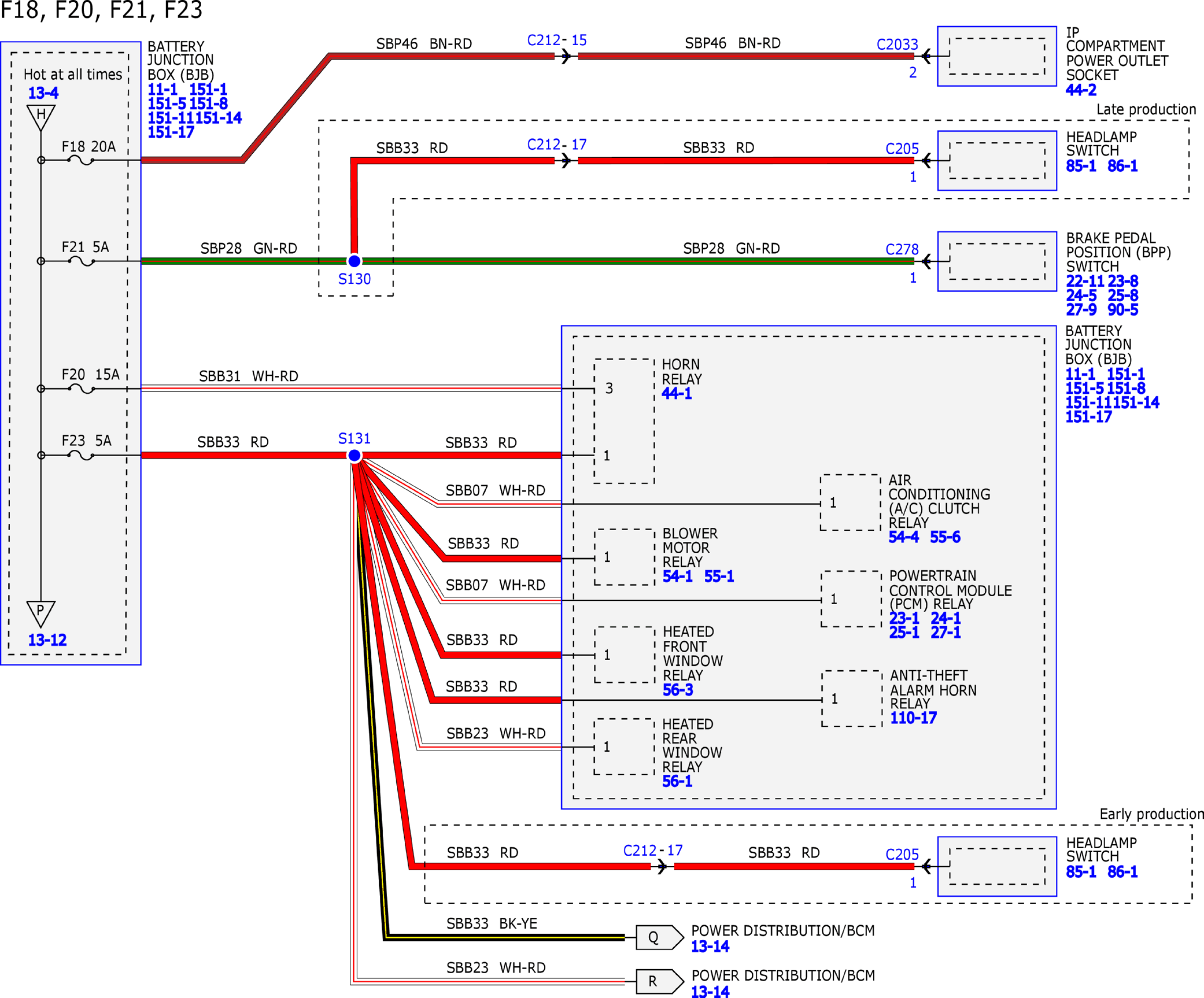

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 35)

GFDW63607

Courtesy of FORD MOTOR COMPANY

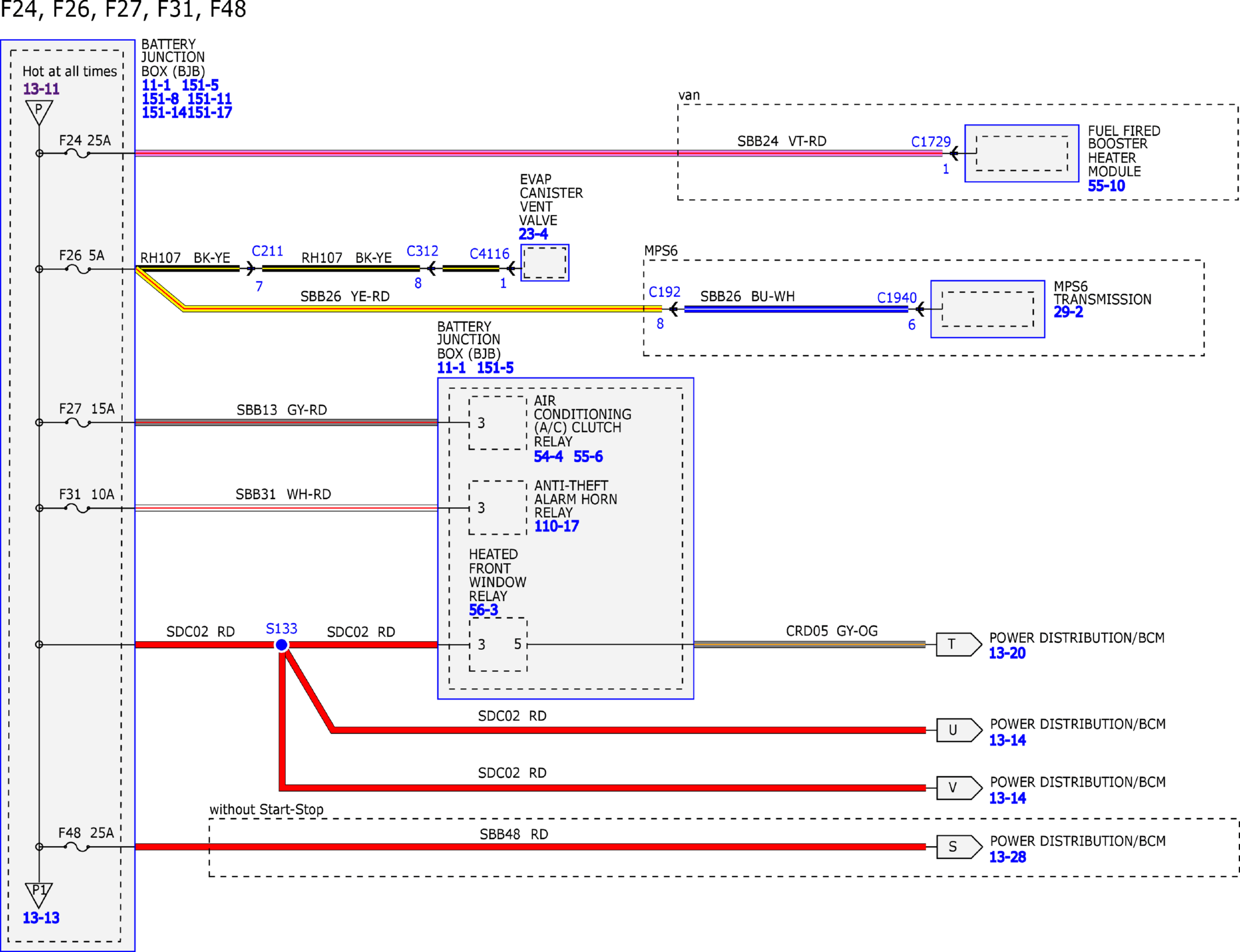

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 35)

GFDW63608

Courtesy of FORD MOTOR COMPANY

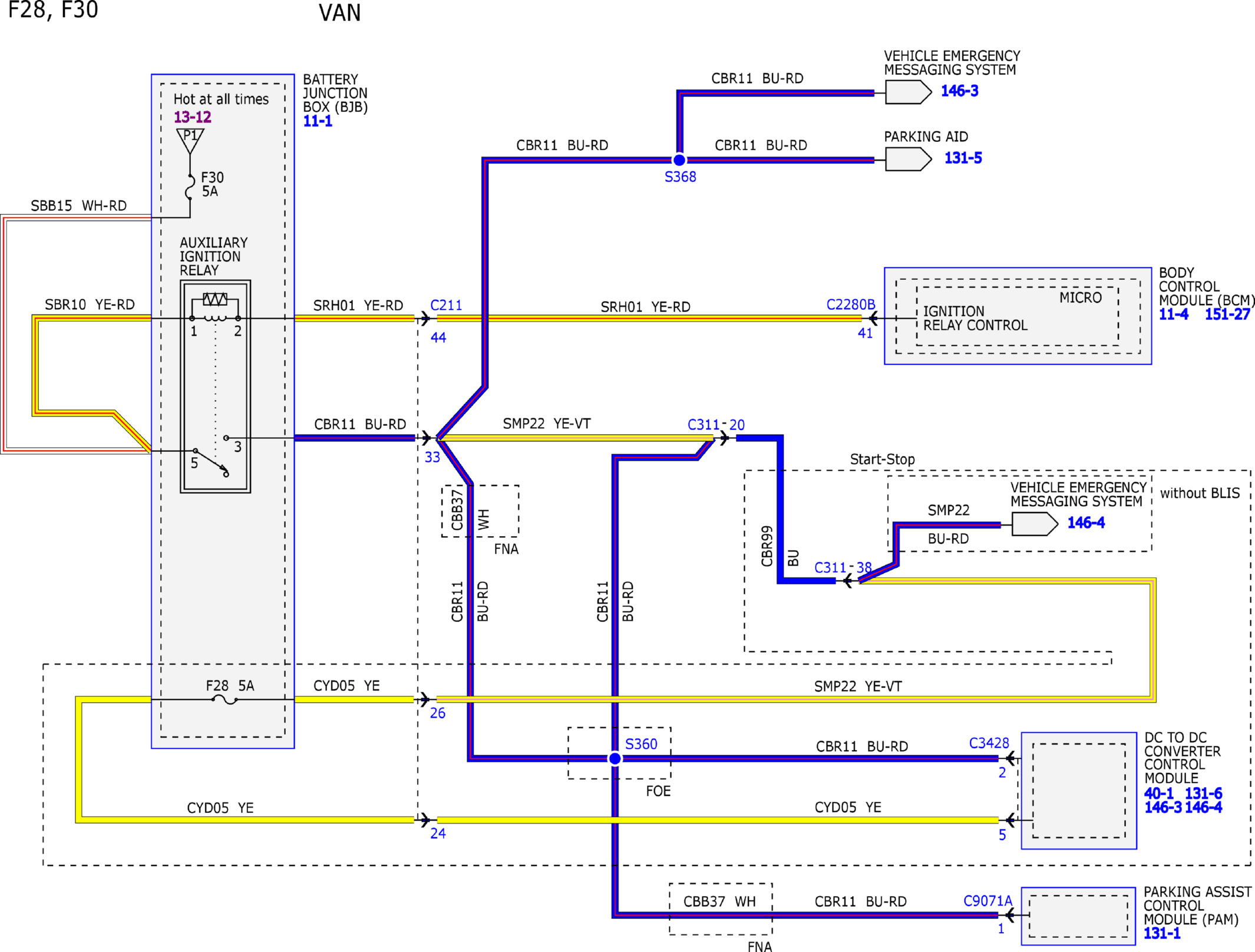

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 35)

GFDW63609

Courtesy of FORD MOTOR COMPANY

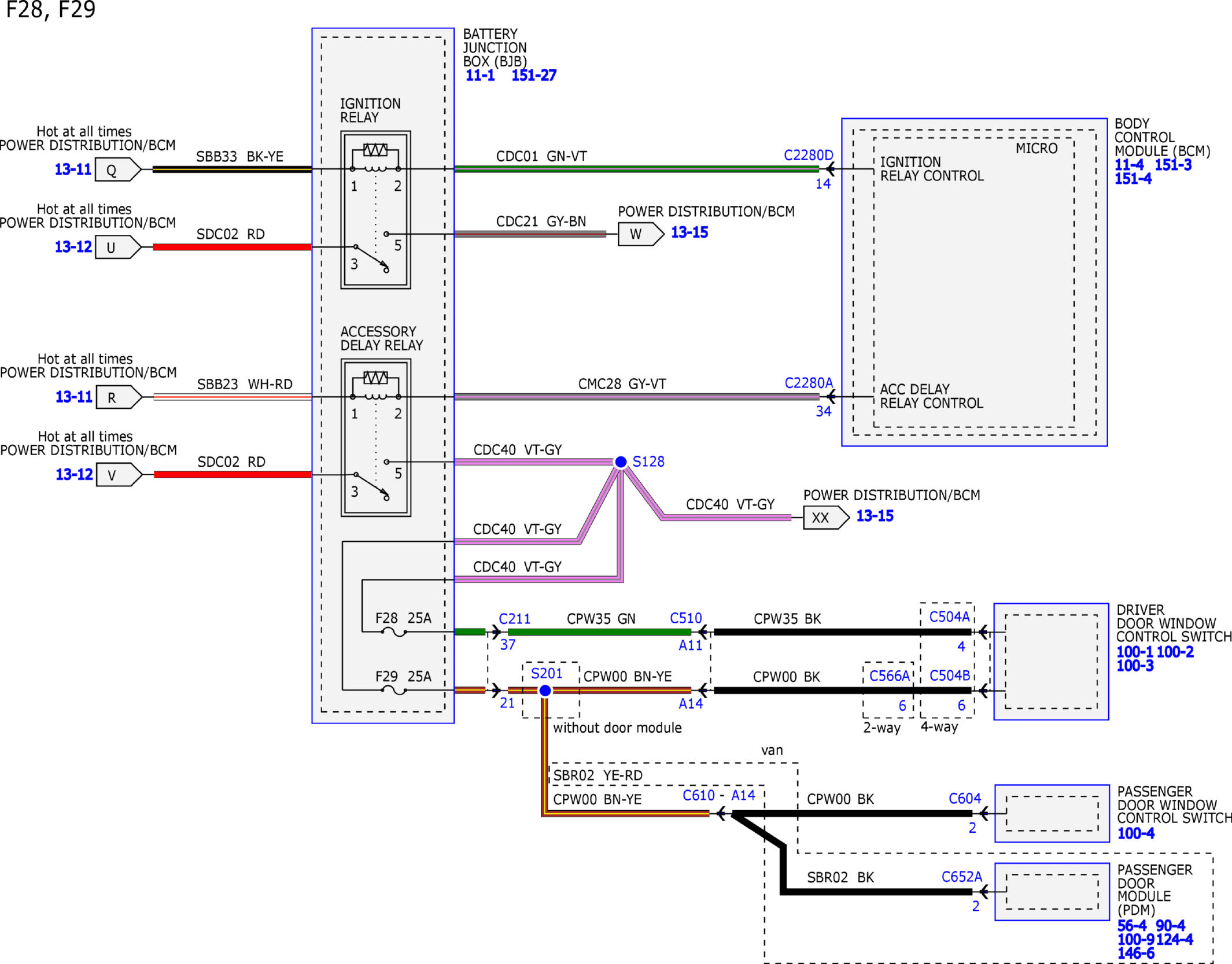

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 35)

GFDW63610

Courtesy of FORD MOTOR COMPANY

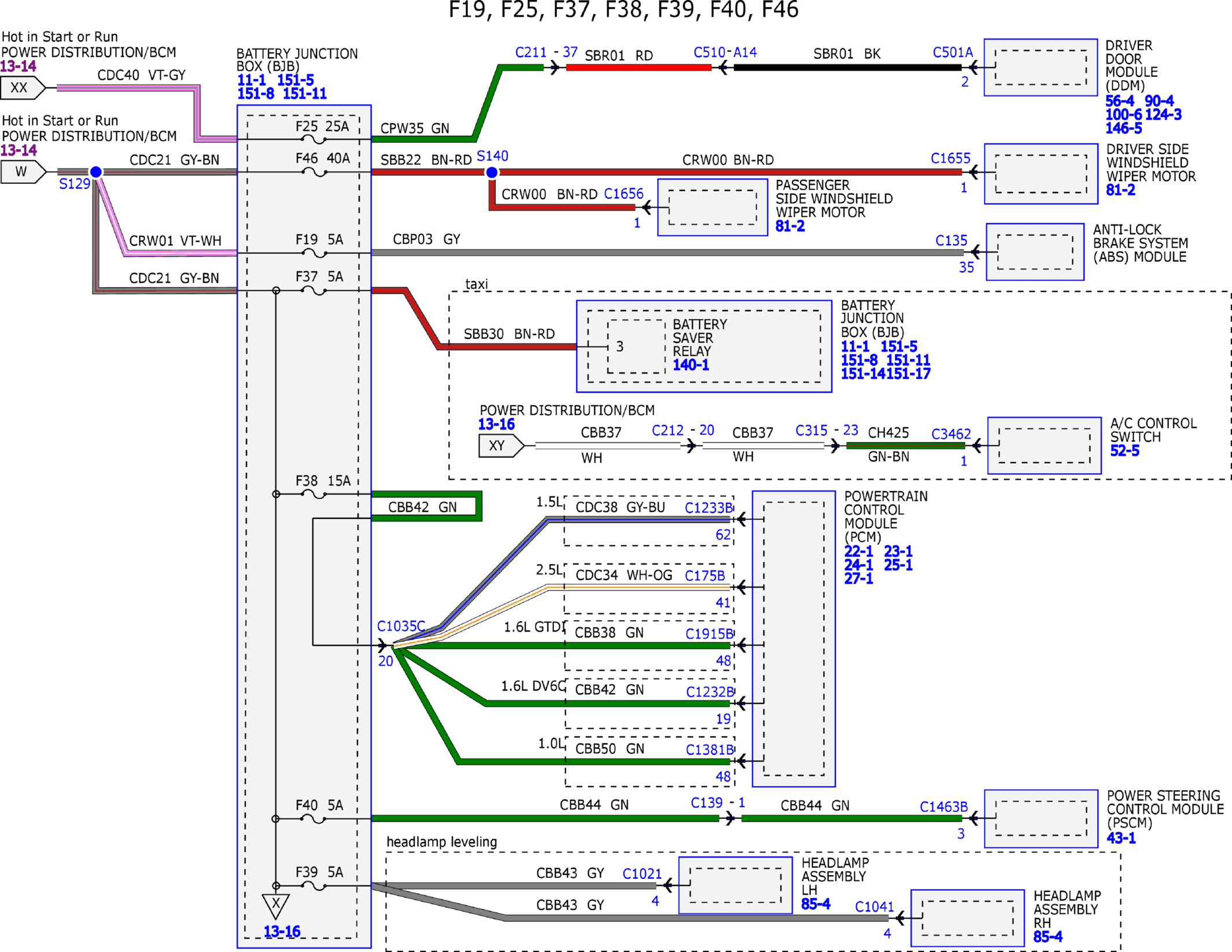

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 35)

GFDW63611

Courtesy of FORD MOTOR COMPANY

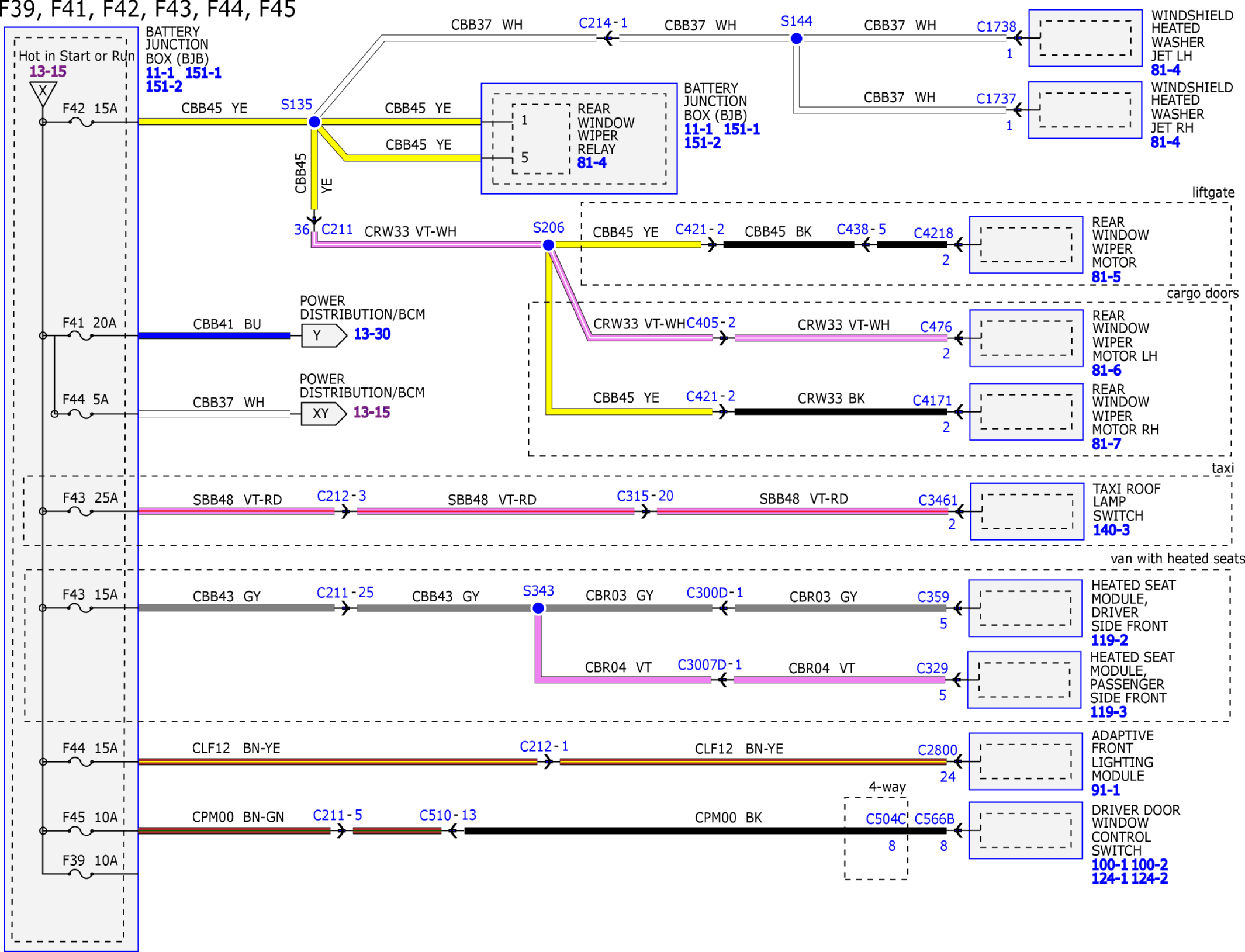

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 35)

GFDW63612

Courtesy of FORD MOTOR COMPANY

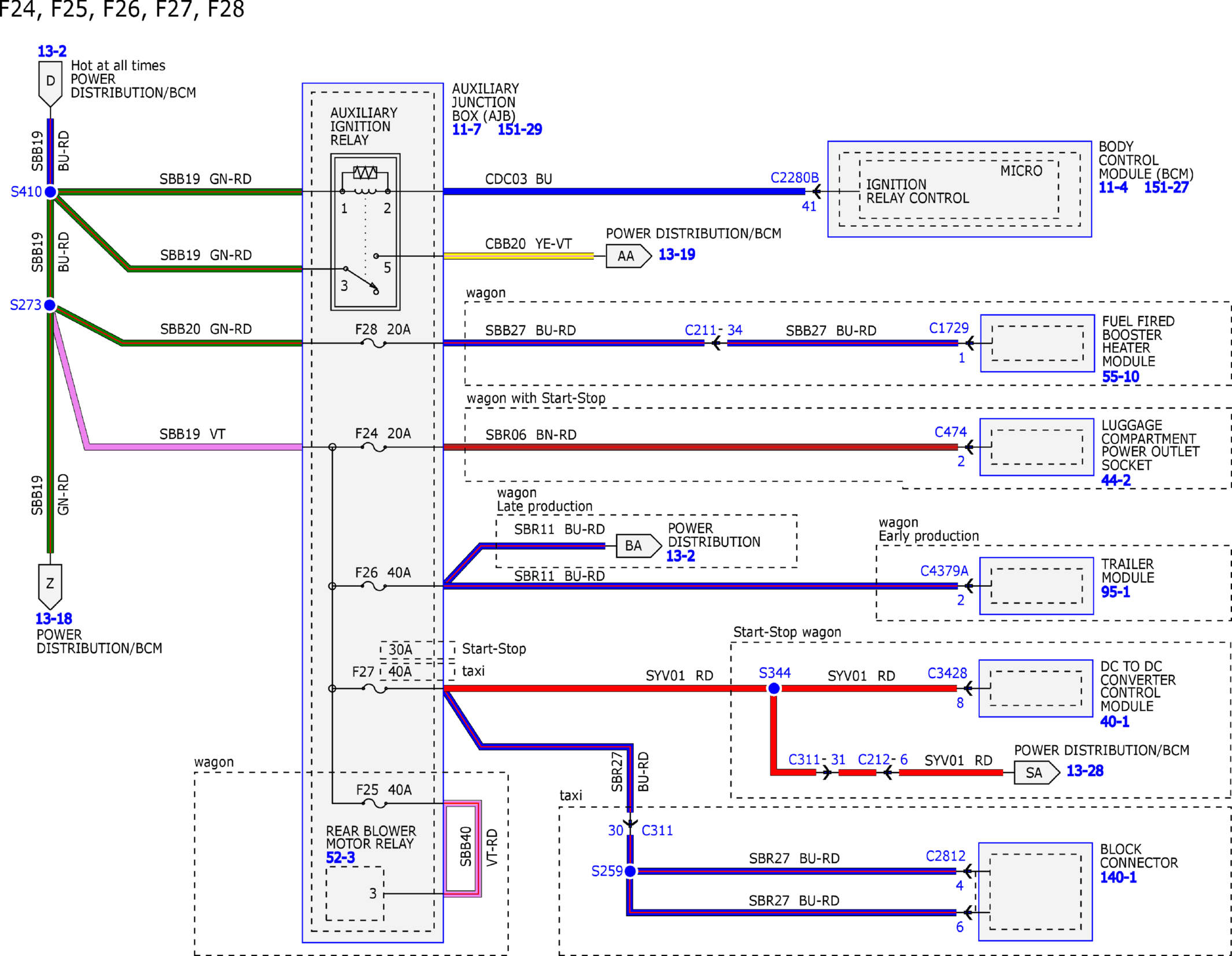

Fig 9: Power Distribution/BCM Wiring Diagram (9 of 35)

GFDW63613

Courtesy of FORD MOTOR COMPANY

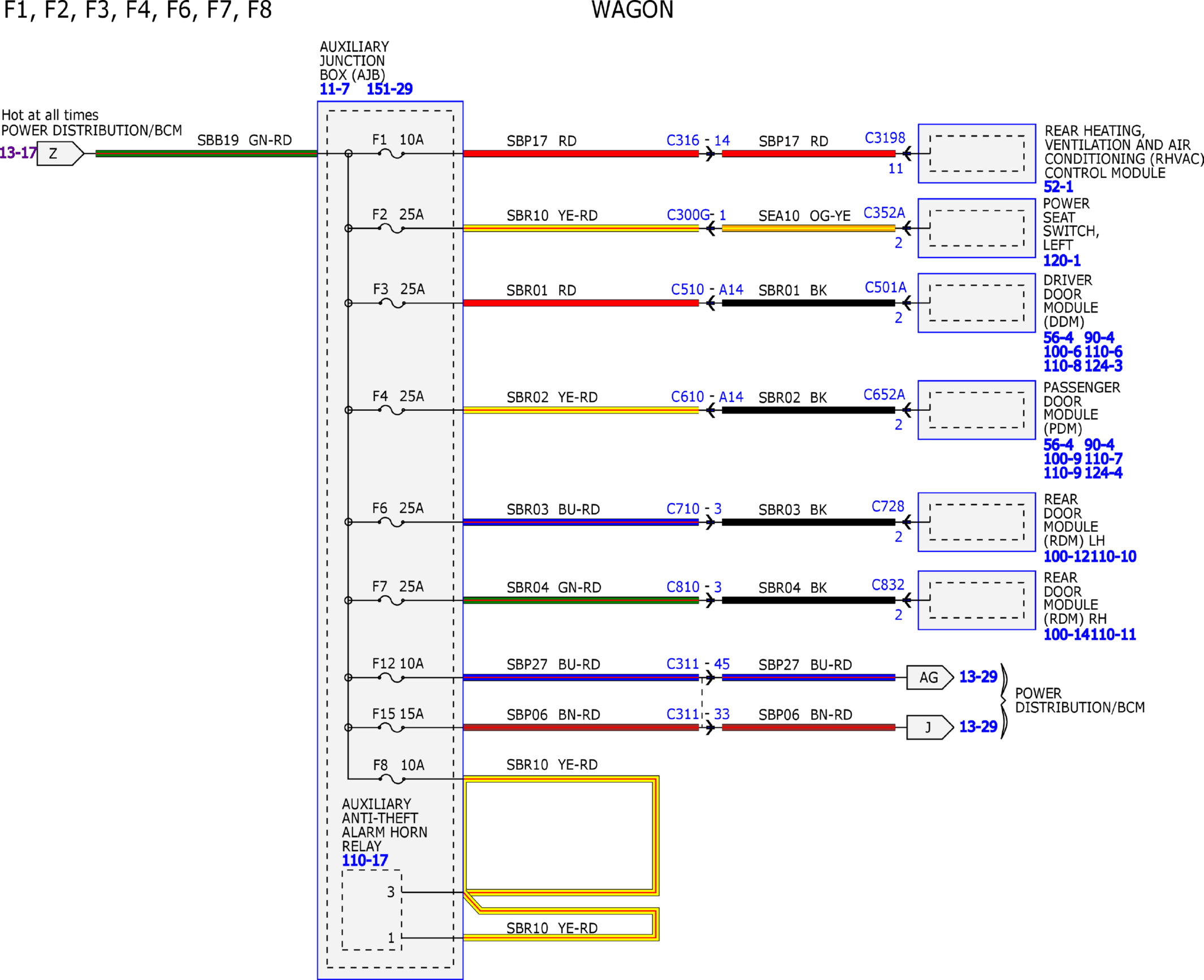

Fig 10: Power Distribution/BCM Wiring Diagram (10 of 35)

GFDW63614

Courtesy of FORD MOTOR COMPANY

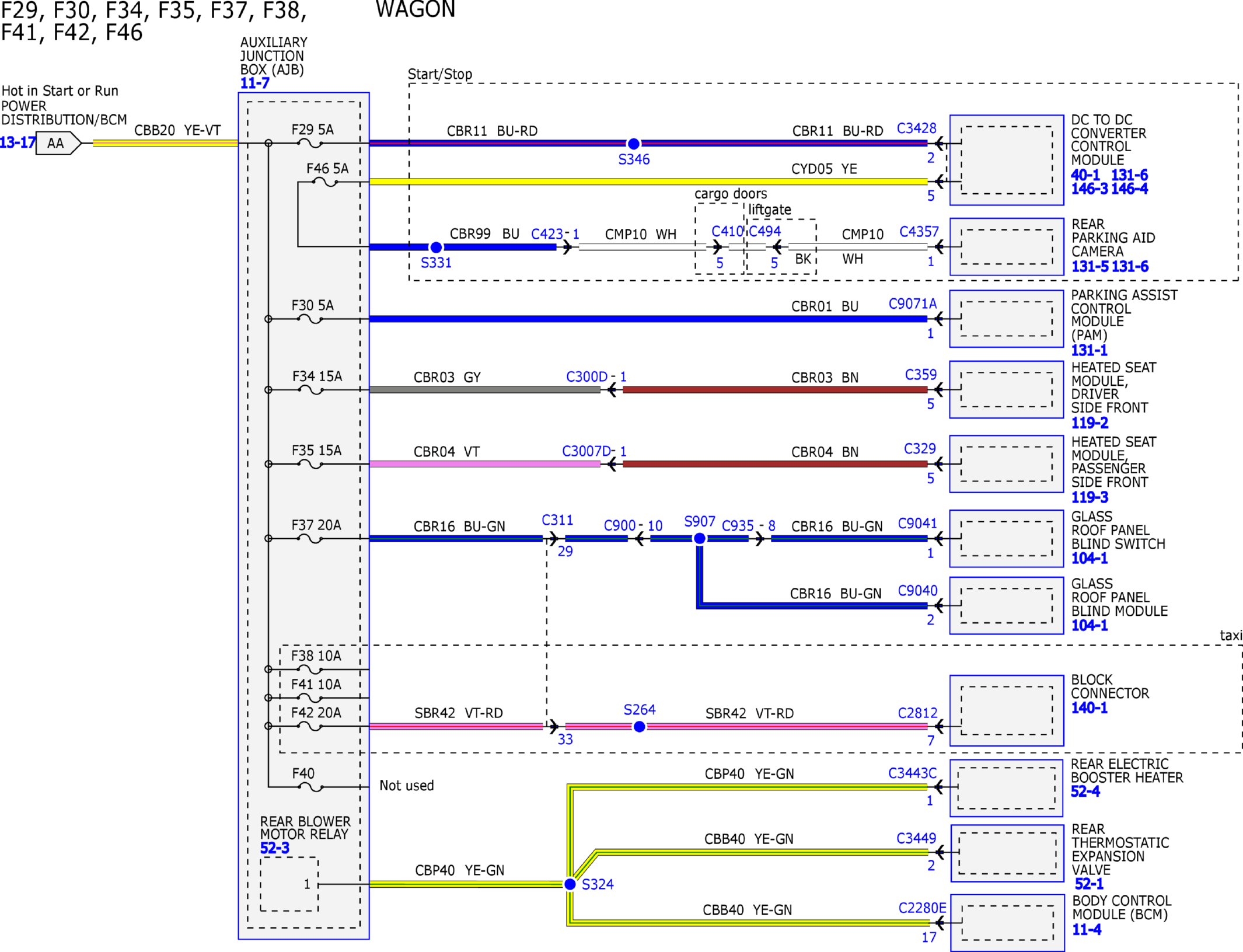

Fig 11: Power Distribution/BCM Wiring Diagram (11 of 35)

GFDW63615

Courtesy of FORD MOTOR COMPANY

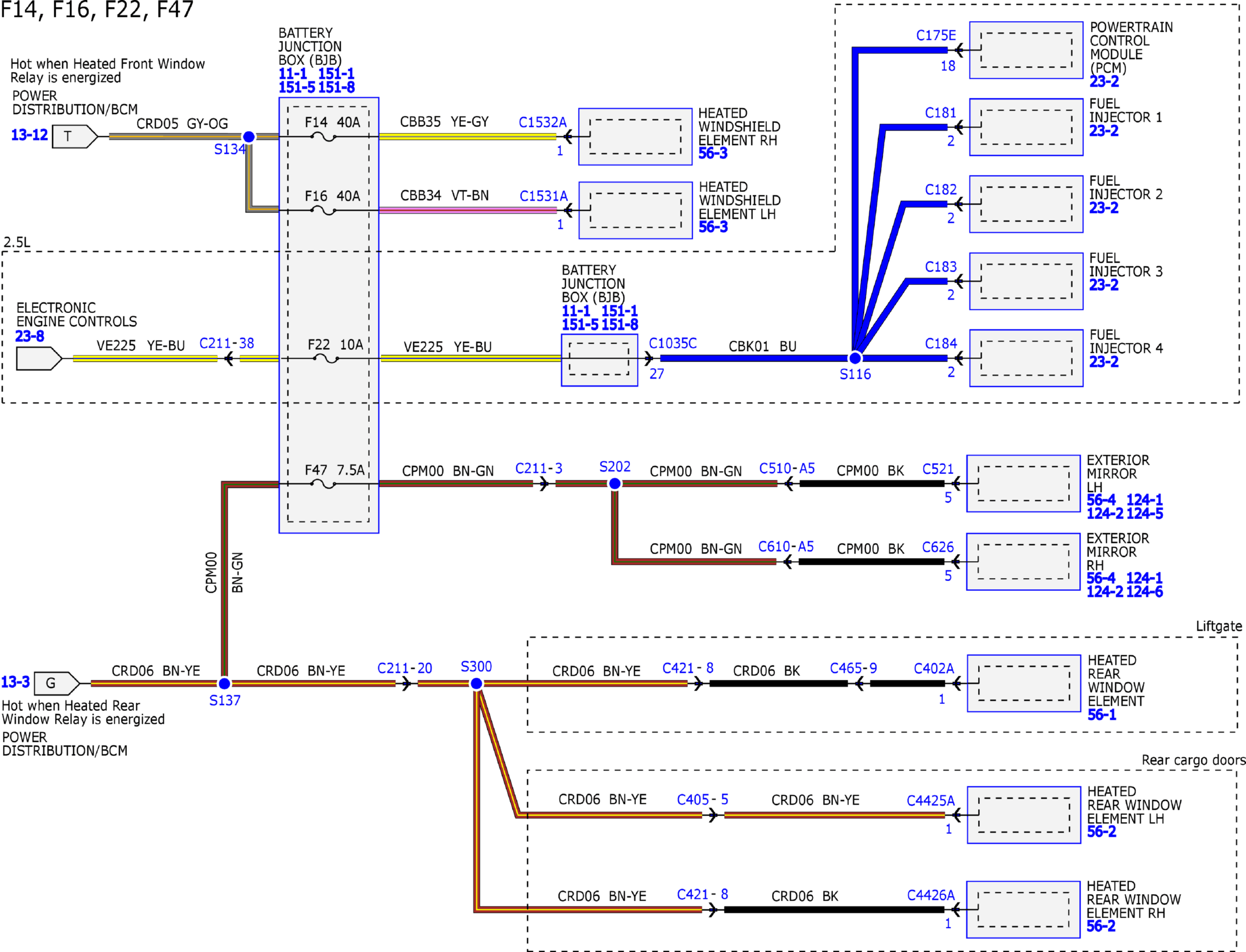

Fig 12: Power Distribution/BCM Wiring Diagram (12 of 35)

GFDW63616

Courtesy of FORD MOTOR COMPANY

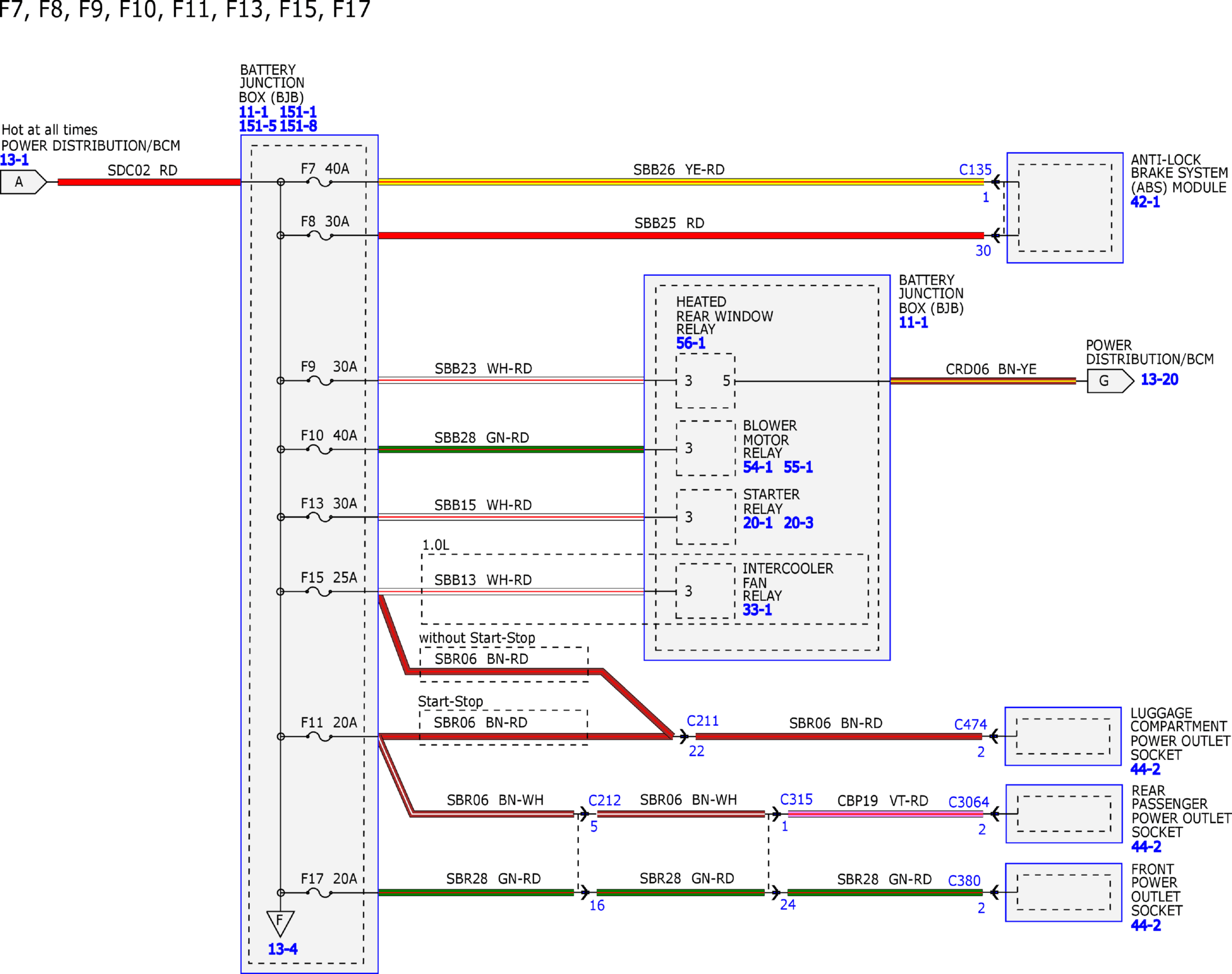

Fig 13: Power Distribution/BCM Wiring Diagram (13 of 35)

GFDW63617

Courtesy of FORD MOTOR COMPANY

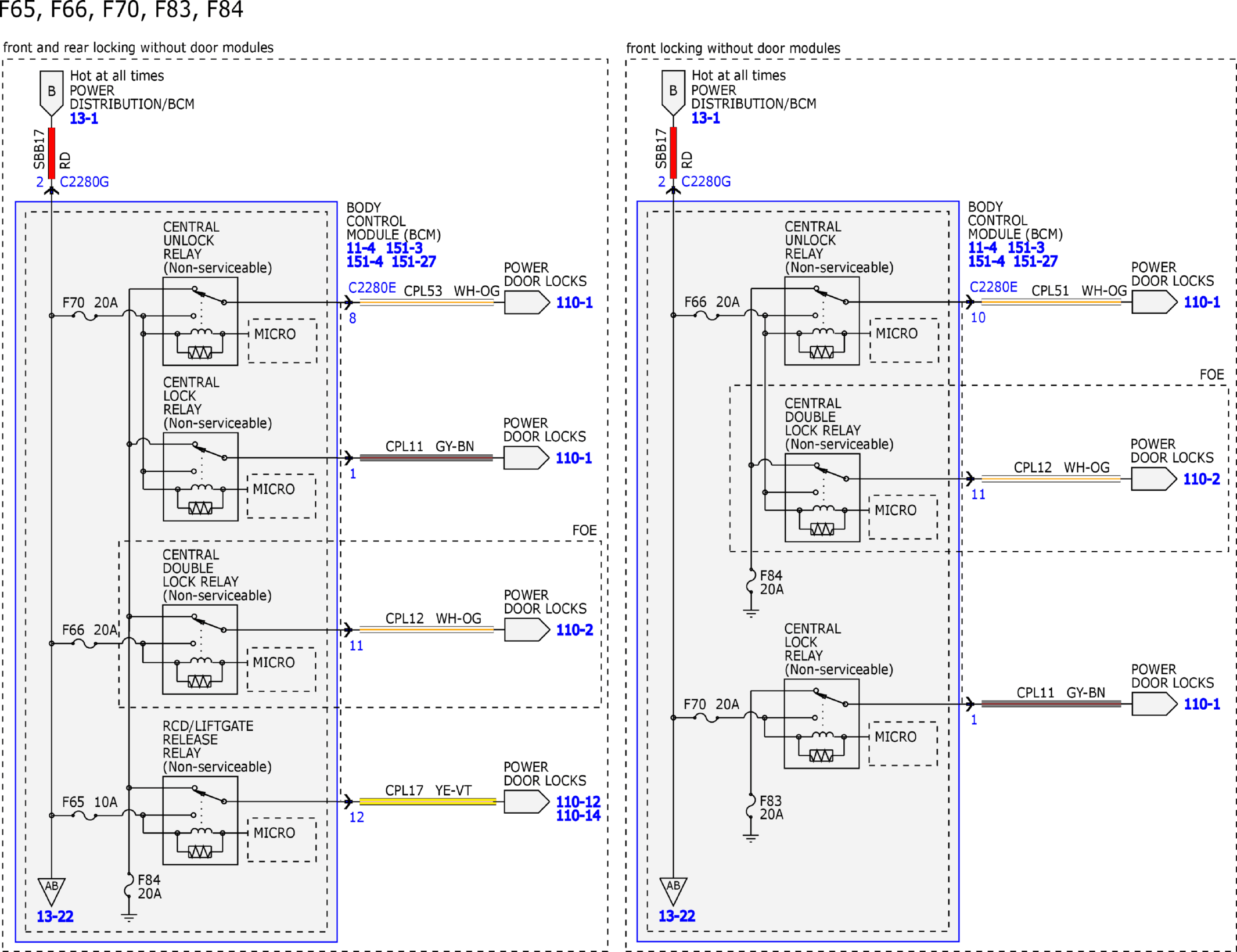

Fig 14: Power Distribution/BCM Wiring Diagram (14 of 35)

GFDW63618

Courtesy of FORD MOTOR COMPANY

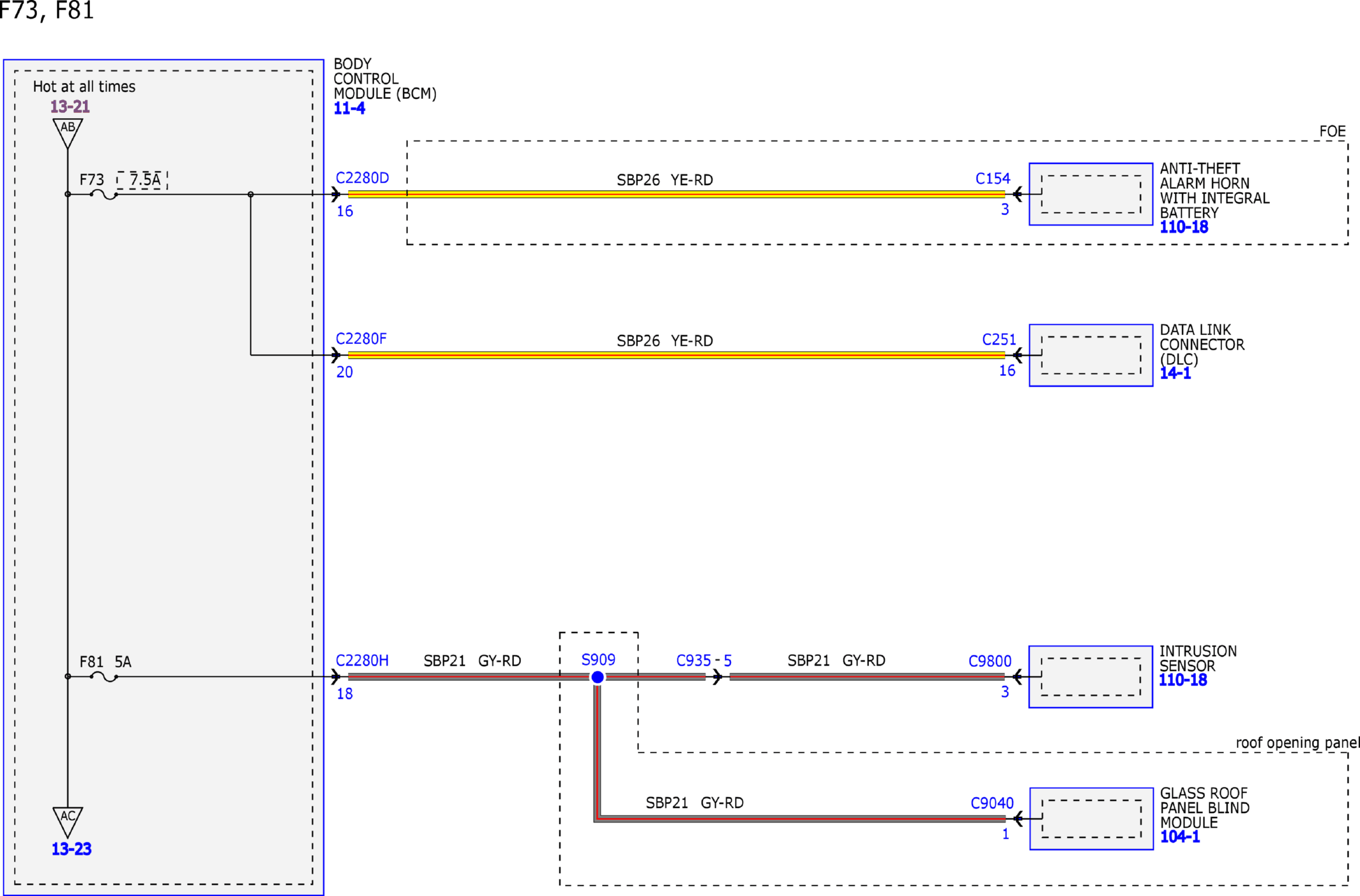

Fig 15: Power Distribution/BCM Wiring Diagram (15 of 35)

GFDW63619

Courtesy of FORD MOTOR COMPANY

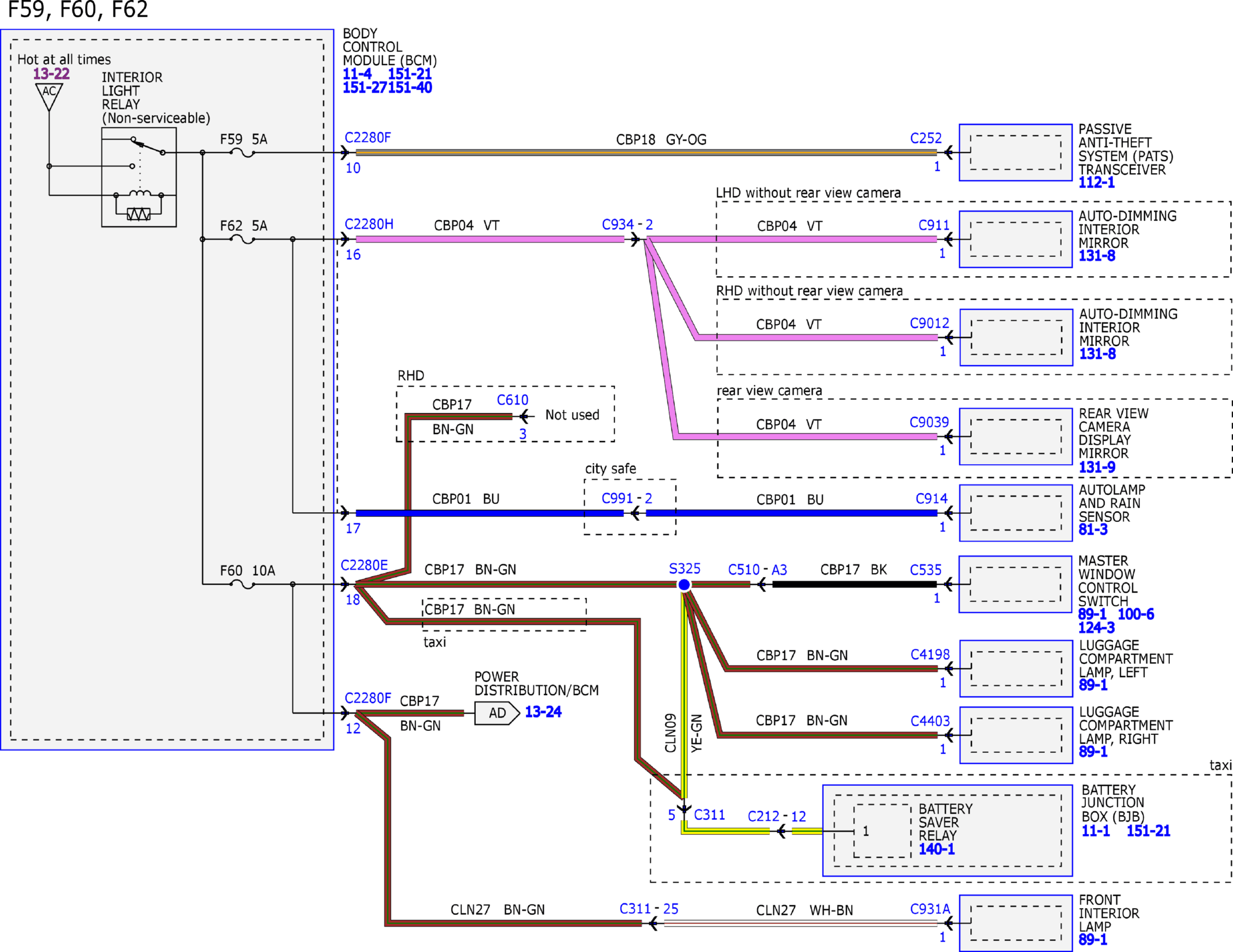

Fig 16: Power Distribution/BCM Wiring Diagram (16 of 35)

GFDW63620

Courtesy of FORD MOTOR COMPANY

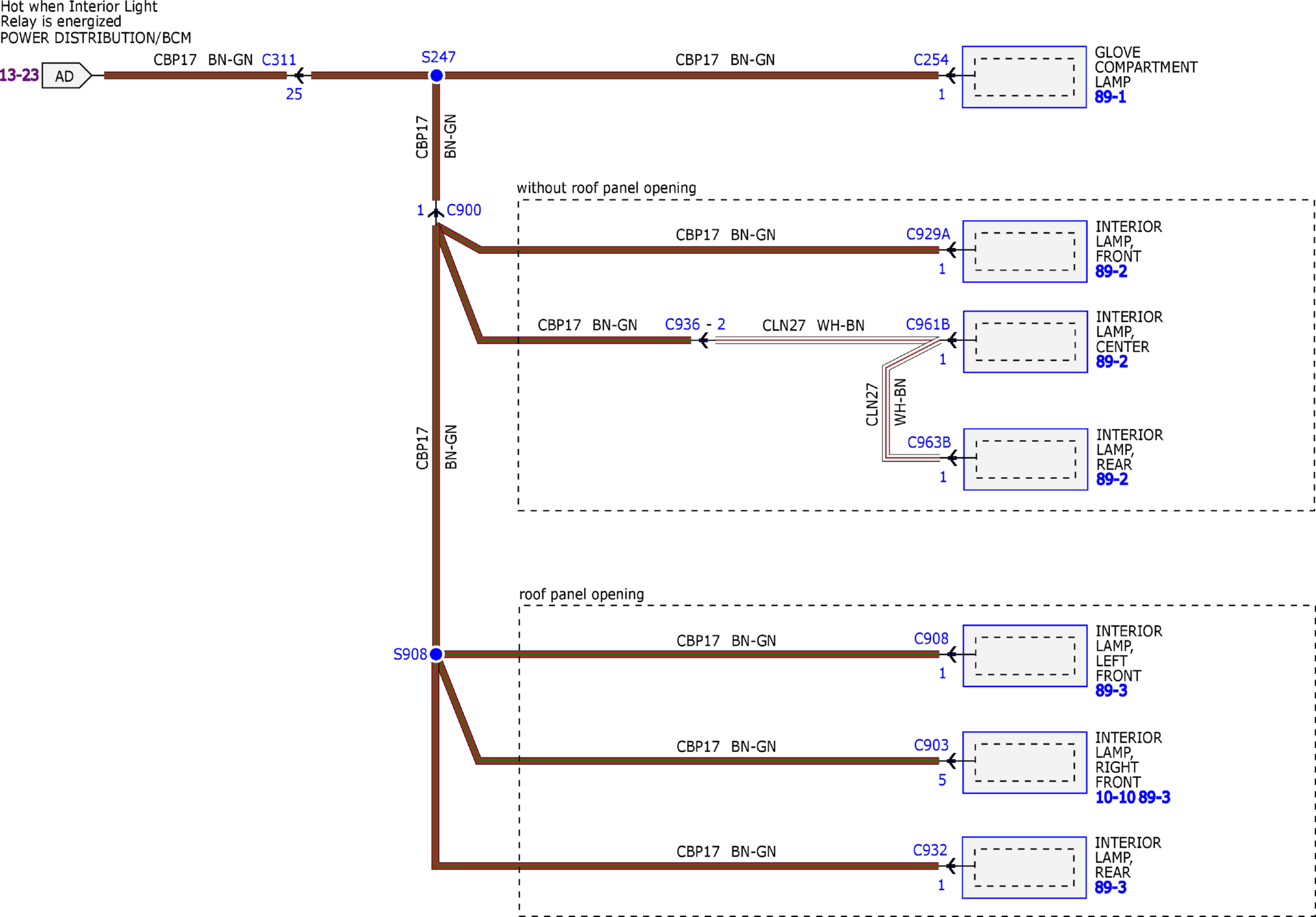

Fig 17: Power Distribution/BCM Wiring Diagram (17 of 35)

GFDW63621

Courtesy of FORD MOTOR COMPANY

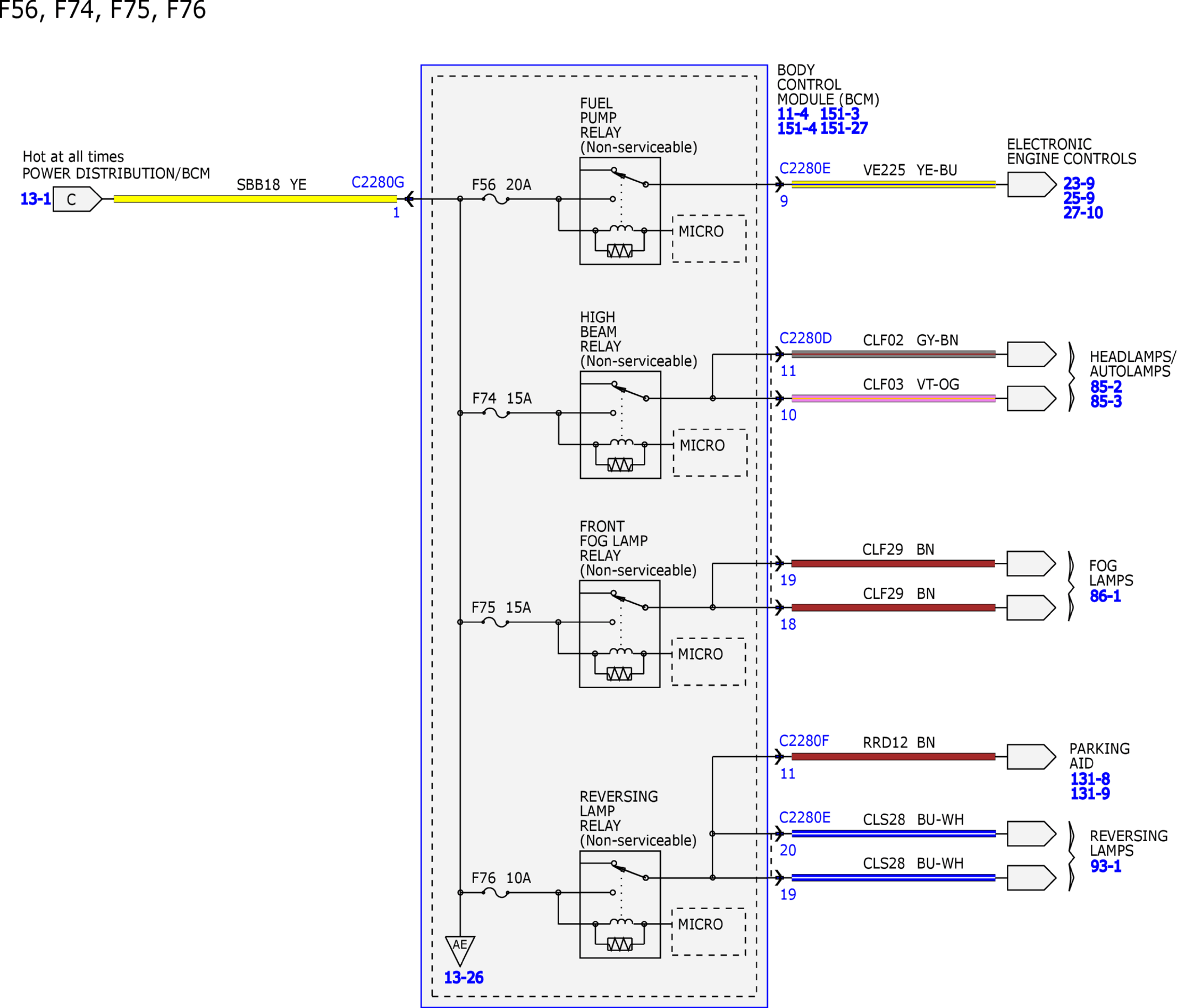

Fig 18: Power Distribution/BCM Wiring Diagram (18 of 35)

GFDW63622

Courtesy of FORD MOTOR COMPANY

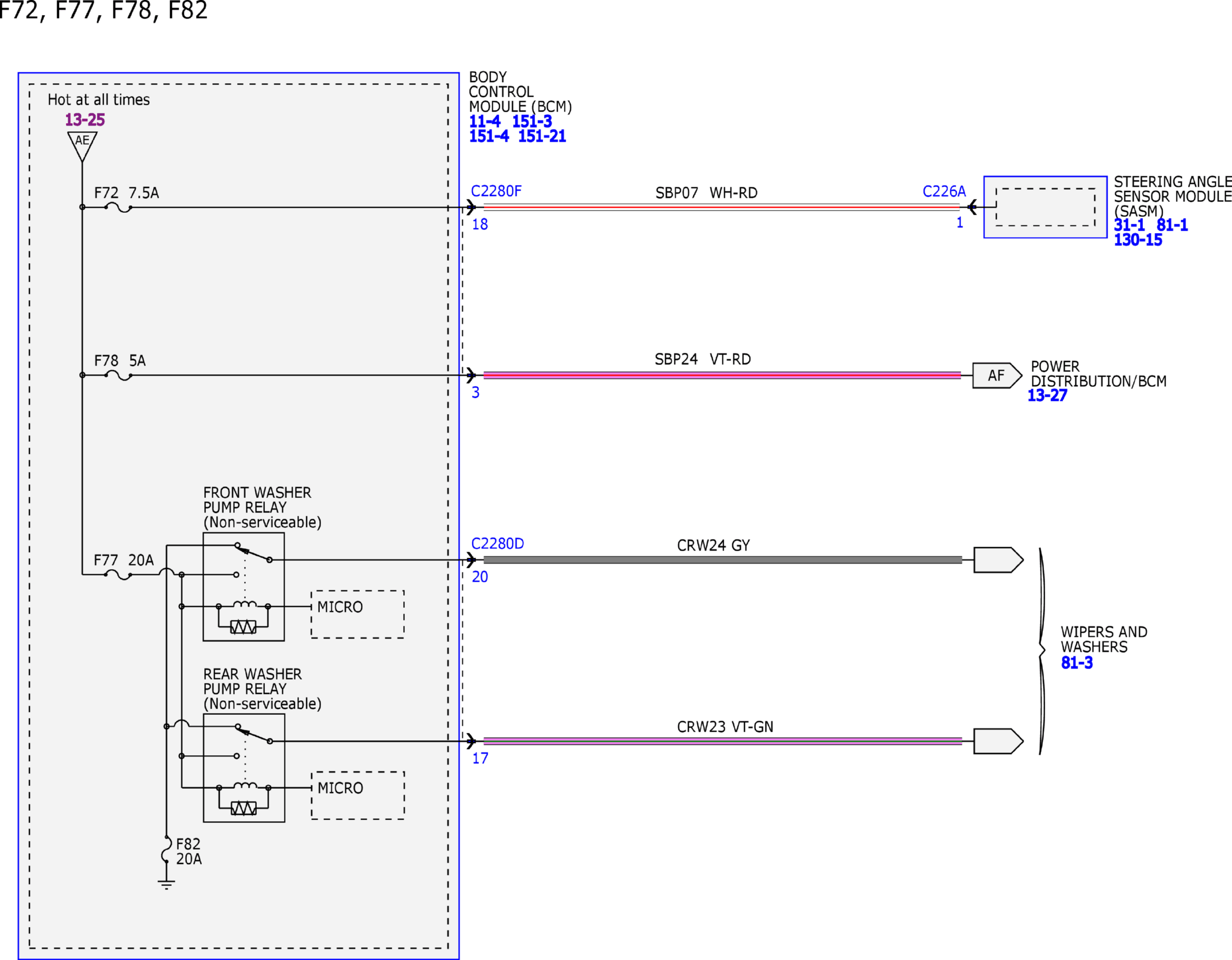

Fig 19: Power Distribution/BCM Wiring Diagram (19 of 35)

GFDW63623

Courtesy of FORD MOTOR COMPANY

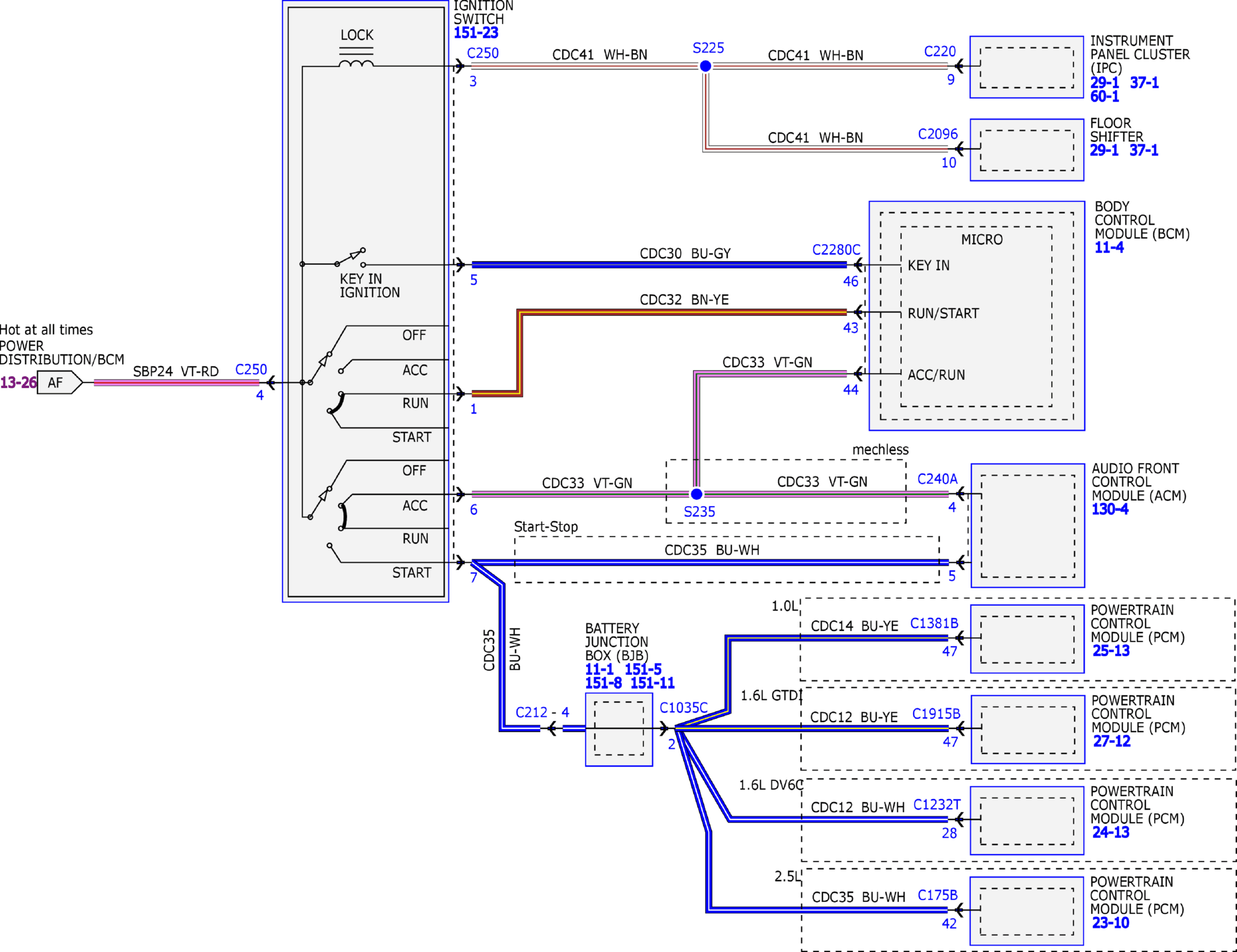

Fig 20: Power Distribution/BCM Wiring Diagram (20 of 35)

GFDW63624

Courtesy of FORD MOTOR COMPANY

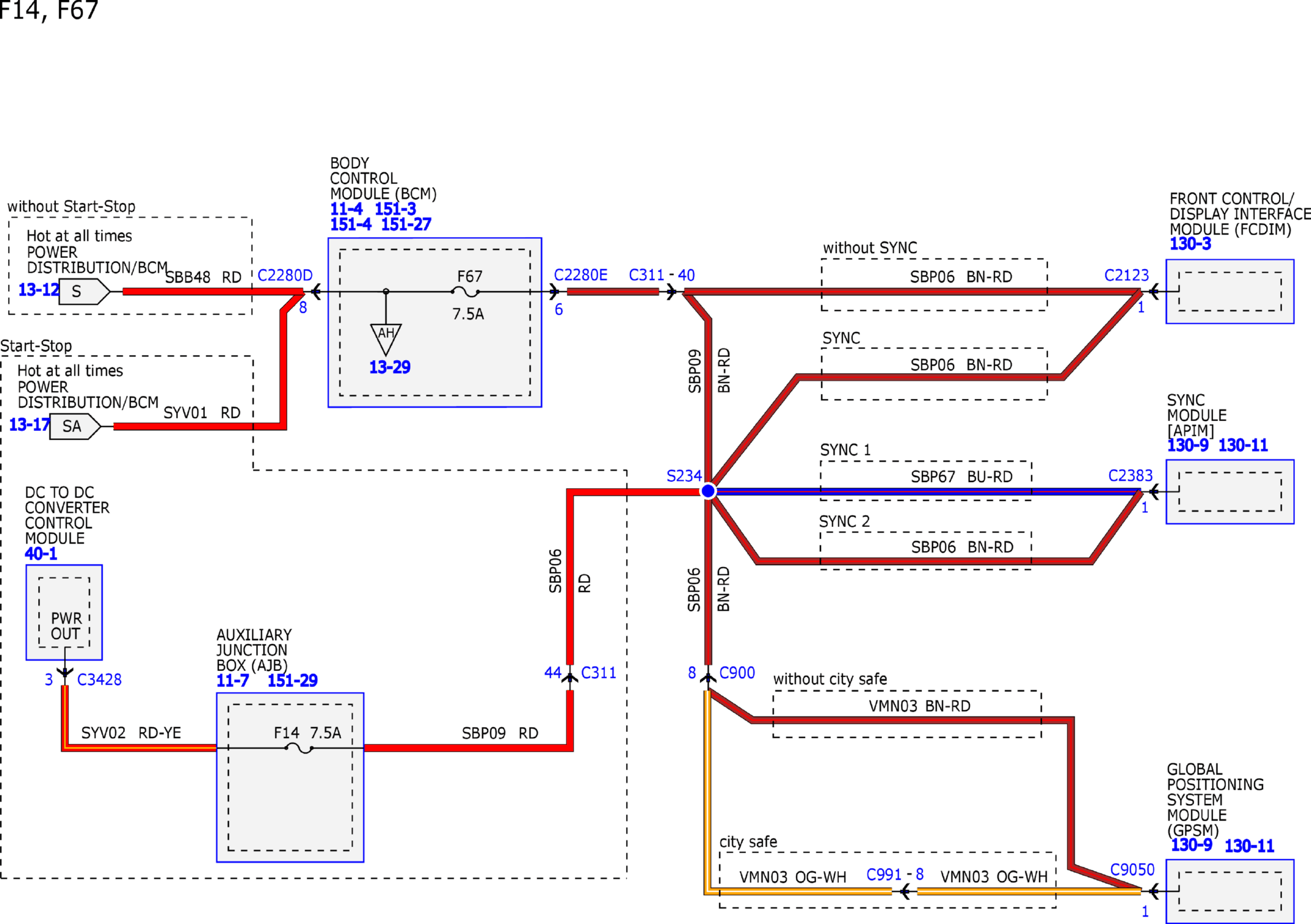

Fig 21: Power Distribution/BCM Wiring Diagram (21 of 35)

GFDW63625

Courtesy of FORD MOTOR COMPANY

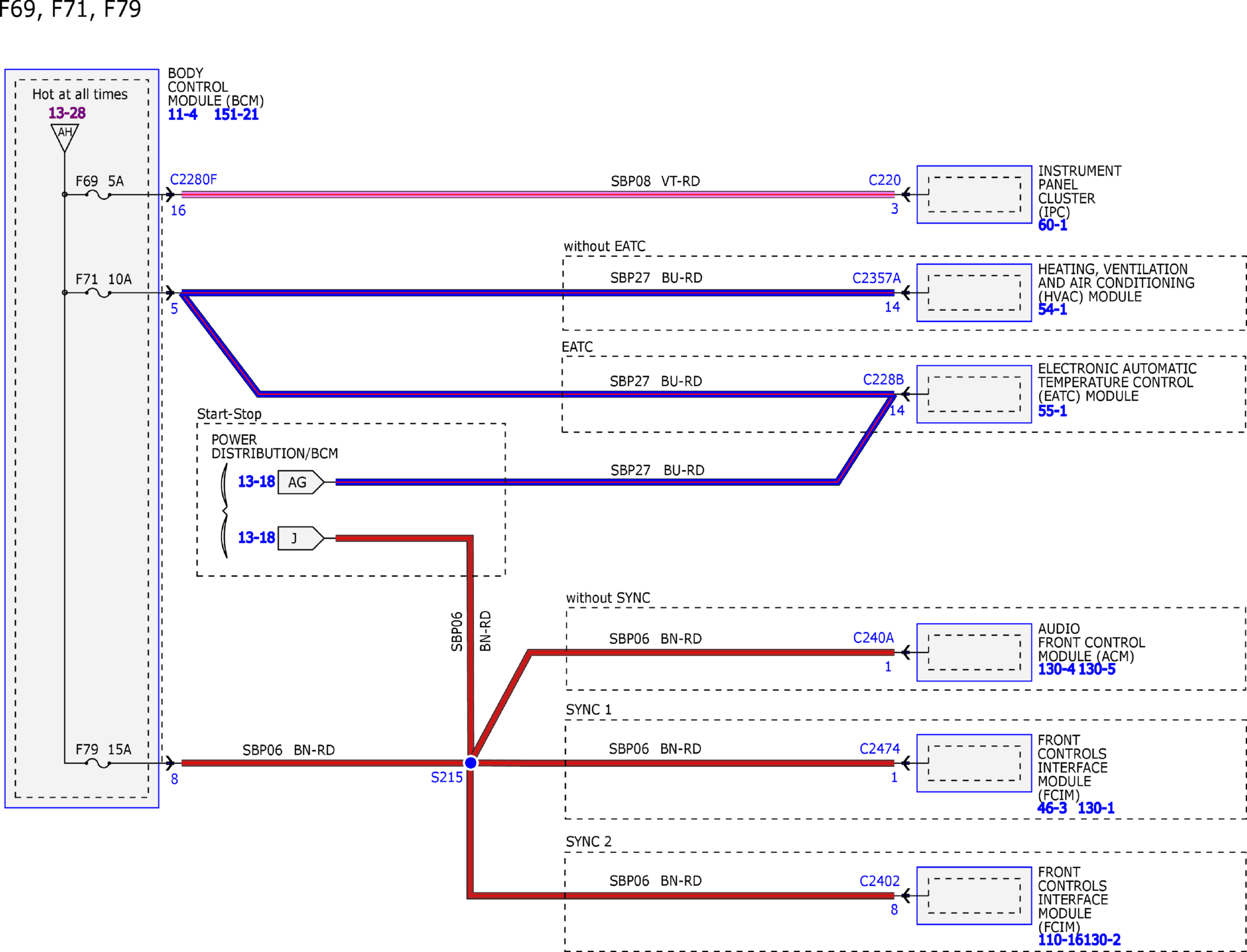

Fig 22: Power Distribution/BCM Wiring Diagram (22 of 35)

GFDW63626

Courtesy of FORD MOTOR COMPANY

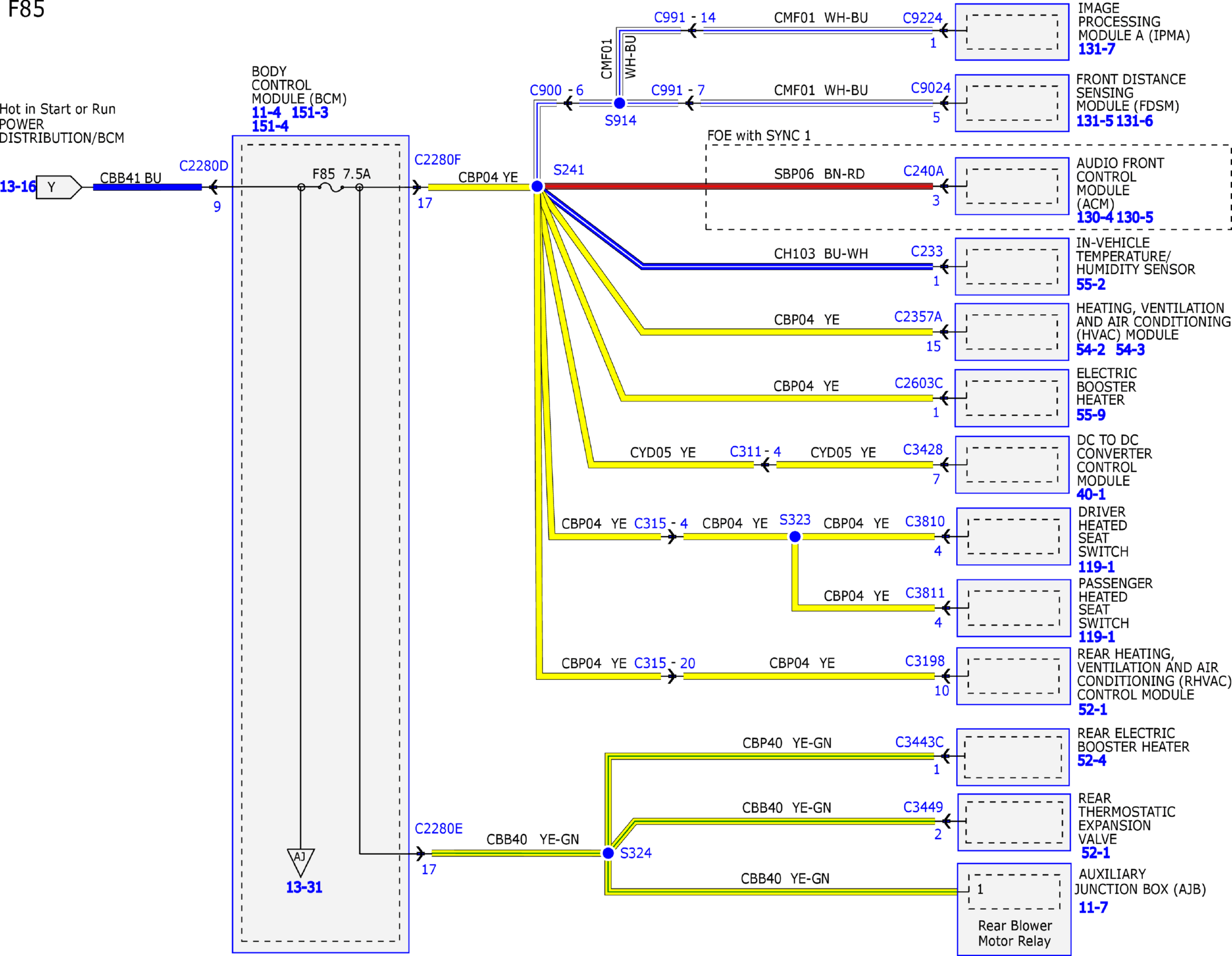

Fig 23: Power Distribution/BCM Wiring Diagram (23 of 35)

GFDW63627

Courtesy of FORD MOTOR COMPANY

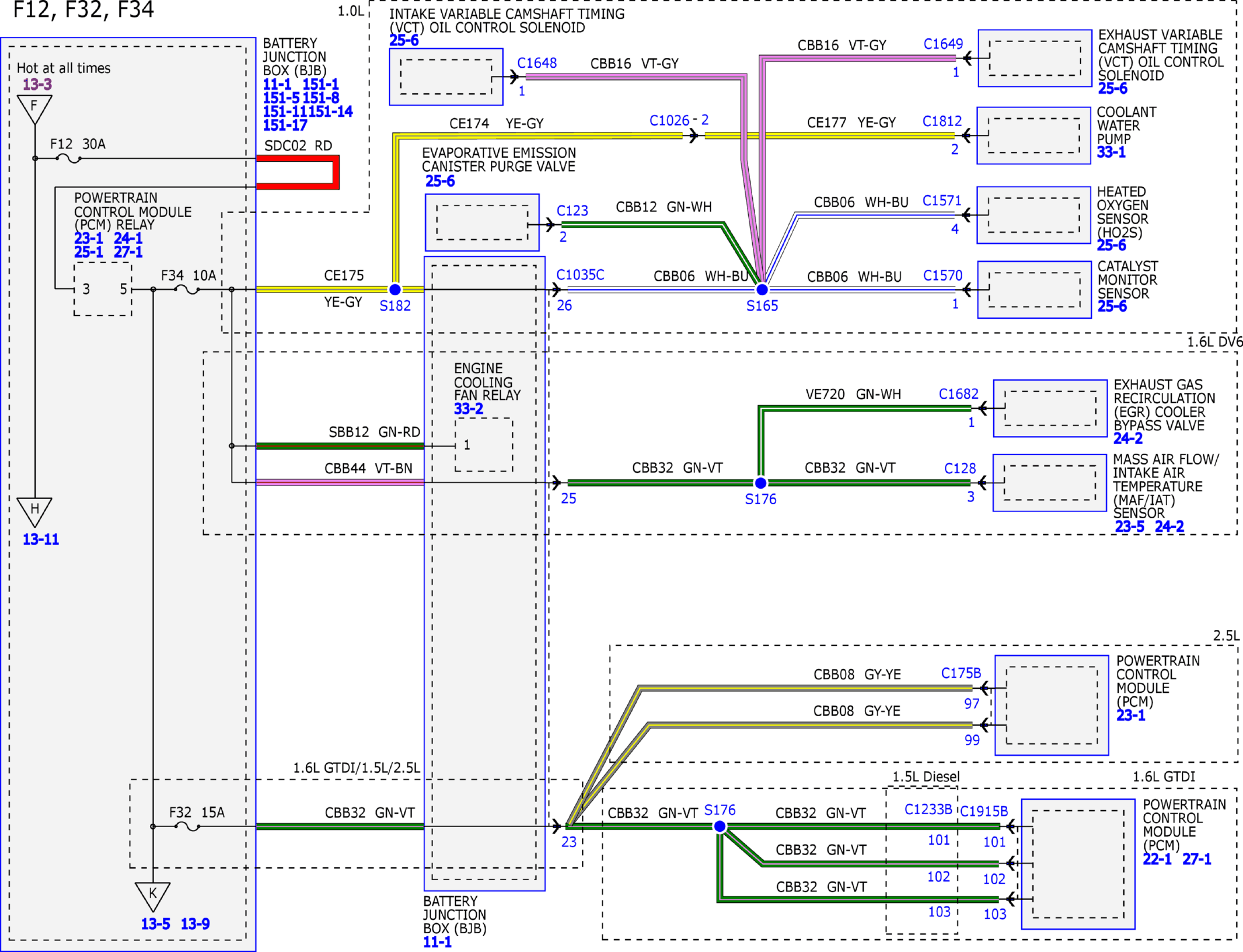

Fig 24: Power Distribution/BCM Wiring Diagram (24 of 35)

GFDW63628

Courtesy of FORD MOTOR COMPANY

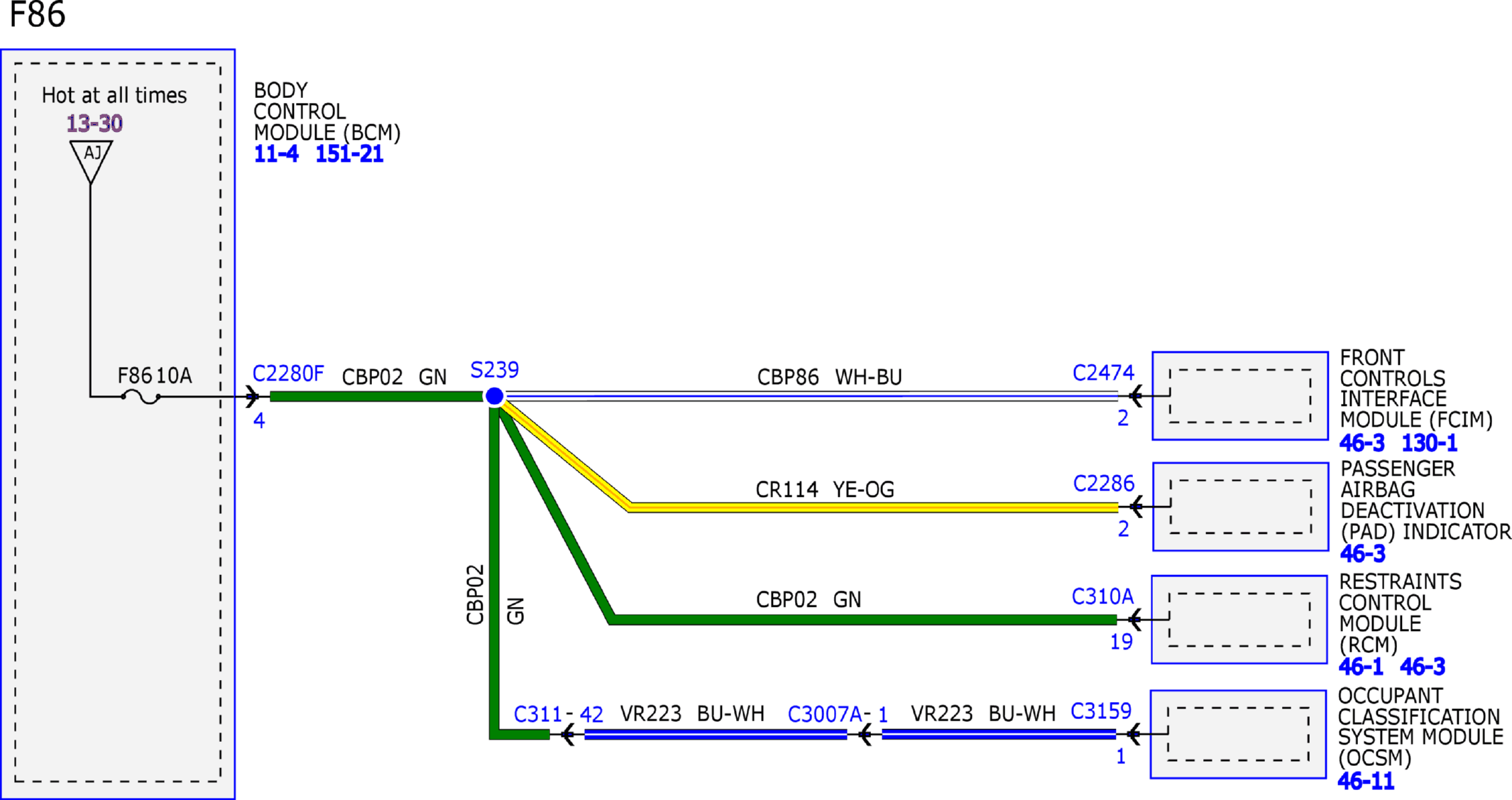

Fig 25: Power Distribution/BCM Wiring Diagram (25 of 35)

GFDW63629

Courtesy of FORD MOTOR COMPANY

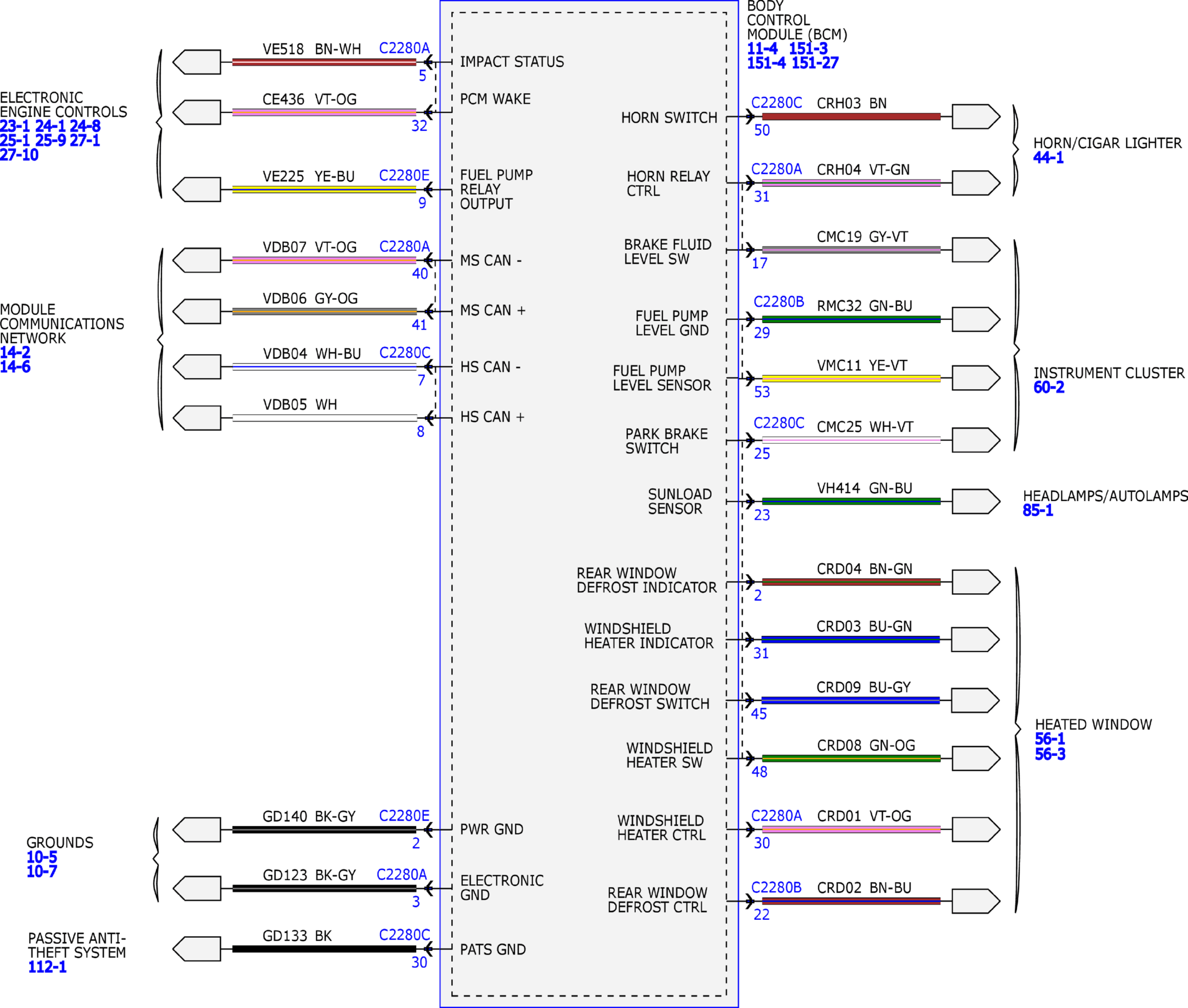

Fig 26: Power Distribution/BCM Wiring Diagram (26 of 35)

GFDW63630

Courtesy of FORD MOTOR COMPANY

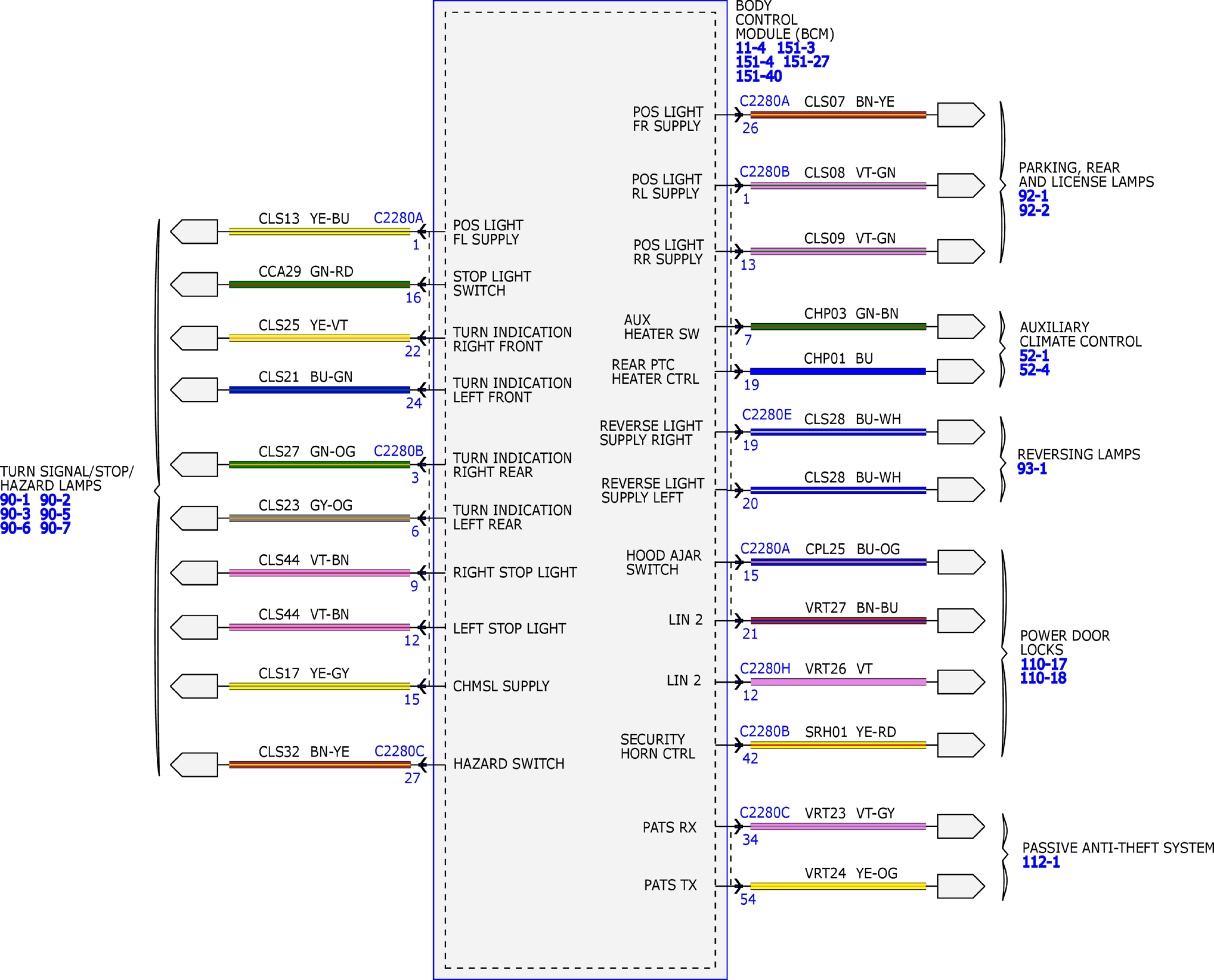

Fig 27: Power Distribution/BCM Wiring Diagram (27 of 35)

GFDW63631

Courtesy of FORD MOTOR COMPANY

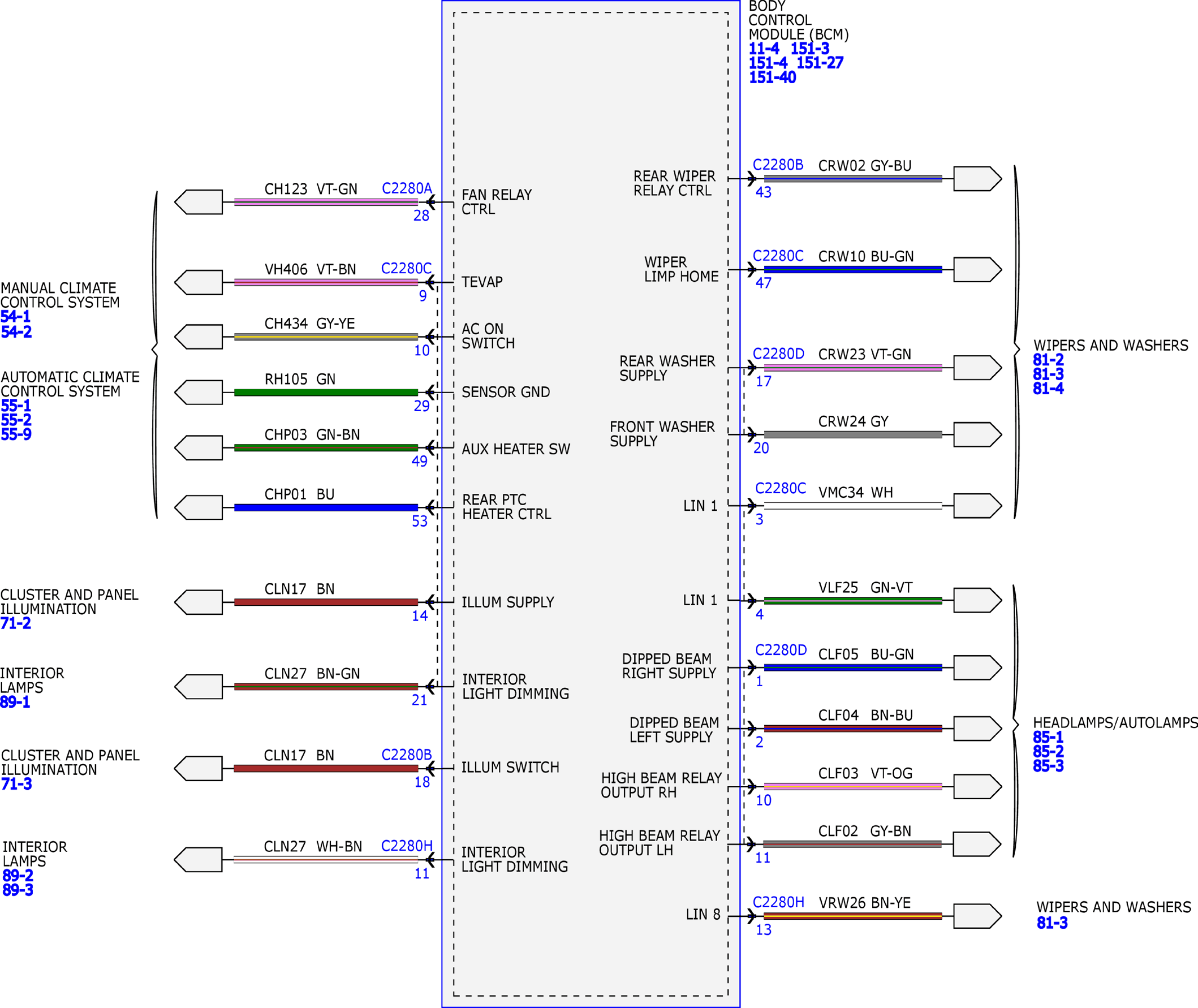

Fig 28: Power Distribution/BCM Wiring Diagram (28 of 35)

GFDW63632

Courtesy of FORD MOTOR COMPANY

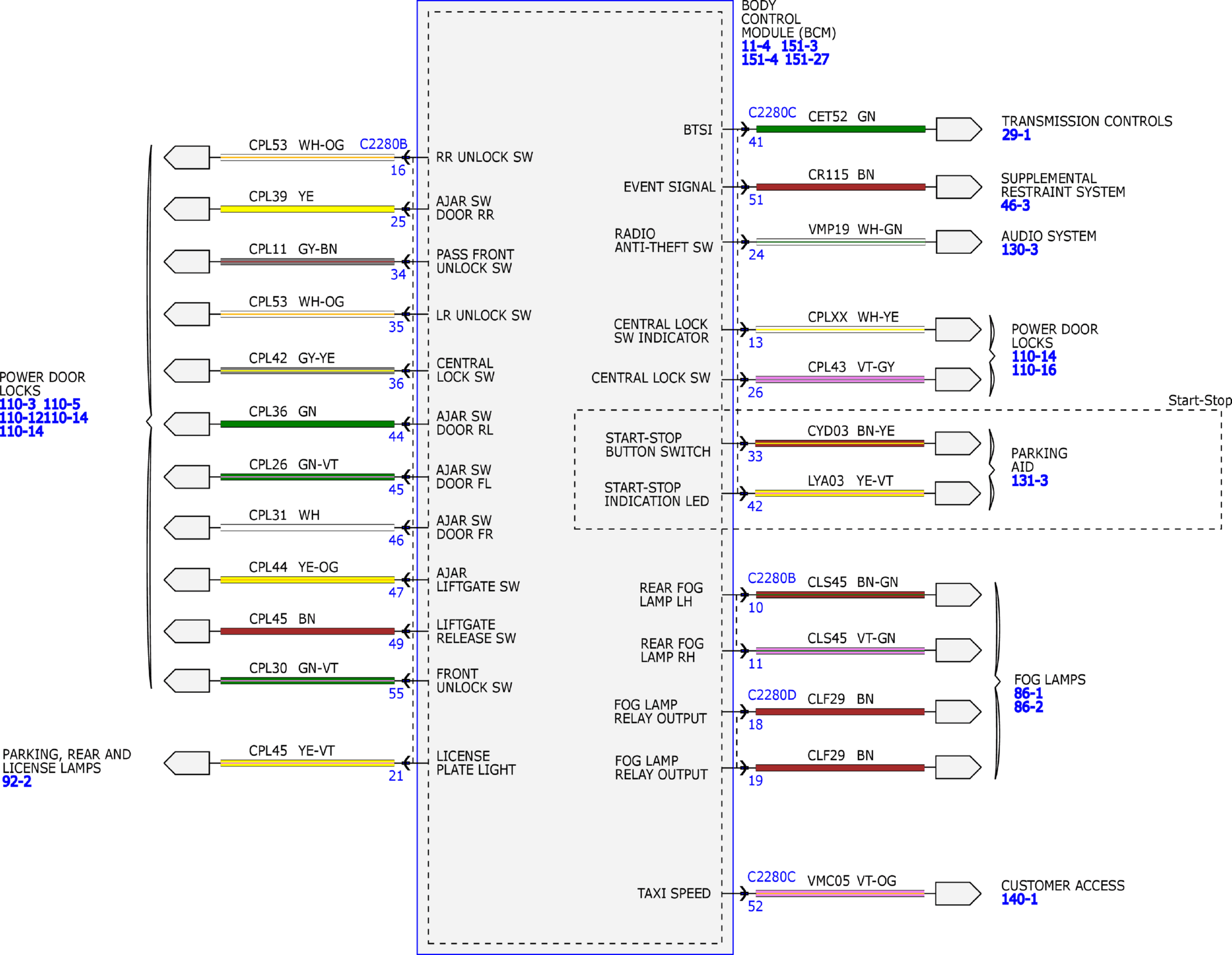

Fig 29: Power Distribution/BCM Wiring Diagram (29 of 35)

GFDW63633

Courtesy of FORD MOTOR COMPANY

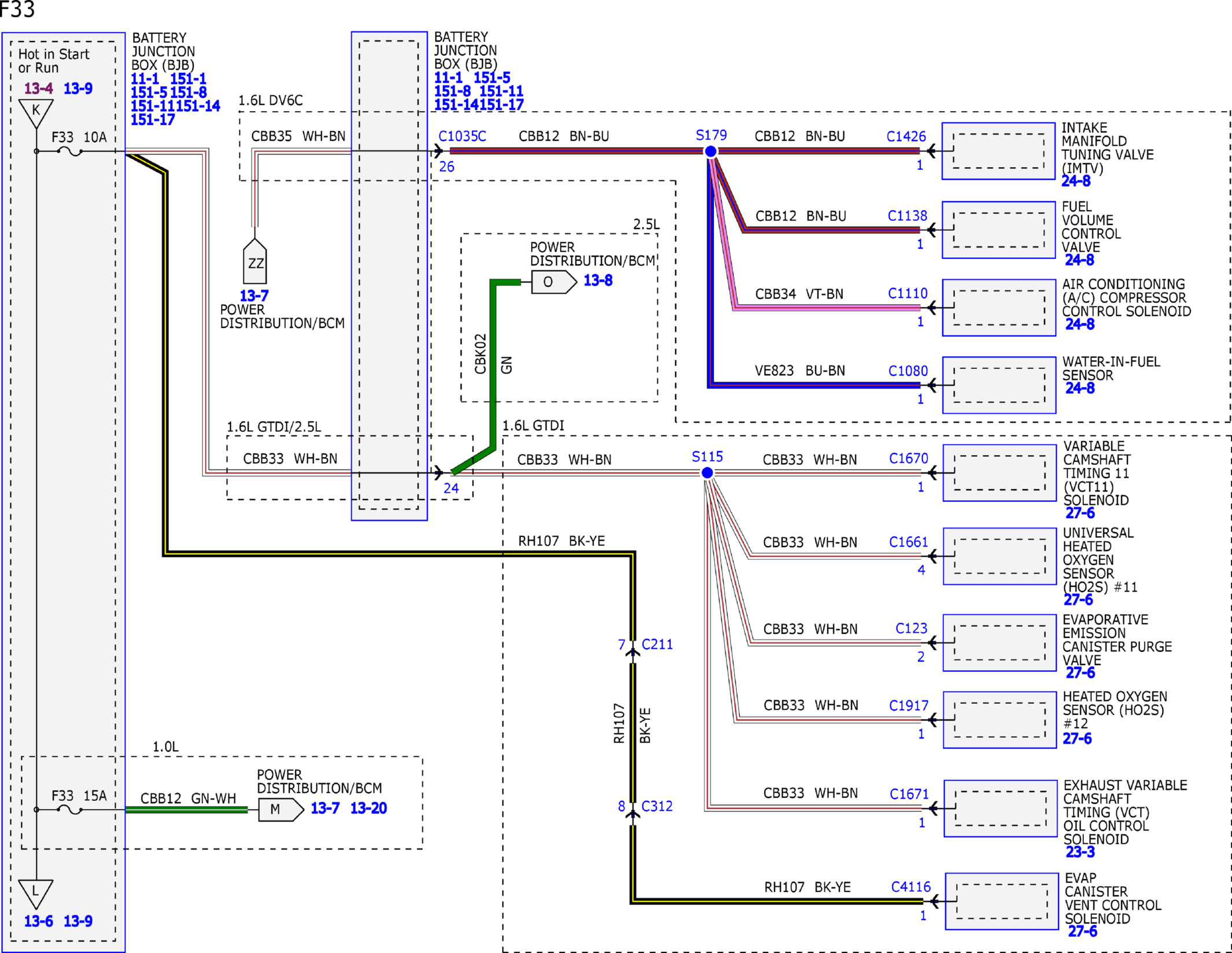

Fig 30: Power Distribution/BCM Wiring Diagram (30 of 35)

GFDW63634

Courtesy of FORD MOTOR COMPANY

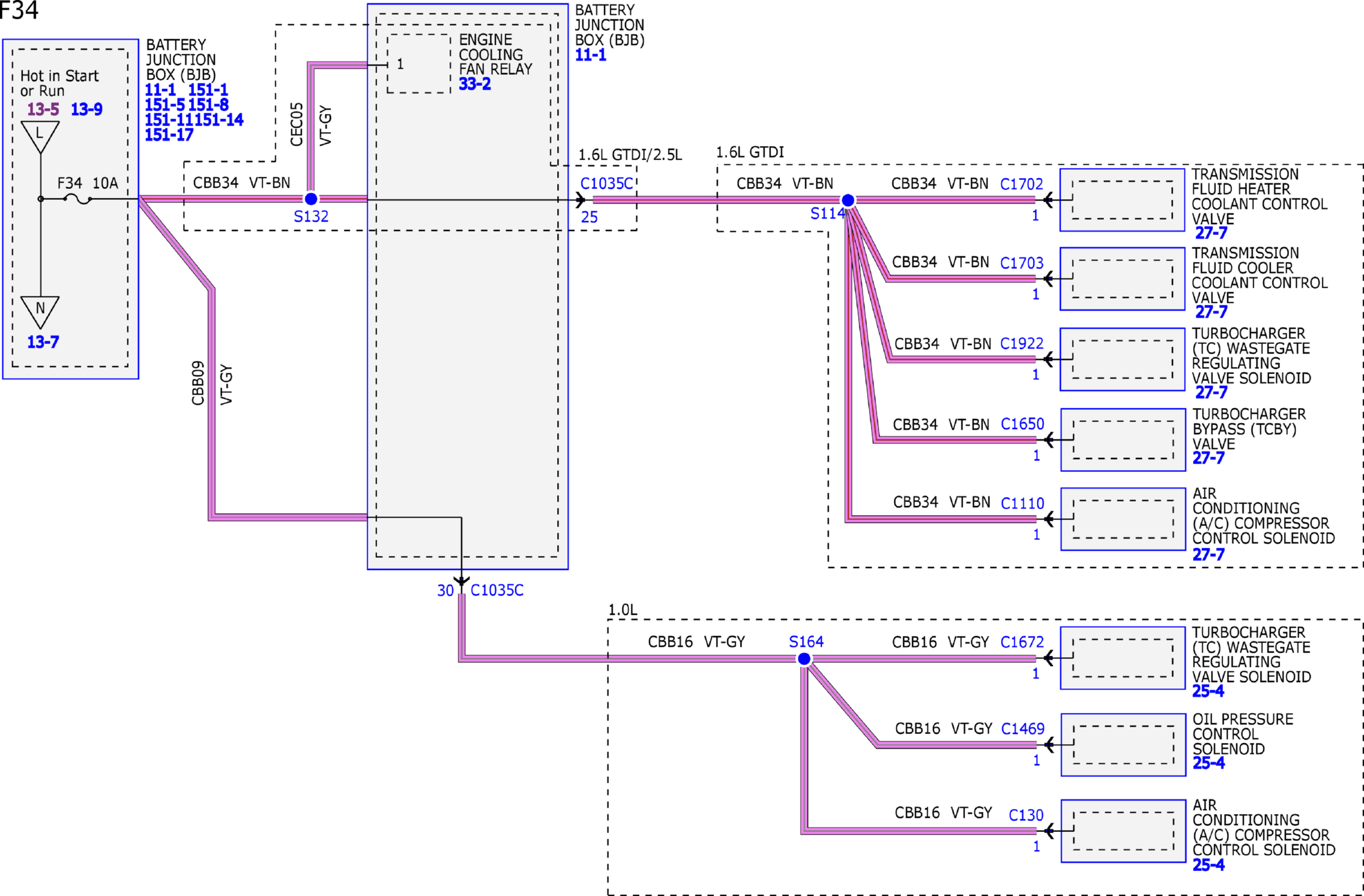

Fig 31: Power Distribution/BCM Wiring Diagram (31 of 35)

GFDW63635

Courtesy of FORD MOTOR COMPANY

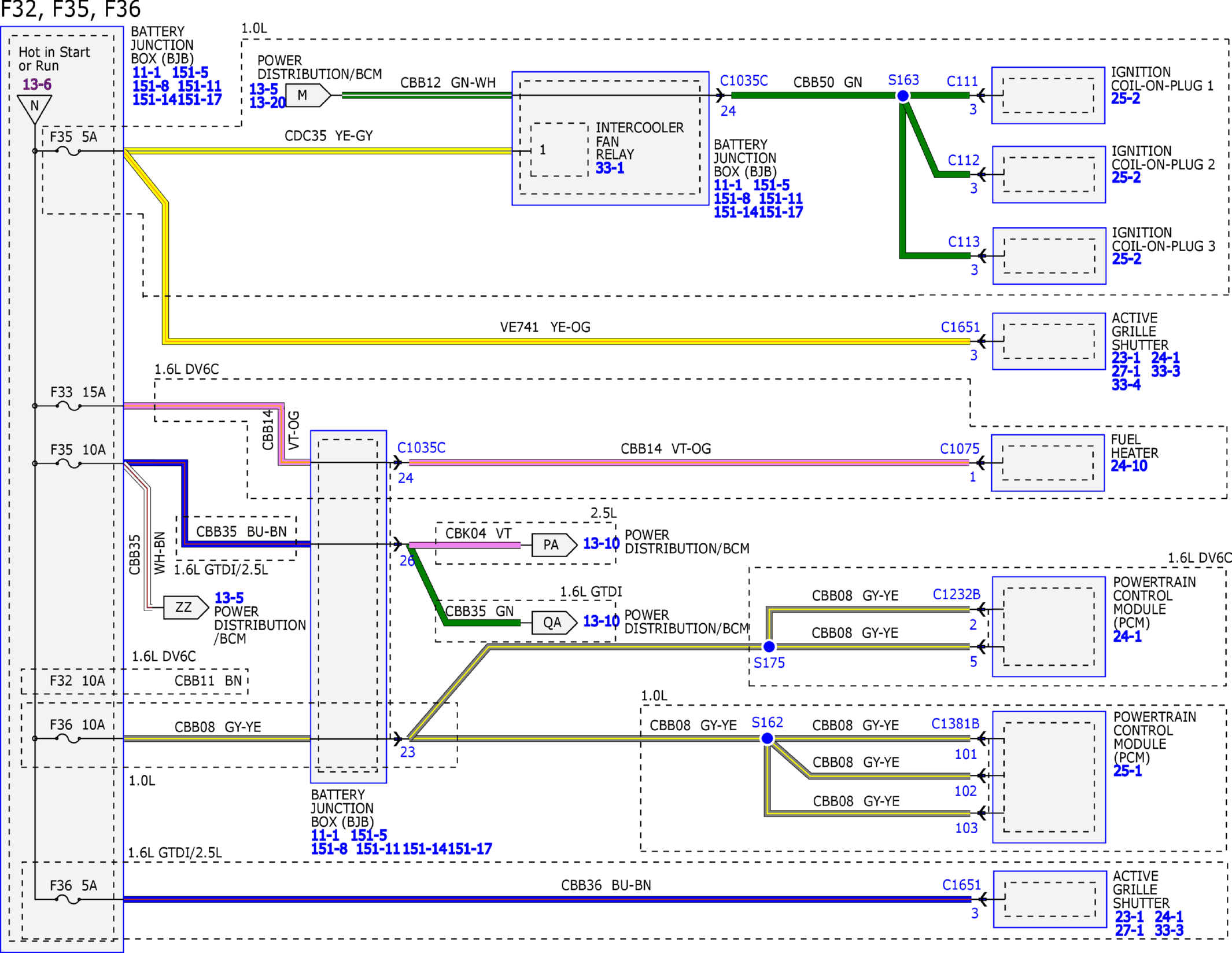

Fig 32: Power Distribution/BCM Wiring Diagram (32 of 35)

GFDW63636

Courtesy of FORD MOTOR COMPANY

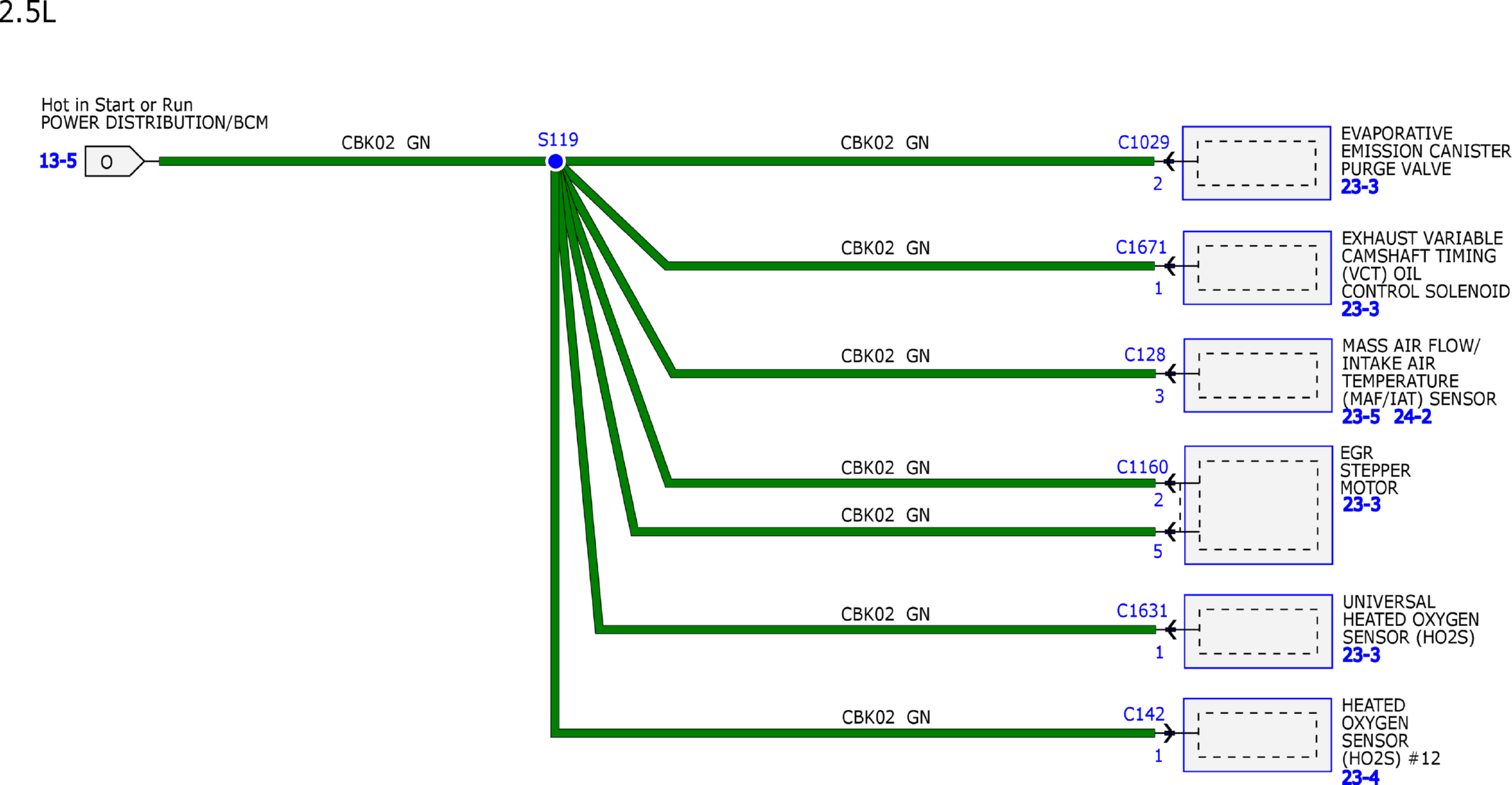

Fig 33: Power Distribution/BCM Wiring Diagram (33 of 35)

GFDW63637

Courtesy of FORD MOTOR COMPANY

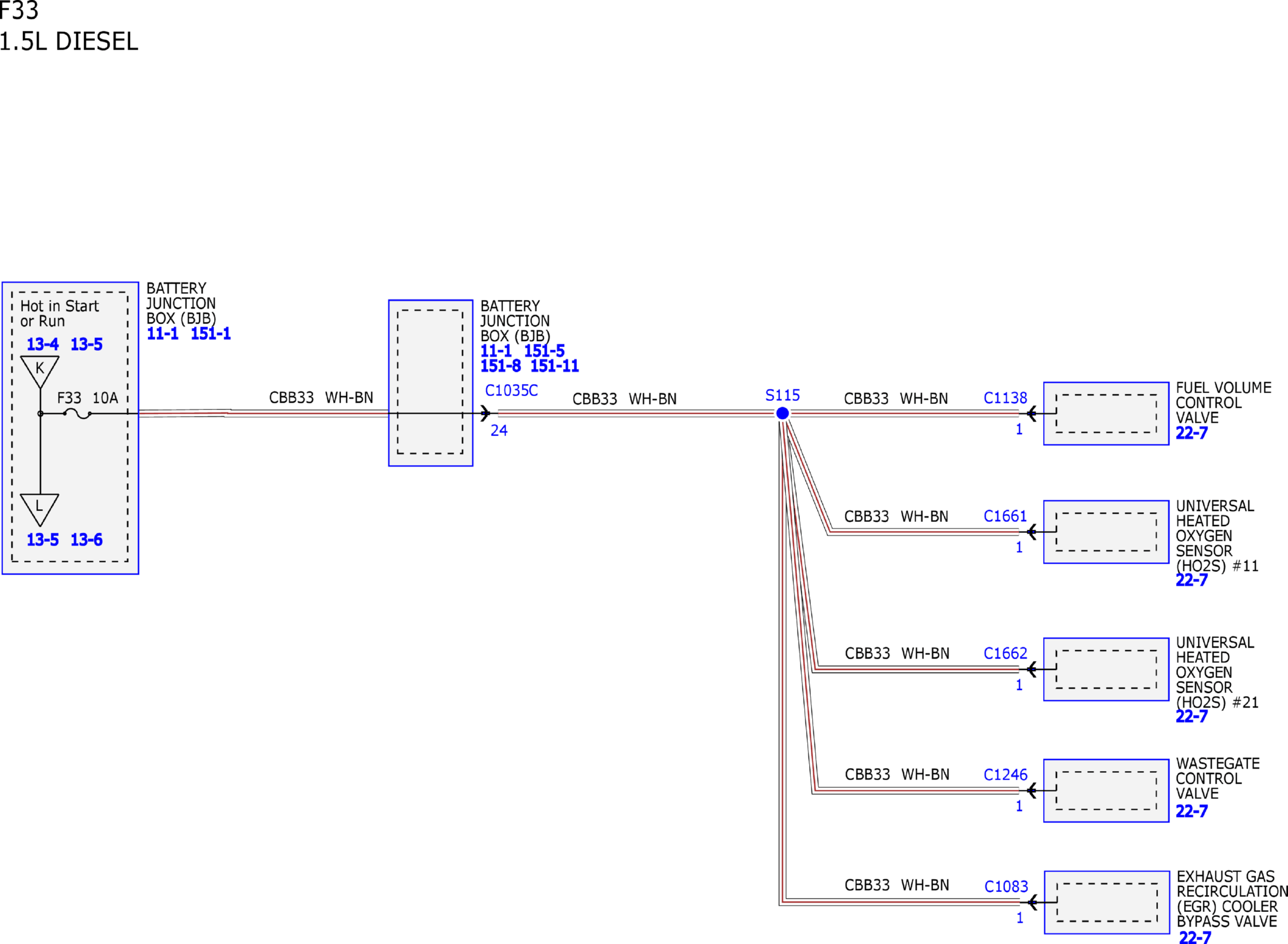

Fig 34: Power Distribution/BCM Wiring Diagram (34 of 35)

GFDW63638

Courtesy of FORD MOTOR COMPANY

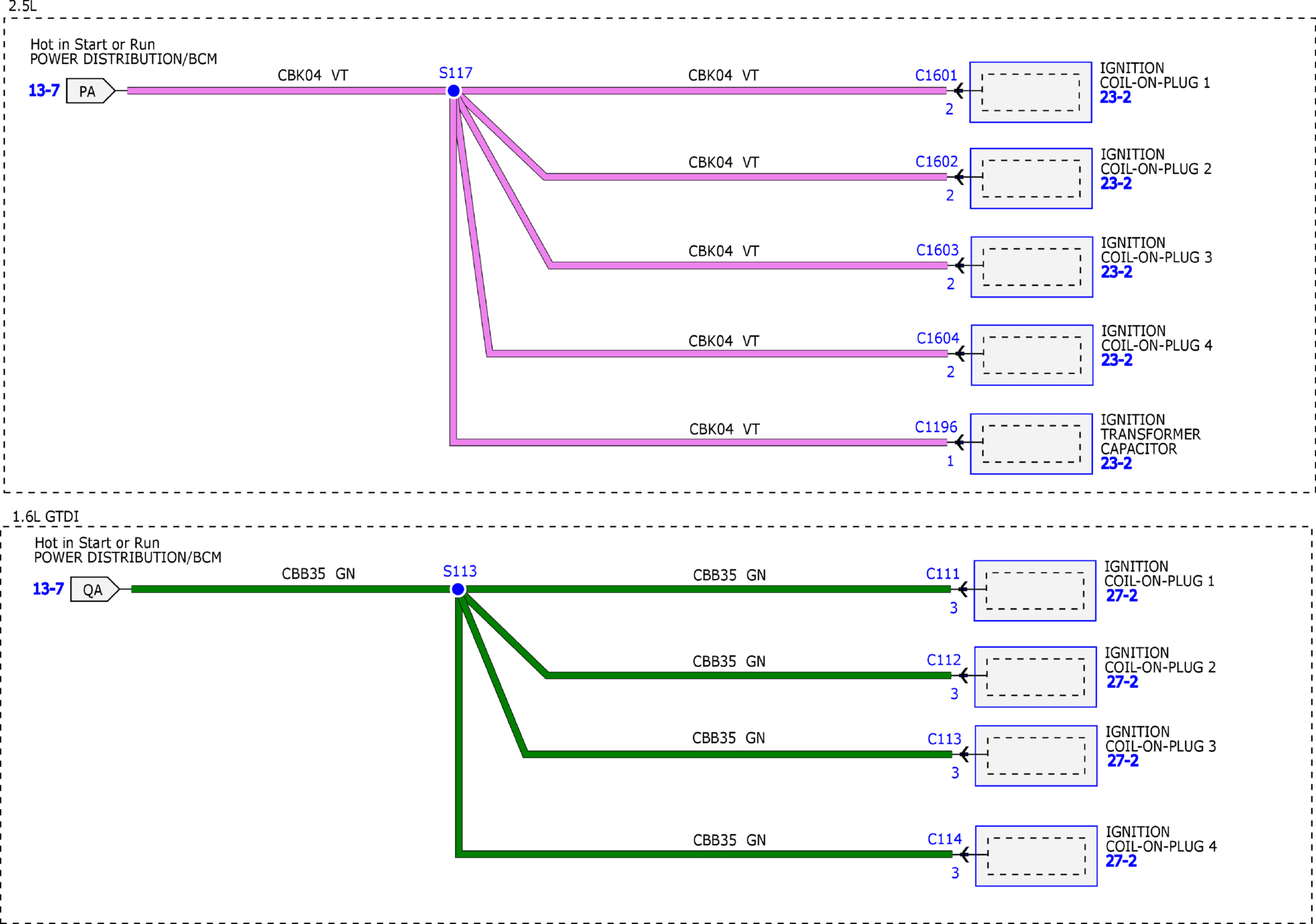

Fig 35: Power Distribution/BCM Wiring Diagram (35 of 35)

GFDW63639

Courtesy of FORD MOTOR COMPANY
