Power Windows

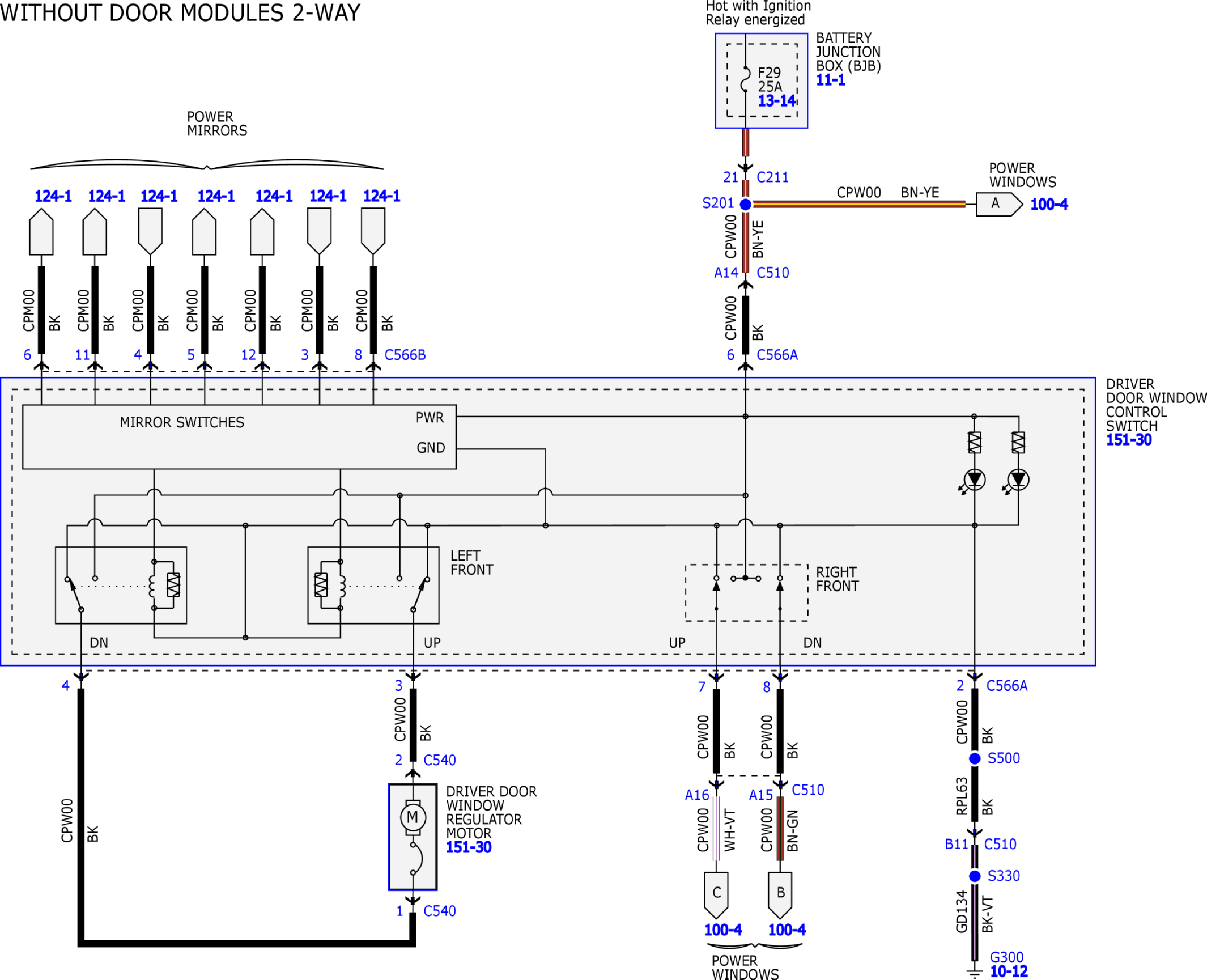

Fig 1: Power Windows Wiring Diagram (1 of 15)

GFDW63668

Courtesy of FORD MOTOR COMPANY

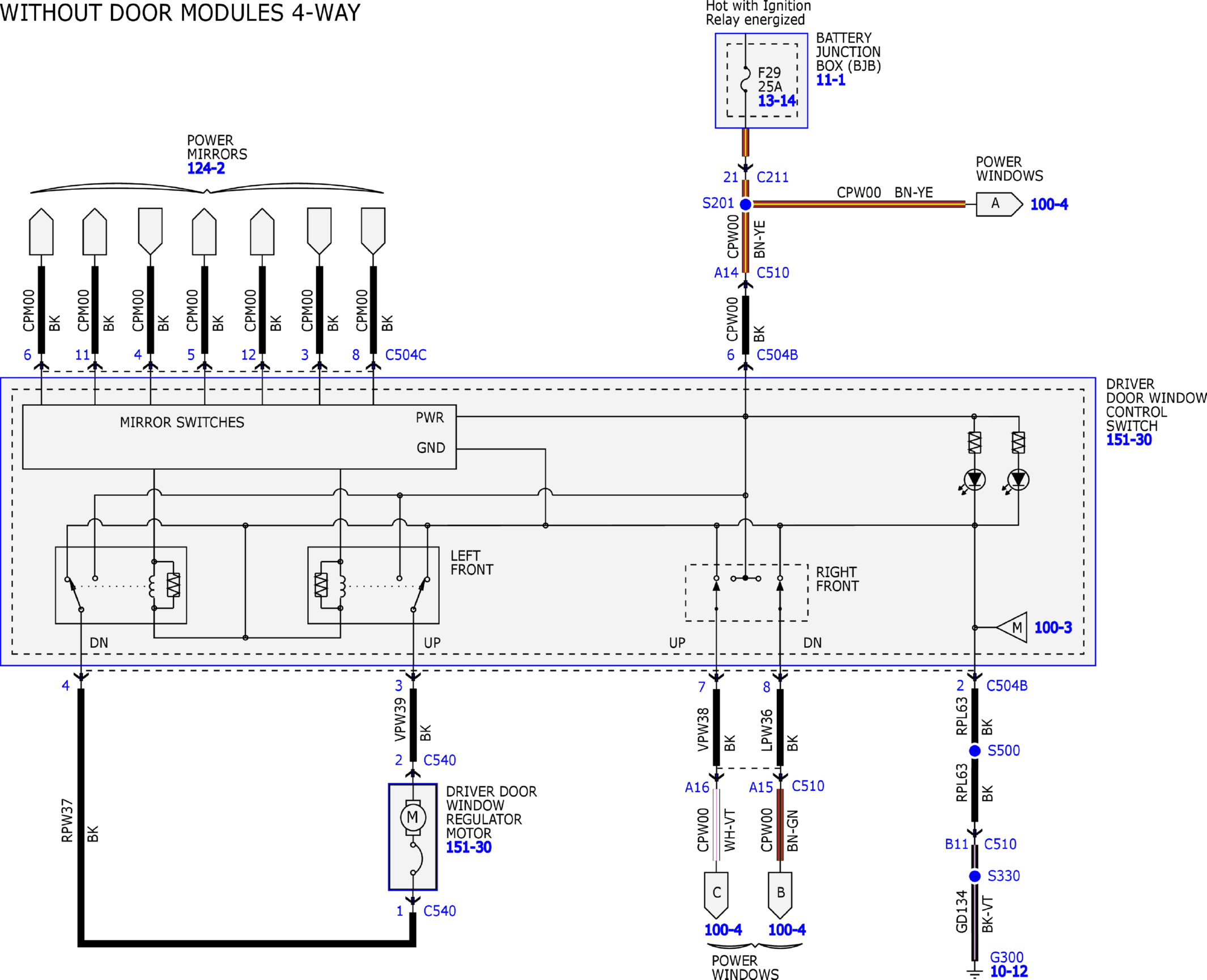

Fig 2: Power Windows Wiring Diagram (2 of 15)

GFDW63669

Courtesy of FORD MOTOR COMPANY

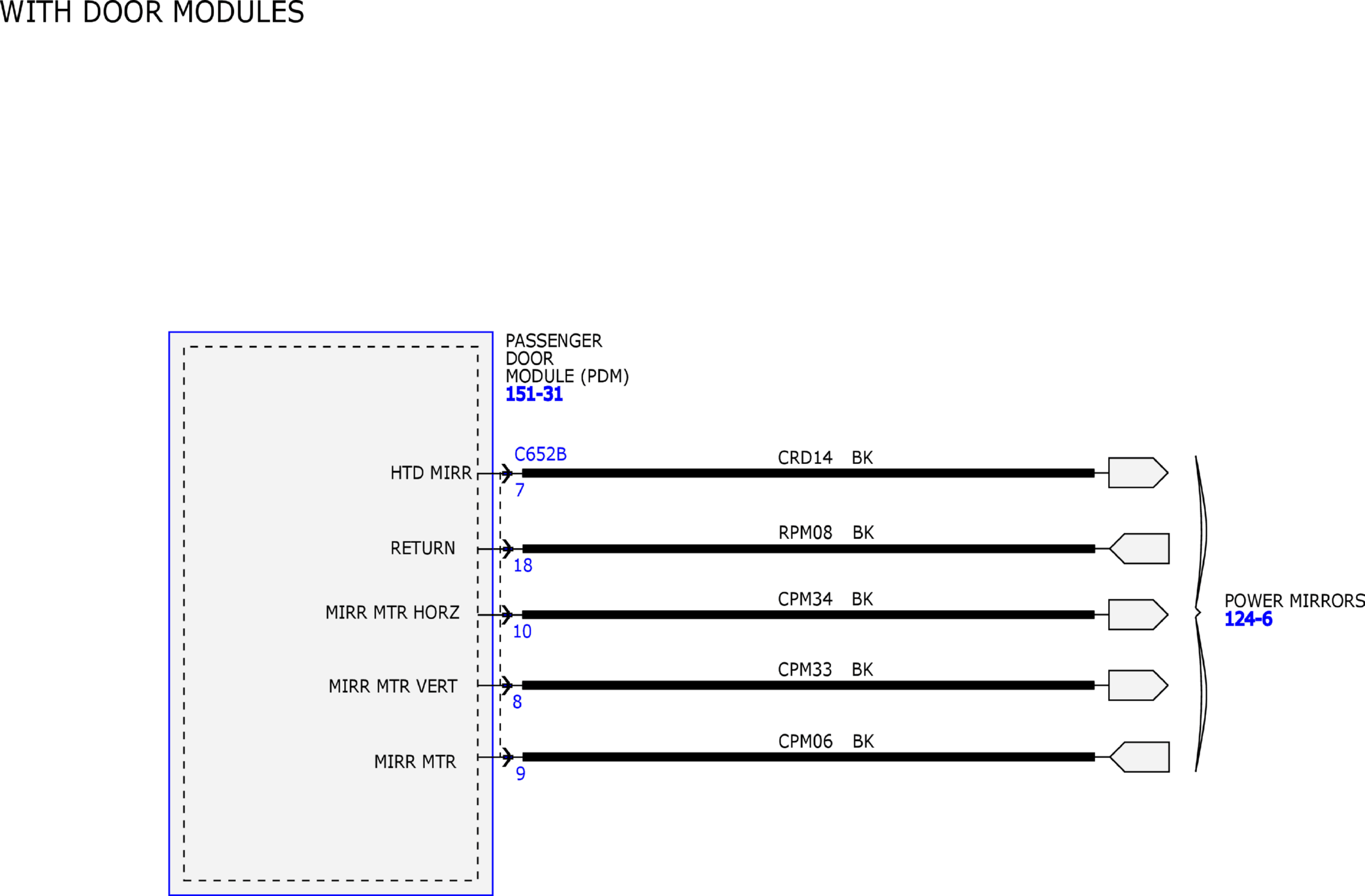

Fig 3: Power Windows Wiring Diagram (3 of 15)

GFDW63670

Courtesy of FORD MOTOR COMPANY

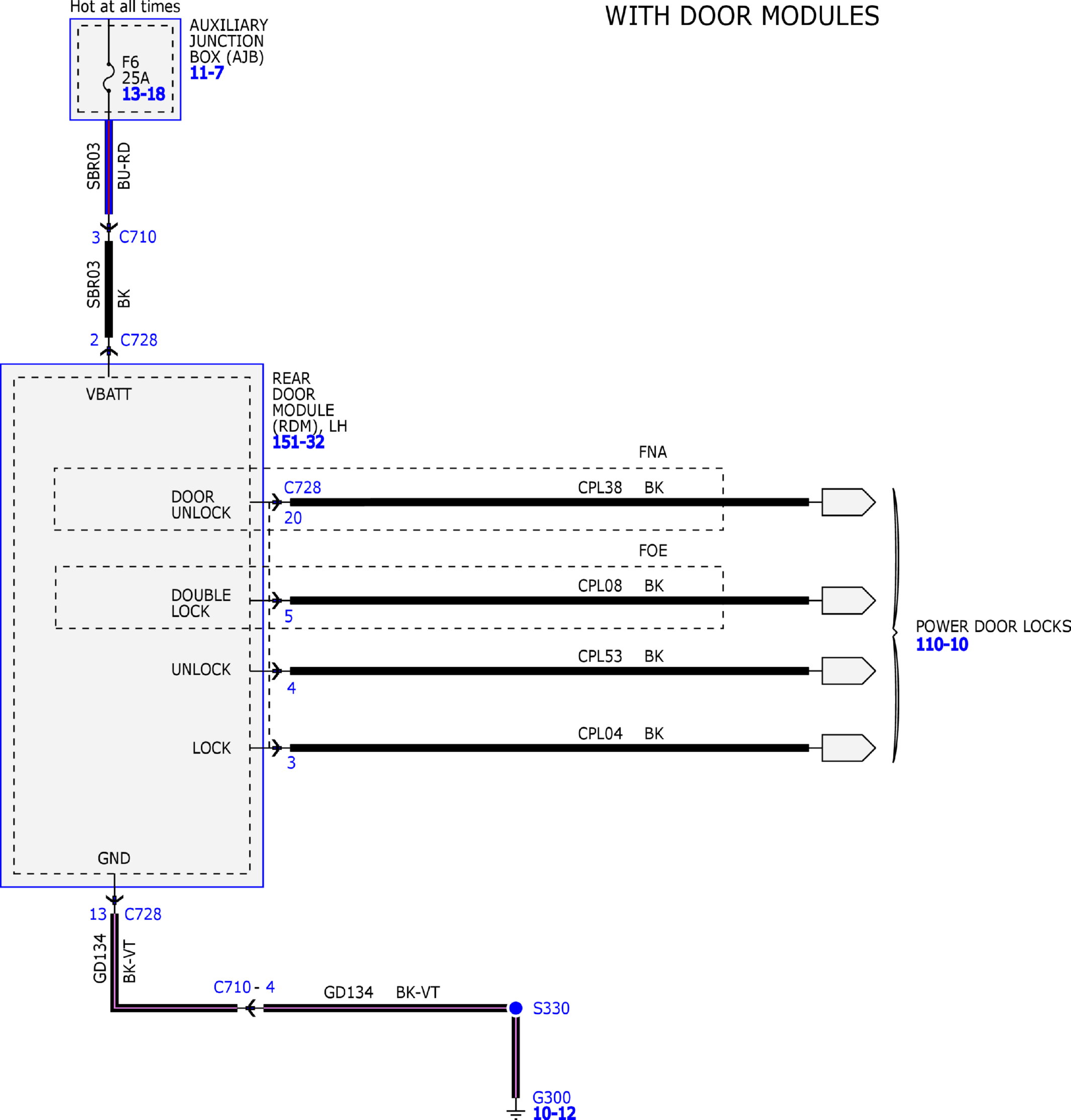

Fig 4: Power Windows Wiring Diagram (4 of 15)

GFDW63671

Courtesy of FORD MOTOR COMPANY

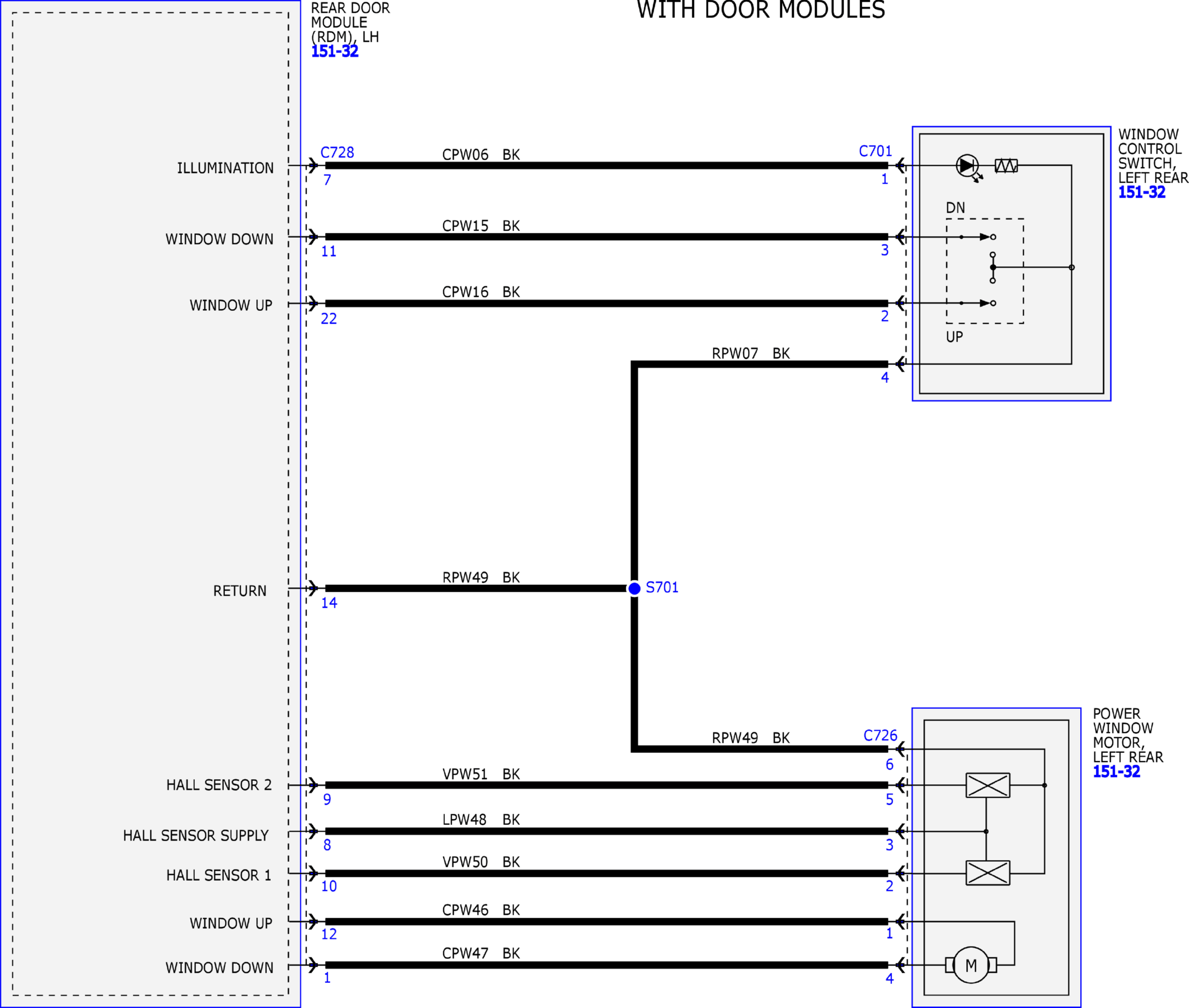

Fig 5: Power Windows Wiring Diagram (5 of 15)

GFDW63672

Courtesy of FORD MOTOR COMPANY

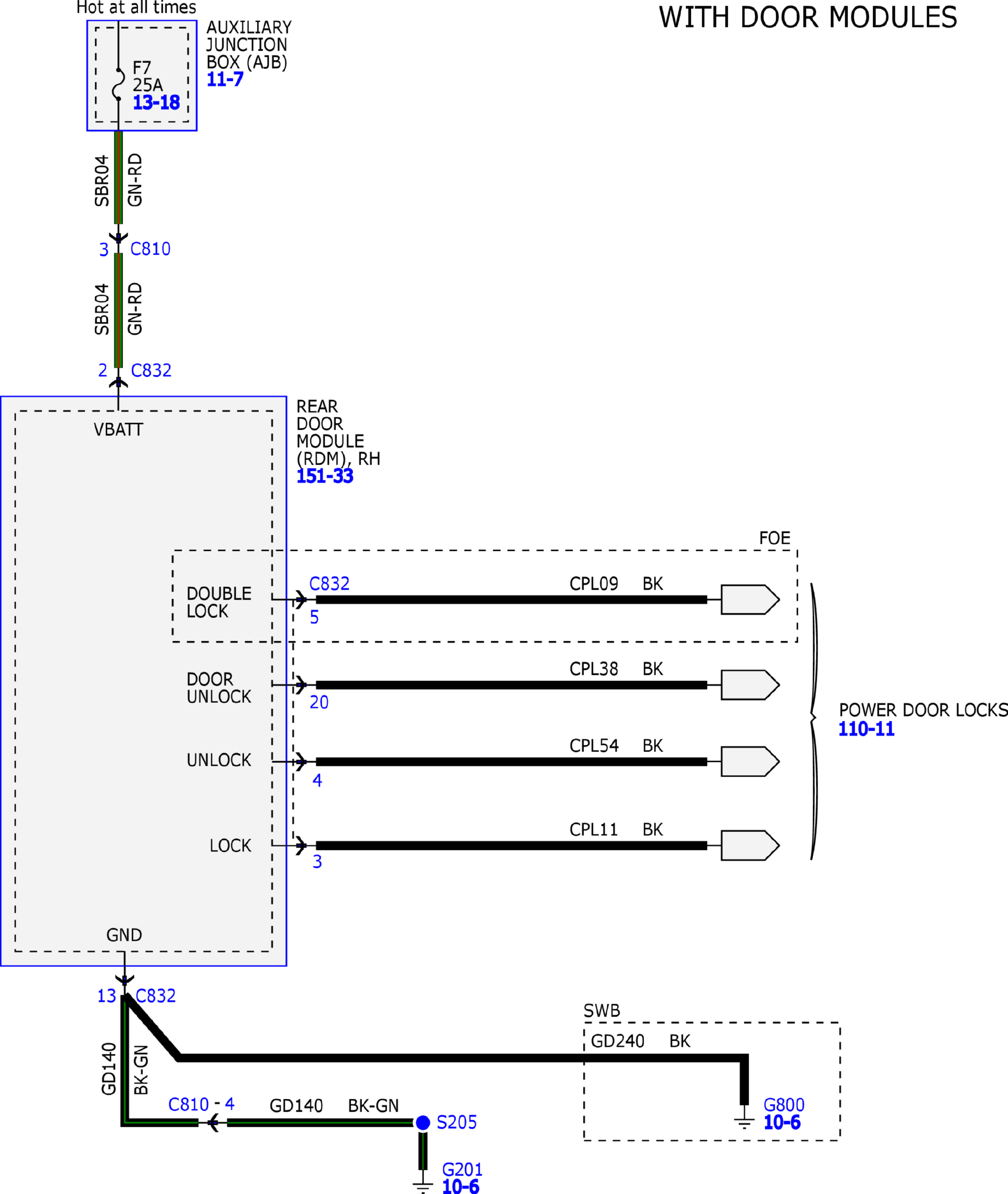

Fig 6: Power Windows Wiring Diagram (6 of 15)

GFDW63673

Courtesy of FORD MOTOR COMPANY

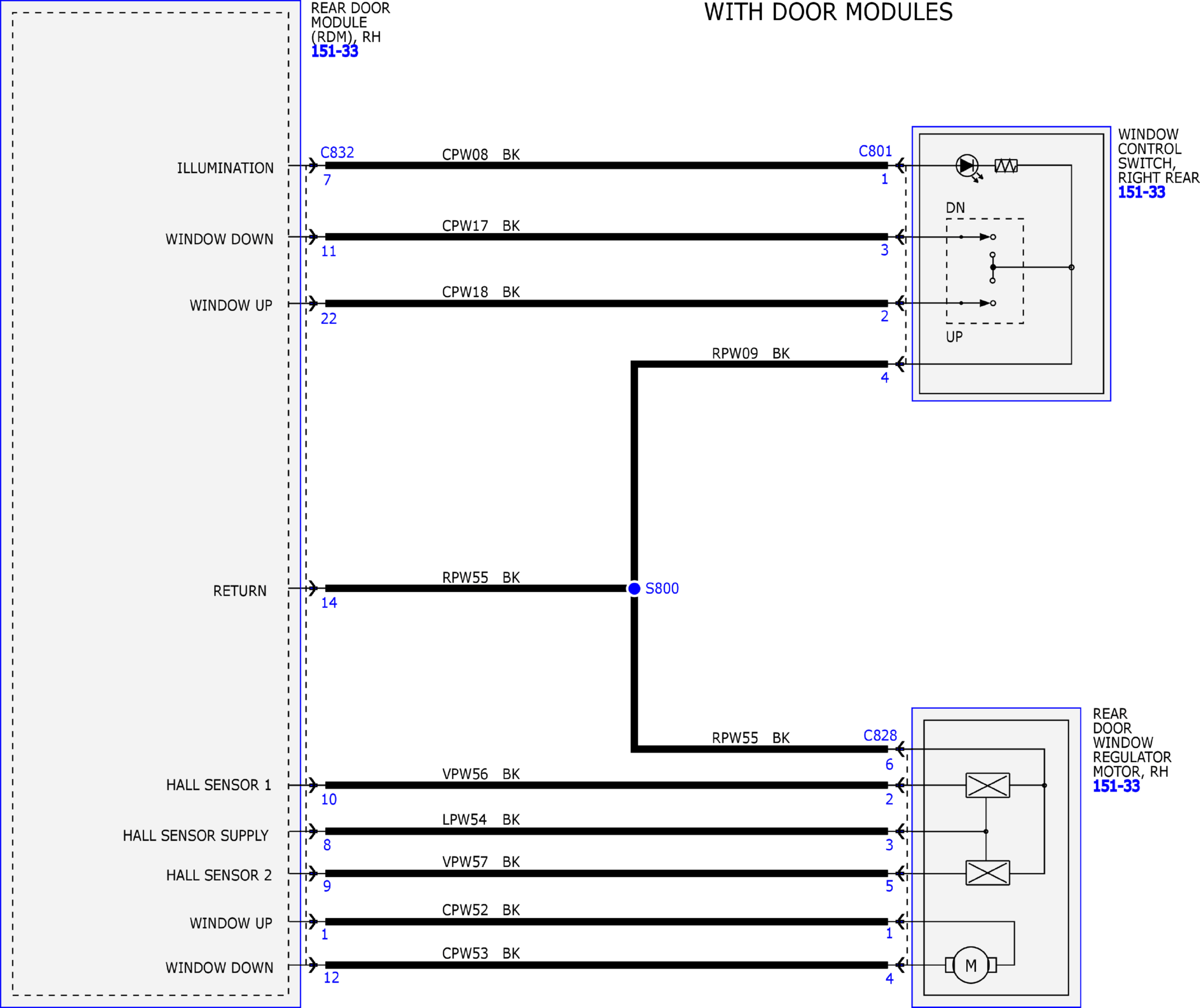

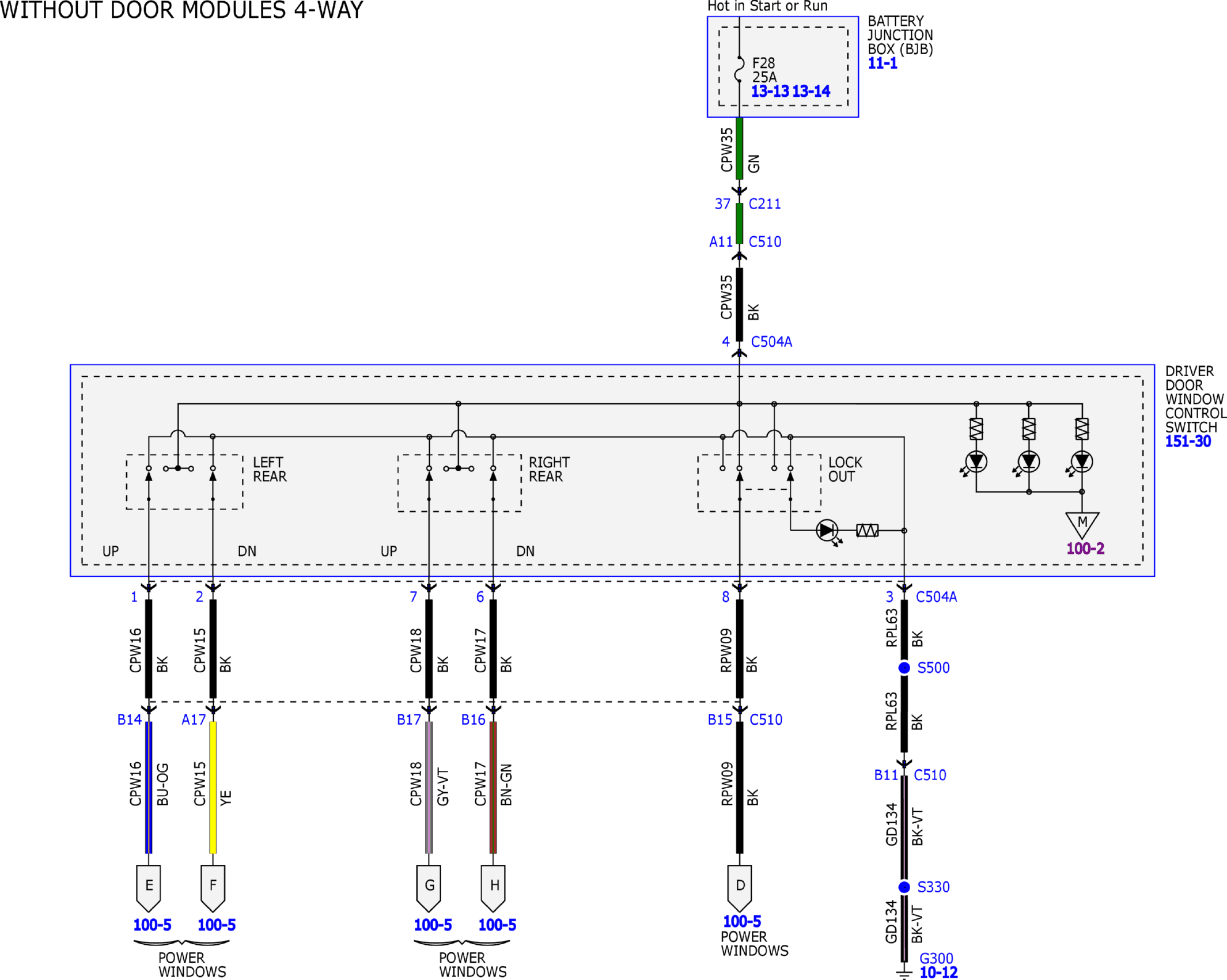

Fig 7: Power Windows Wiring Diagram (7 of 15)

GFDW63674

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Windows Wiring Diagram (8 of 15)

GFDW63675

Courtesy of FORD MOTOR COMPANY

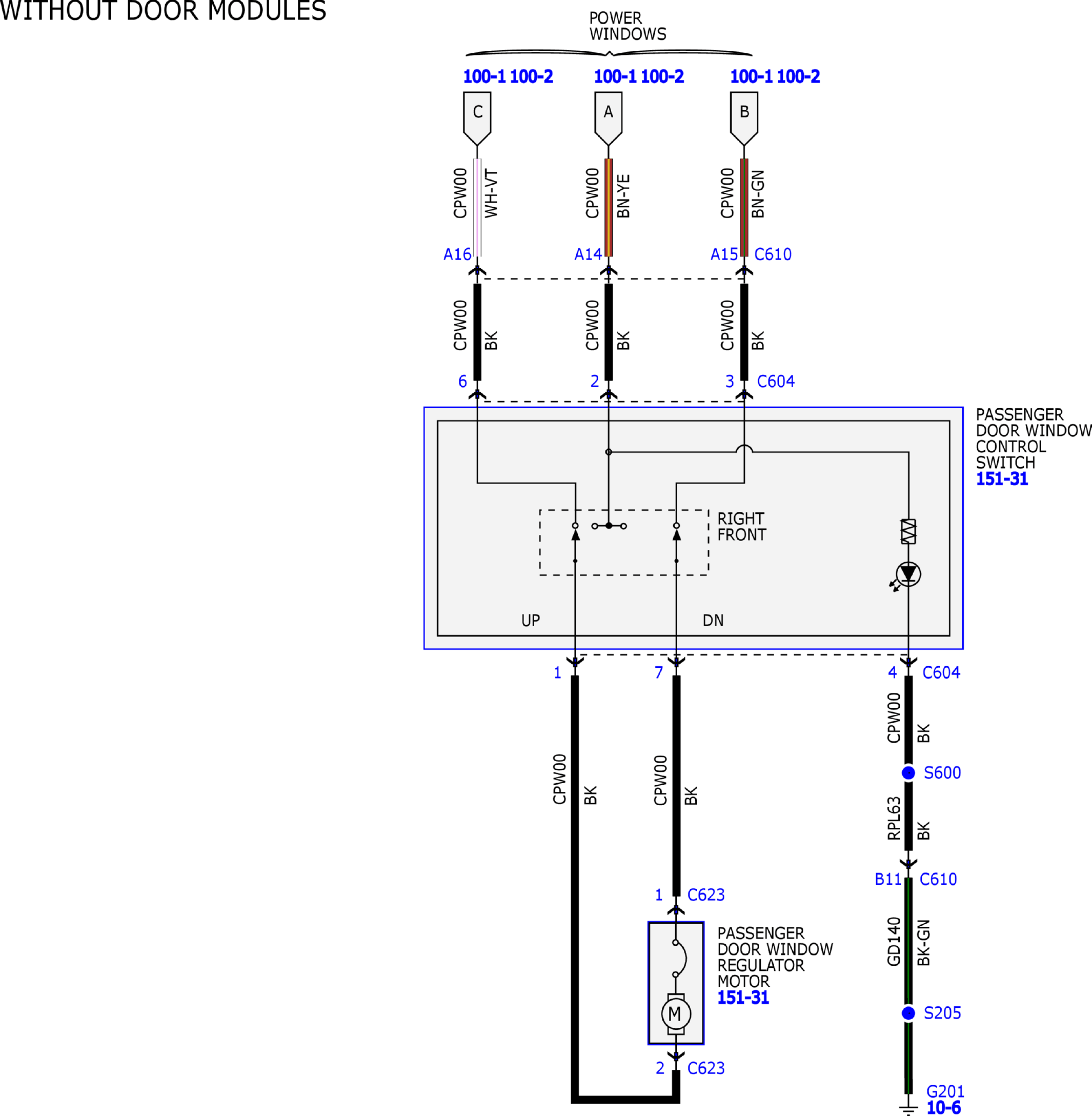

Fig 9: Power Windows Wiring Diagram (9 of 15)

GFDW63676

Courtesy of FORD MOTOR COMPANY

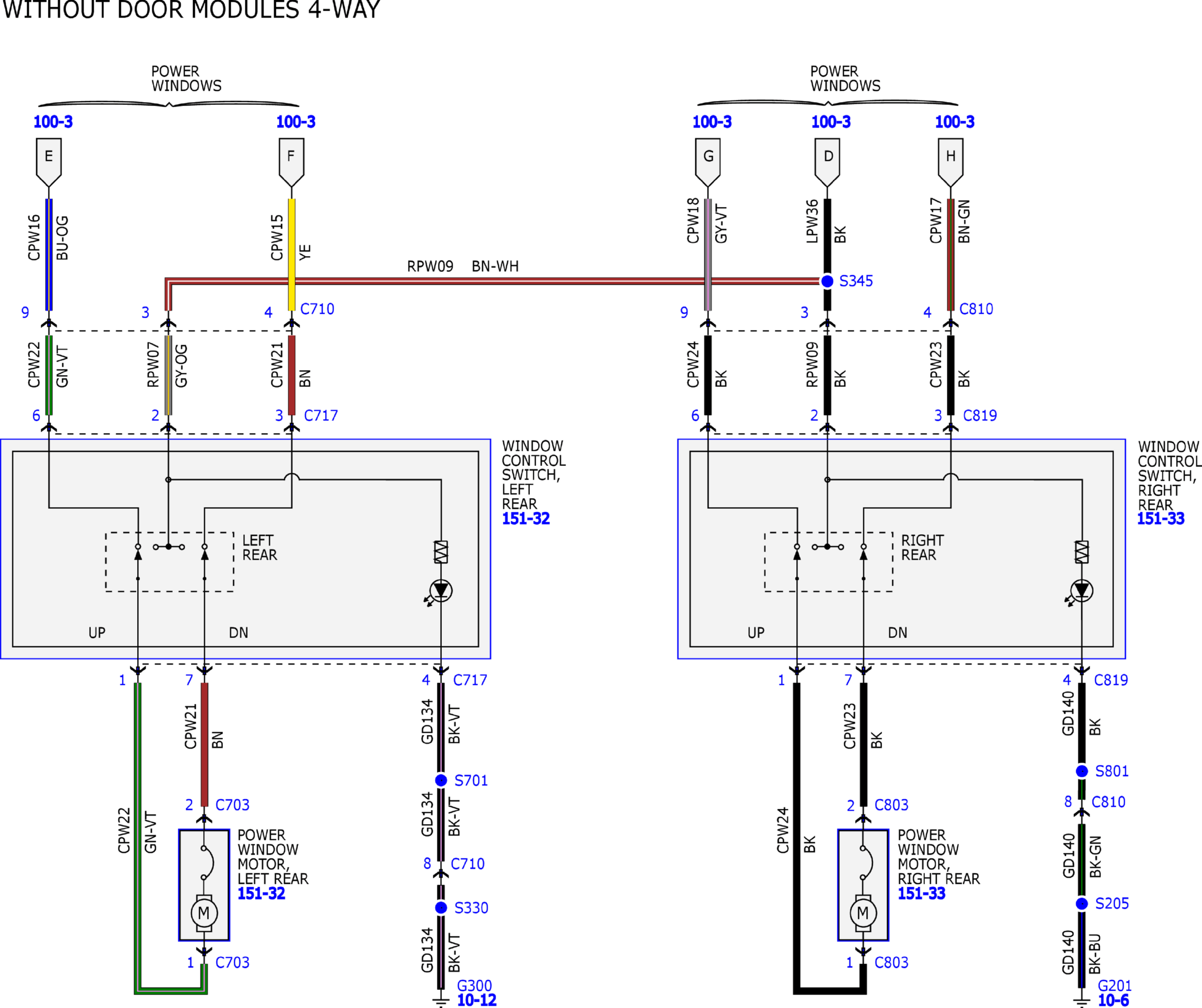

Fig 10: Power Windows Wiring Diagram (10 of 15)

GFDW63677

Courtesy of FORD MOTOR COMPANY

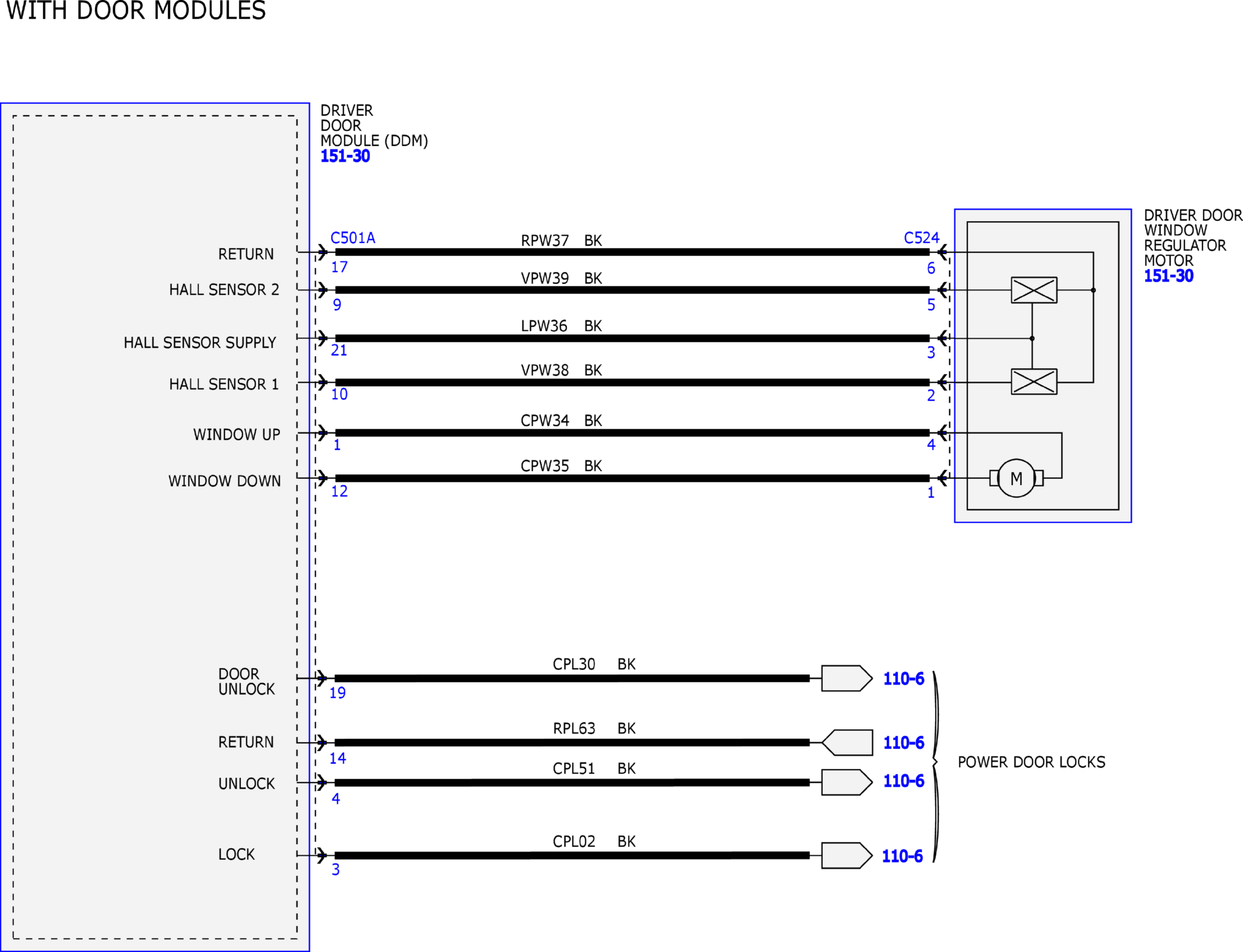

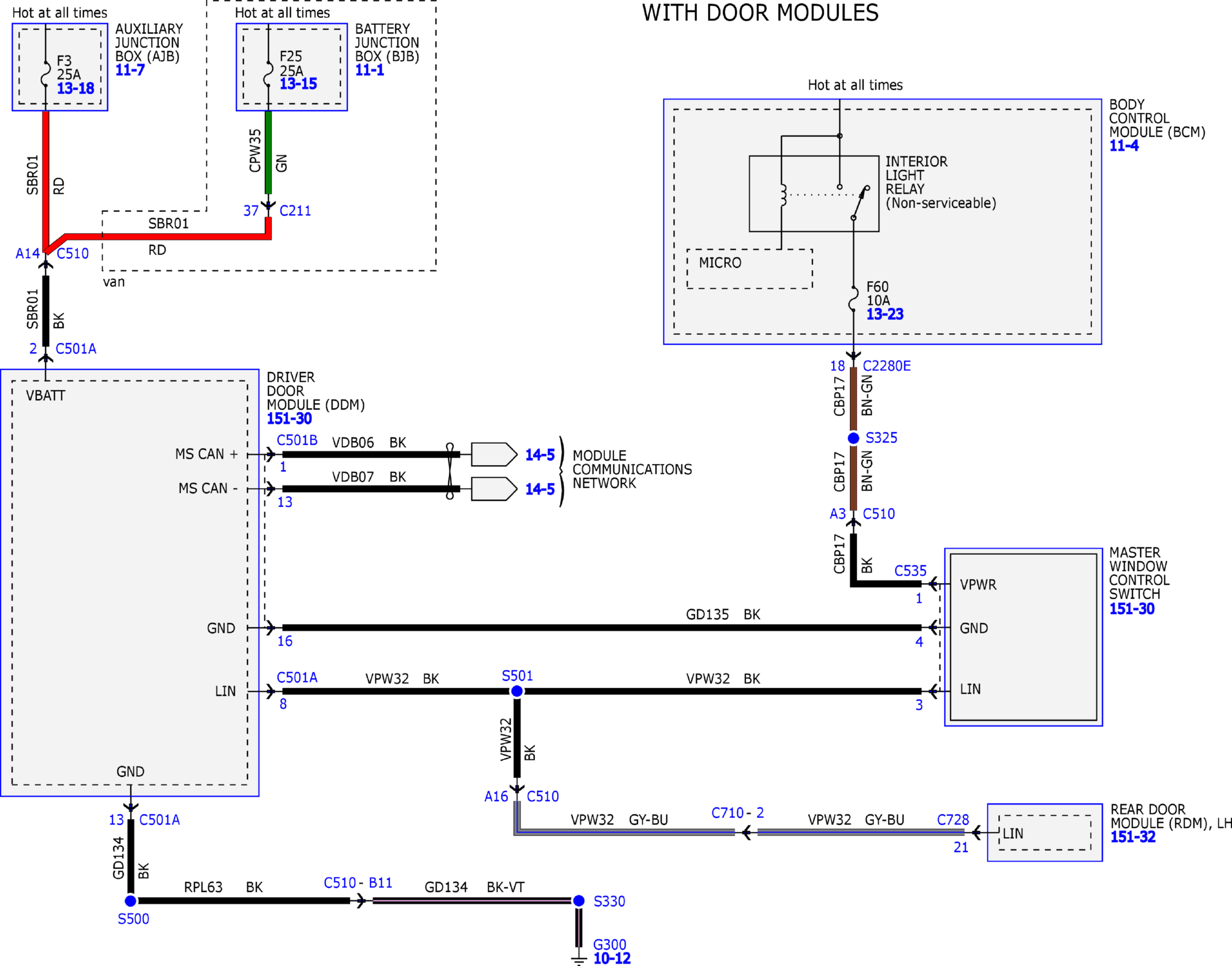

Fig 11: Power Windows Wiring Diagram (11 of 15)

GFDW63678

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Windows Wiring Diagram (12 of 15)

GFDW63679

Courtesy of FORD MOTOR COMPANY

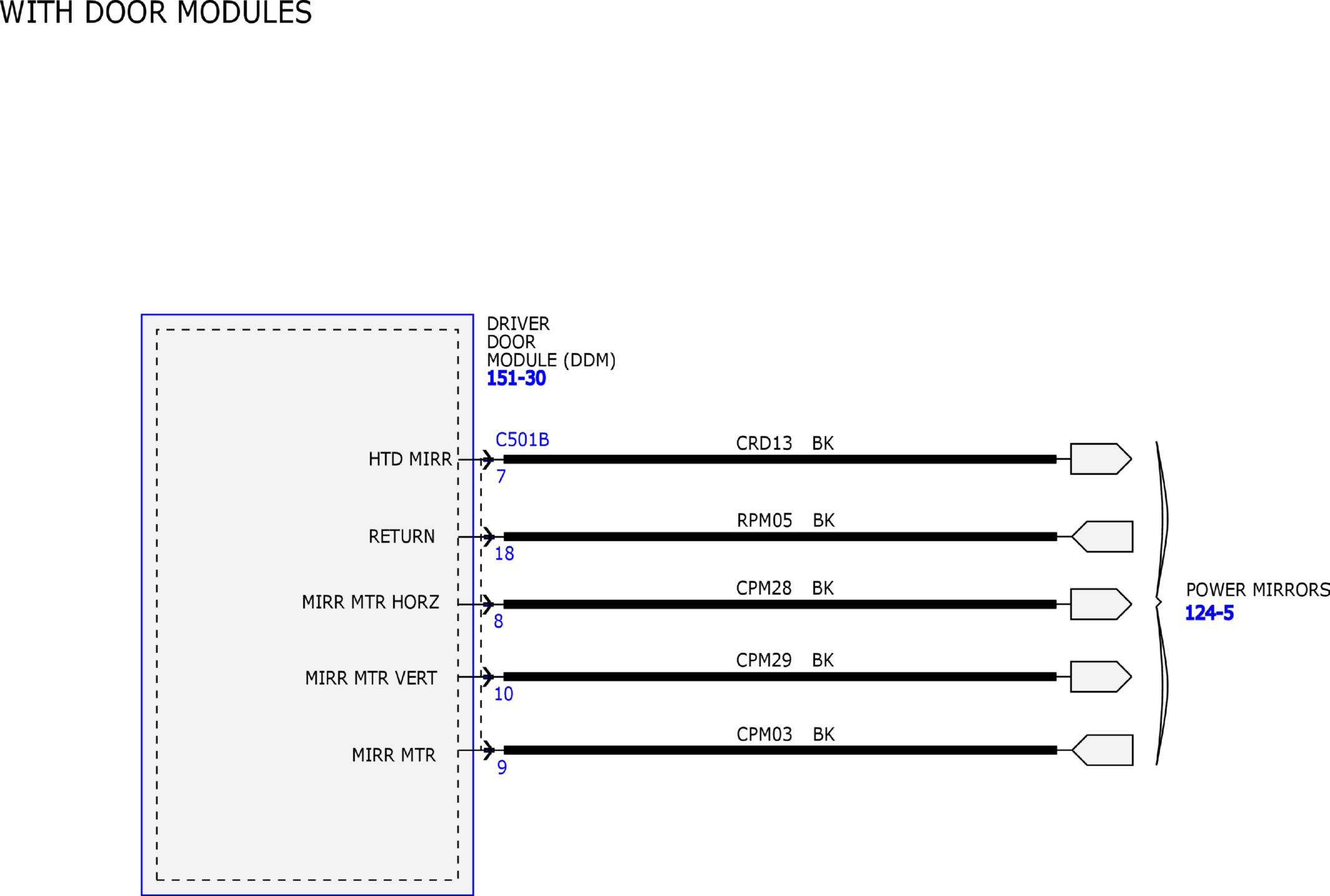

Fig 13: Power Windows Wiring Diagram (13 of 15)

GFDW63680

Courtesy of FORD MOTOR COMPANY

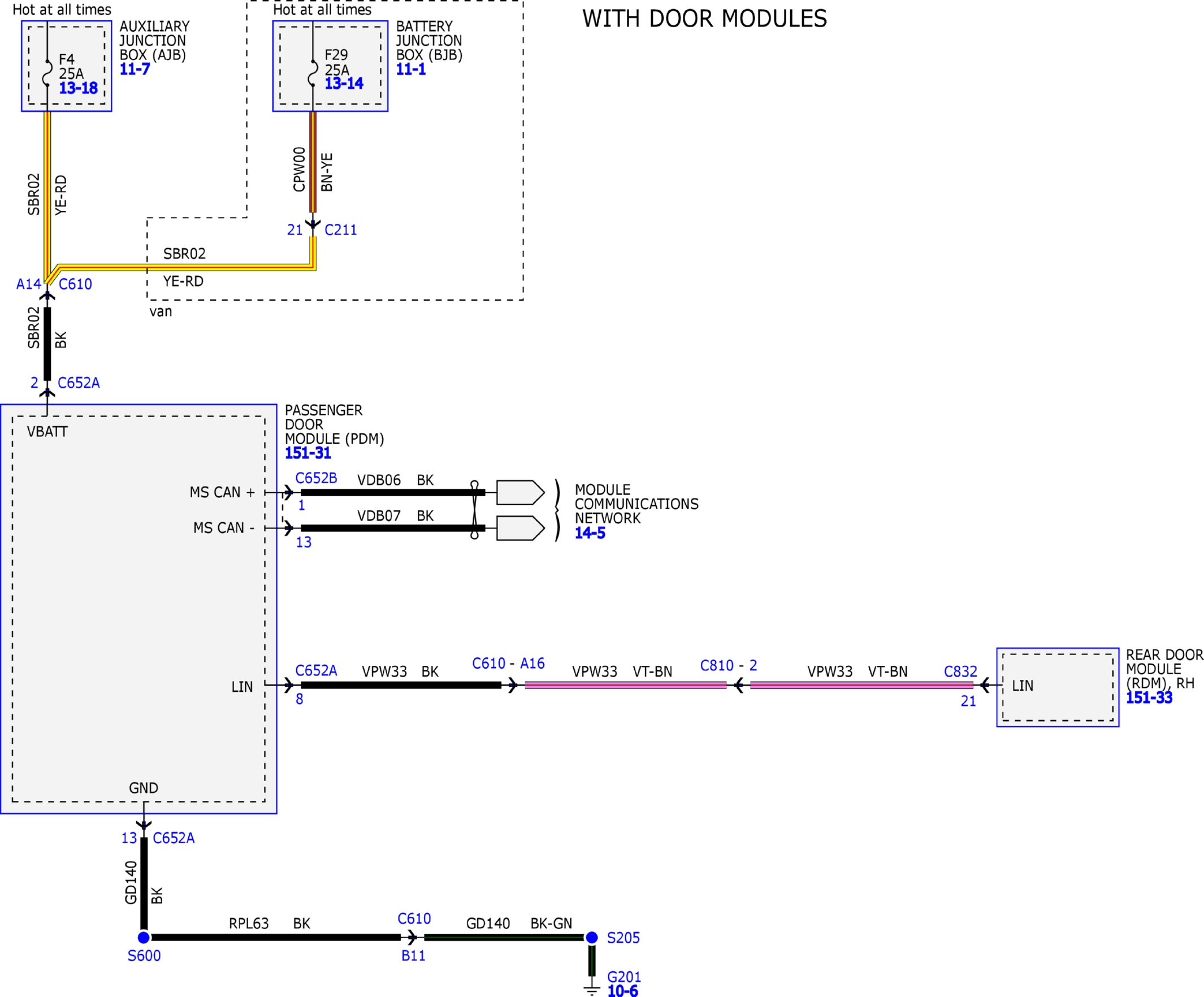

Fig 14: Power Windows Wiring Diagram (14 of 15)

GFDW63681

Courtesy of FORD MOTOR COMPANY

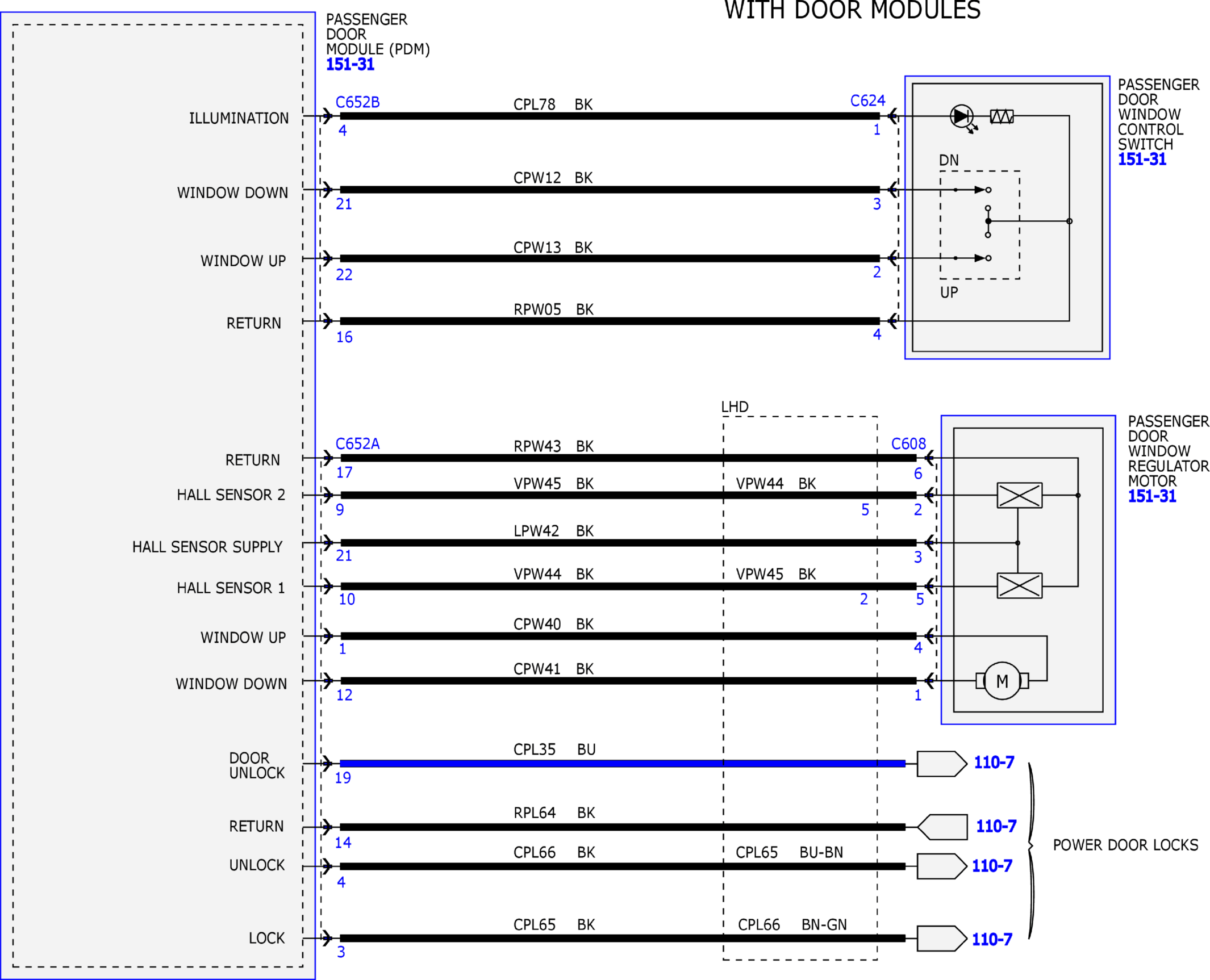

Fig 15: Power Windows Wiring Diagram (15 of 15)

GFDW63682

Courtesy of FORD MOTOR COMPANY
