Steering Gear: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Follow the health and safety precautions. Refer to: Health and Safety Precautions .

  1. 2.

    Remove the front subframe. Refer to: Front Subframe .

  1. 3.

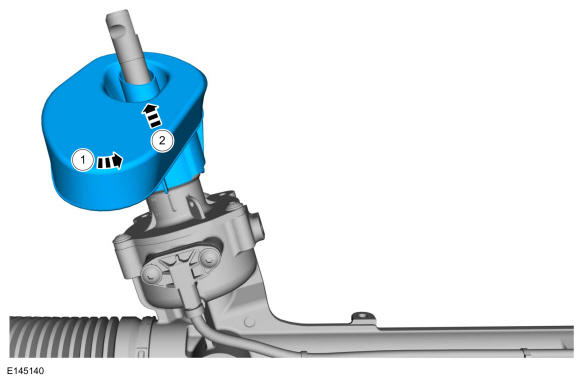

    Remove the steering gear boot as shown.
GFD148385Courtesy of FORD MOTOR COMPANY

  1. 4.

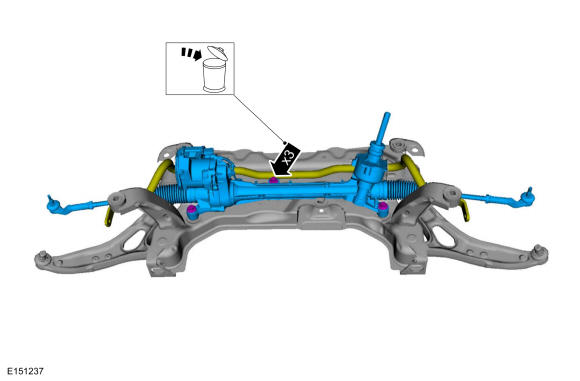

    Position aside the front stabilizer bar. Remove and discard the steering gear bolts and remove the steering gear.
GFD148386Courtesy of FORD MOTOR COMPANY
