Output Shaft Speed (OSS) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Remove the main control valve body. Refer to: Main Control Valve Body .

1. 2.

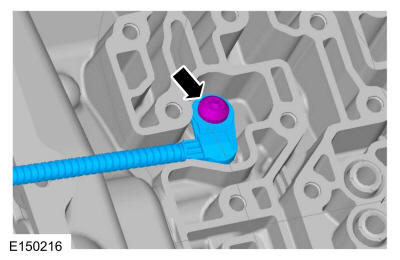

   Remove the bolt and remove the OSS sensor.

   Torque: 89 lb.in (10 Nm)
