Solenoid Body: Installation

1.

Inspect and install the check balls and the solenoid damper.

GFD149773

Courtesy of FORD MOTOR COMPANY

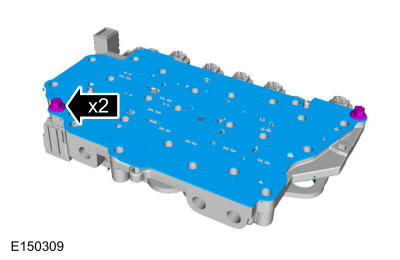

2.

NOTE: Make sure that a new component is installed.

Install the new separator plate and the separator plate-to-solenoid body bolts.

Torque: 89 lb.in (10 Nm)

GFD149793

Courtesy of FORD MOTOR COMPANY

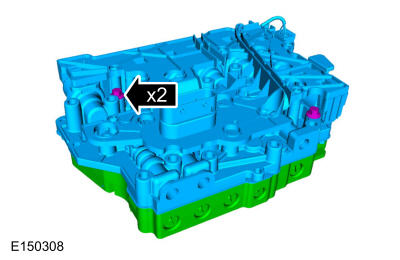

3.

Position the solenoid body on the main control valve body and install the solenoid body-to-valve body bolts.
Torque: 89 lb.in (10 Nm)

GFD149794

Courtesy of FORD MOTOR COMPANY

4.

Install the main control valve body. Refer to: Main Control Valve Body .
