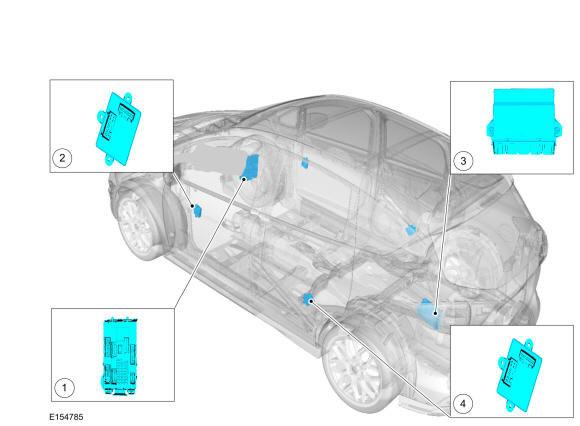

Module Controlled Functions - Component Location

GFD224534

Courtesy of FORD MOTOR COMPANY

Item	Description
1	BCM
2	Front door module
3	RFA module
4	Rear door module
