Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

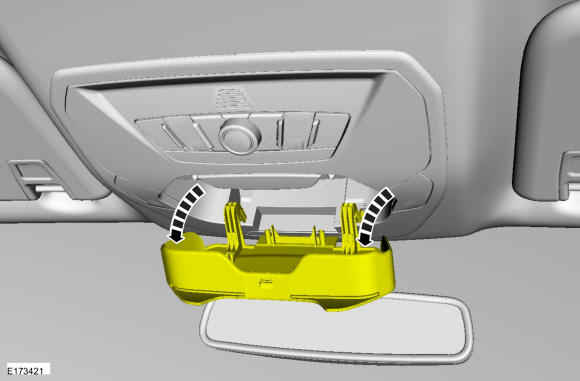

  1. Open the sun glasses bin.
    GFD224907Courtesy of FORD MOTOR COMPANY

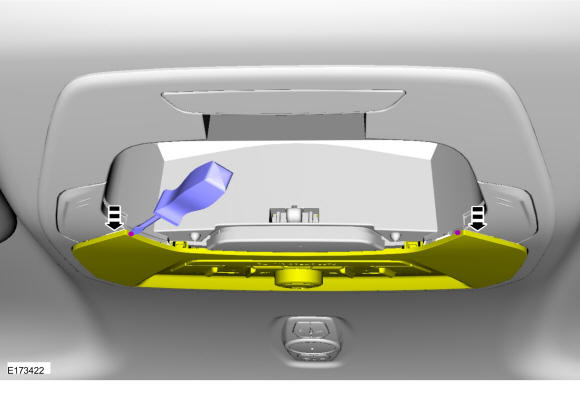

  2. NOTE: Sun glasses bin shown removed for clarity.

    Using a suitable tool pry both corners of the switch bezel down.

    GFD224908Courtesy of FORD MOTOR COMPANY

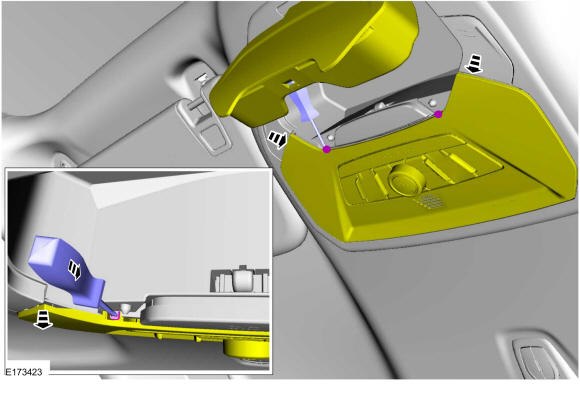

  3. Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.
    GFD224909Courtesy of FORD MOTOR COMPANY

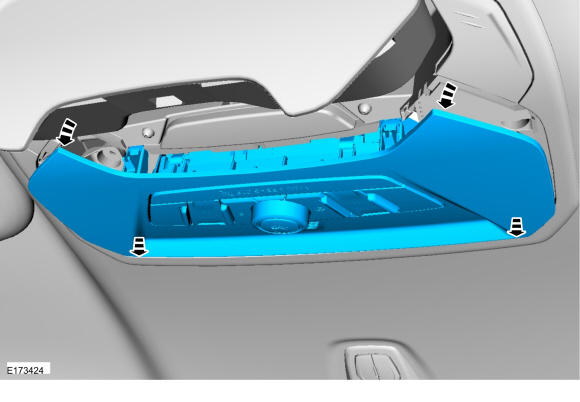

  4. Remove the switch panel.
    GFD224910Courtesy of FORD MOTOR COMPANY

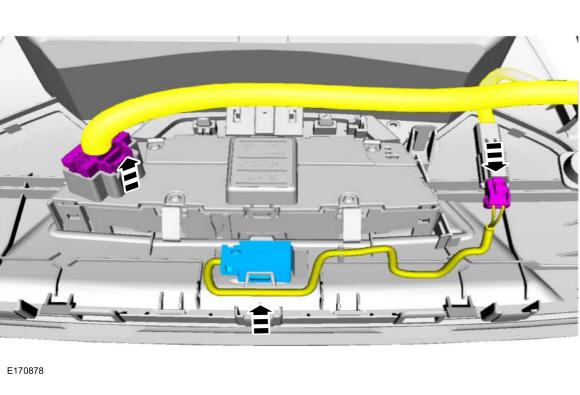

  5. Disconnect the electrical connectors.
    GFD224911Courtesy of FORD MOTOR COMPANY

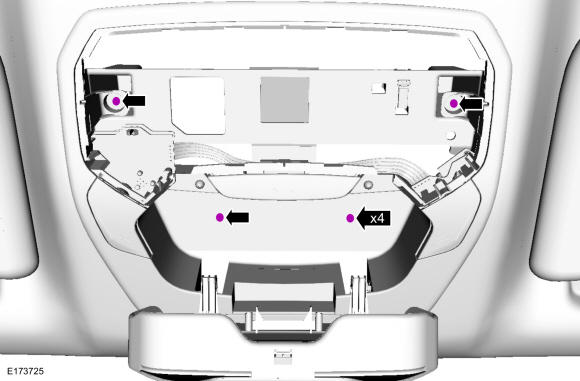

  6. If equipped, remove the 4 torx screws.
    GFD224912Courtesy of FORD MOTOR COMPANY

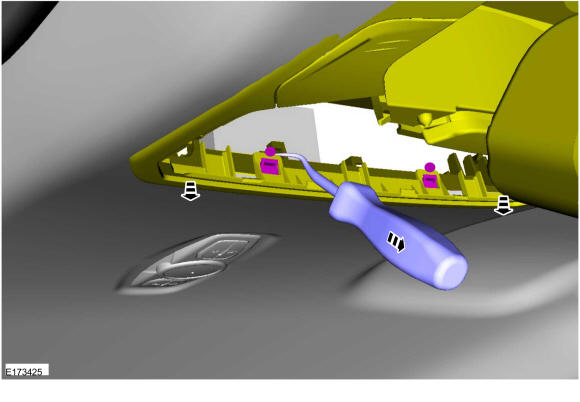

  7. Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.
    GFD224913Courtesy of FORD MOTOR COMPANY

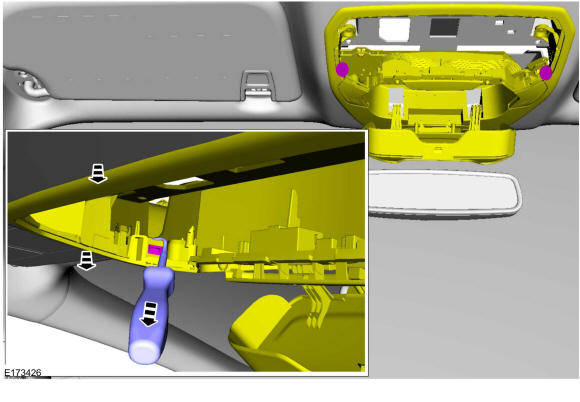

  8. Using a suitable tool release the side snap tabs on both sides.
    GFD224914Courtesy of FORD MOTOR COMPANY

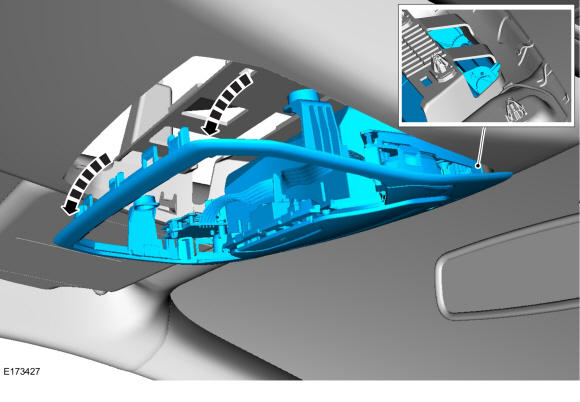

  9. Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
GFD224915Courtesy of FORD MOTOR COMPANY
