Ground Distribution: Grounds

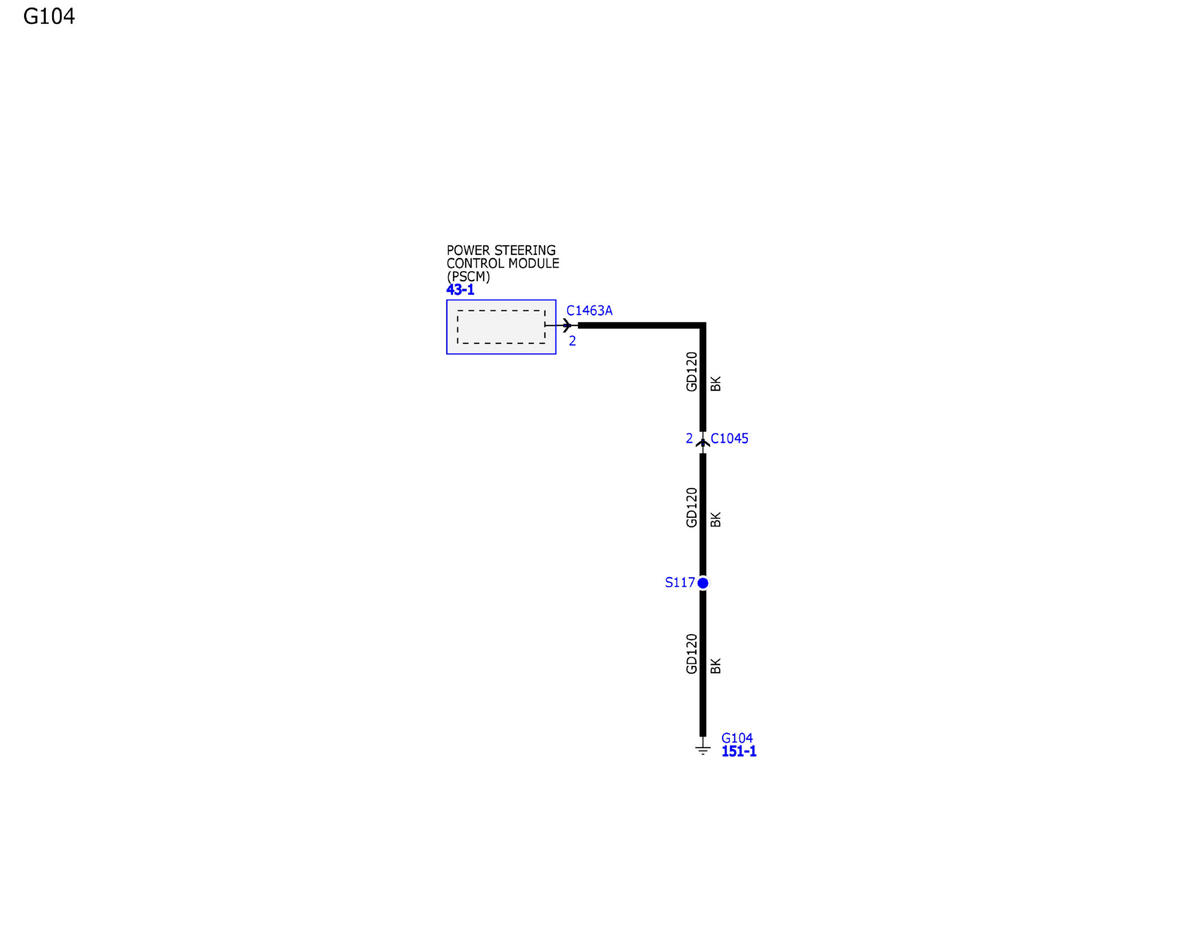

GFDW88795Courtesy of FORD MOTOR COMPANY

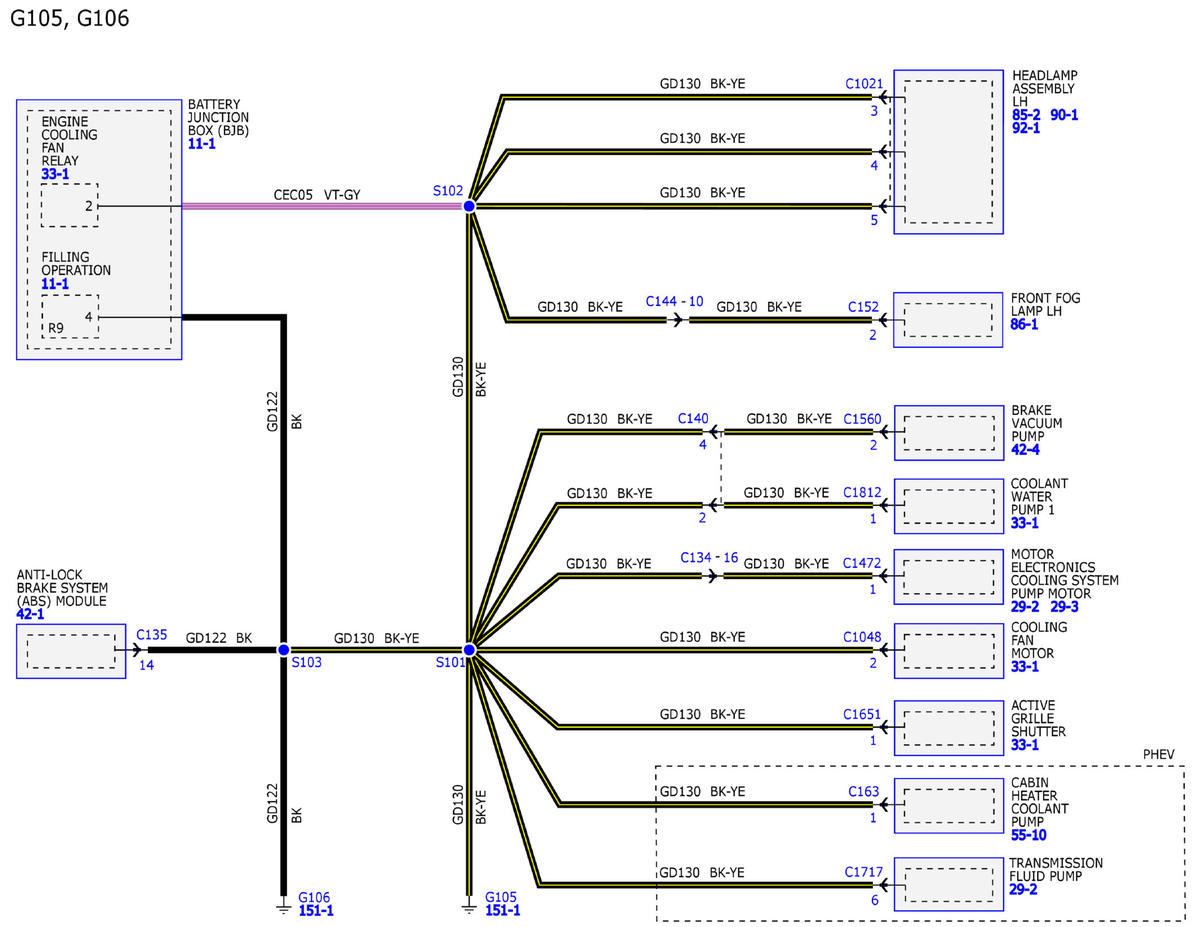

GFDW88796Courtesy of FORD MOTOR COMPANY

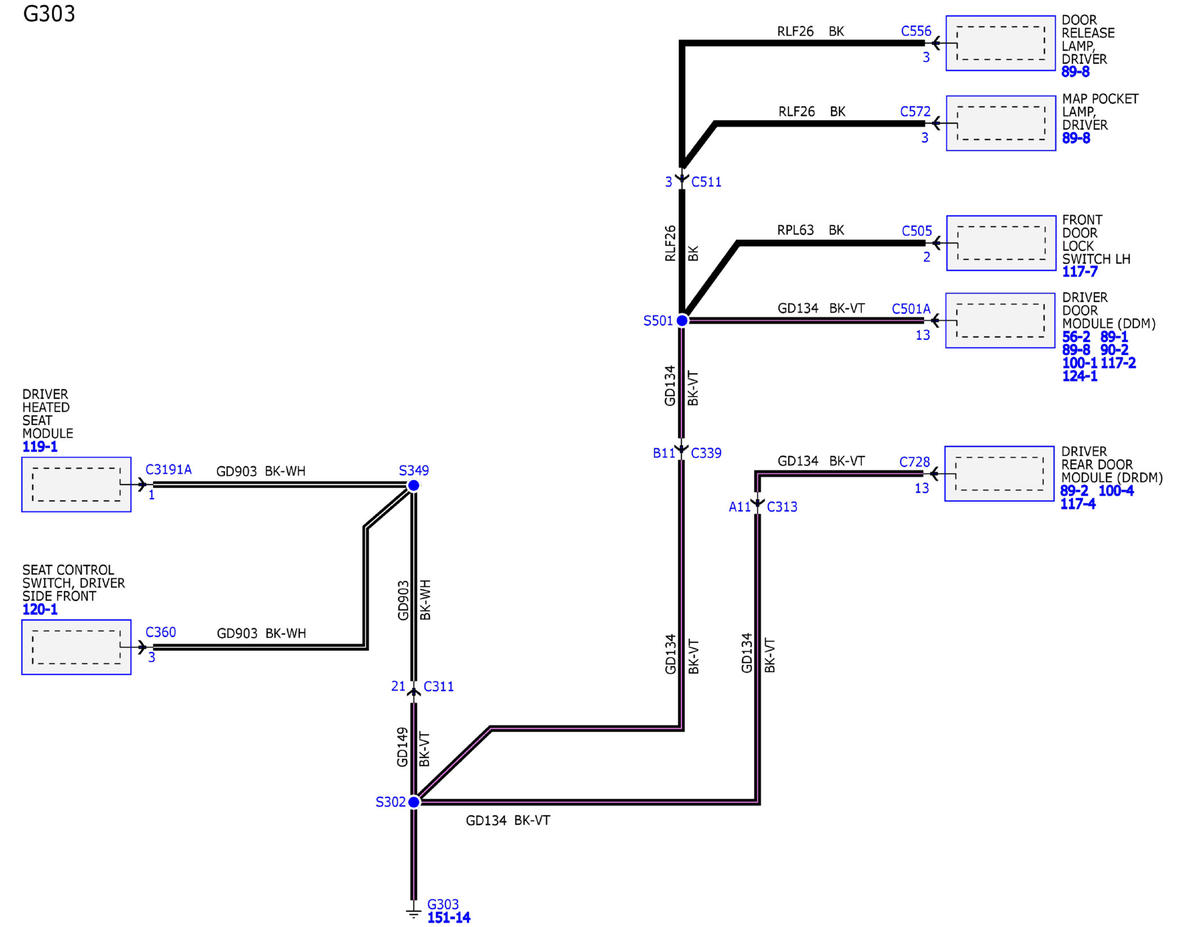

GFDW88797Courtesy of FORD MOTOR COMPANY

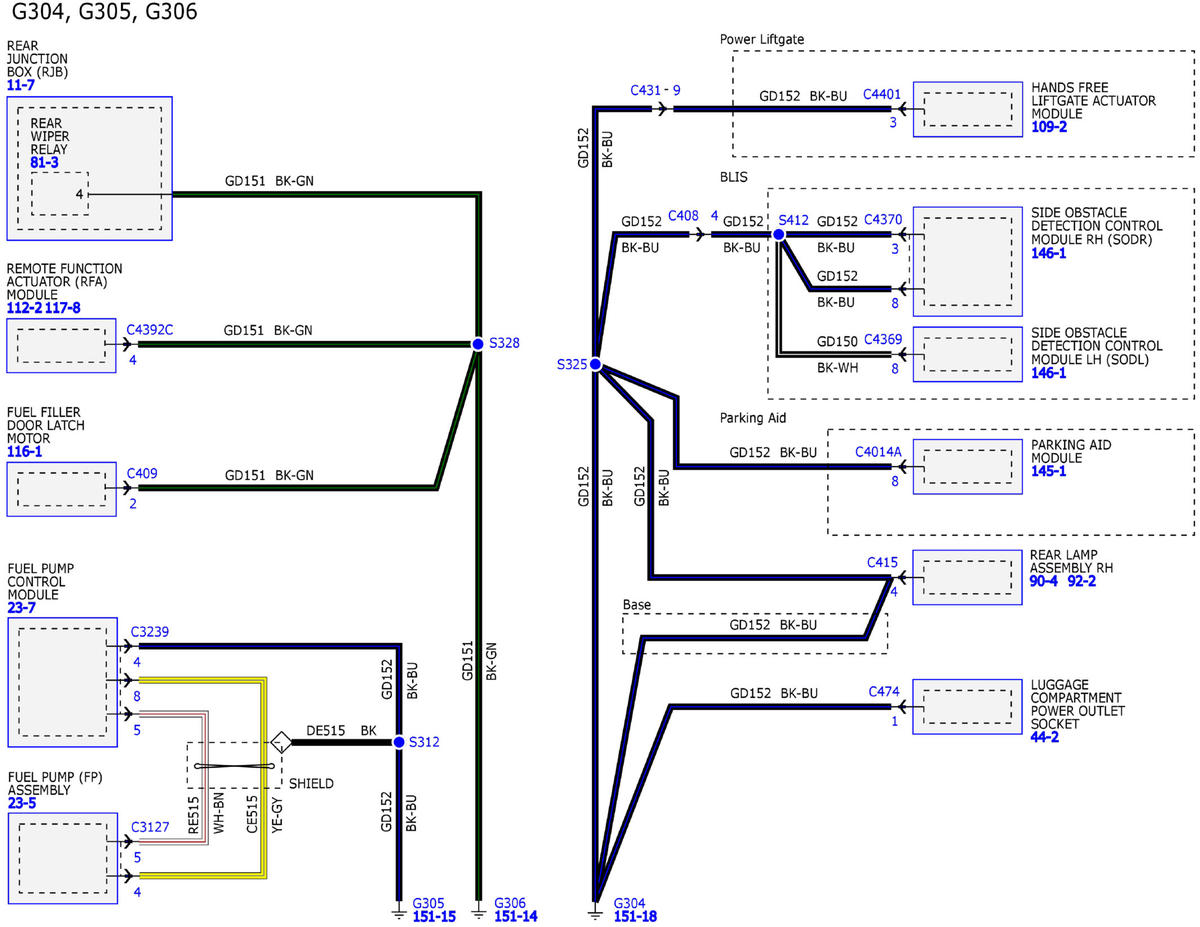

GFDW88798Courtesy of FORD MOTOR COMPANY

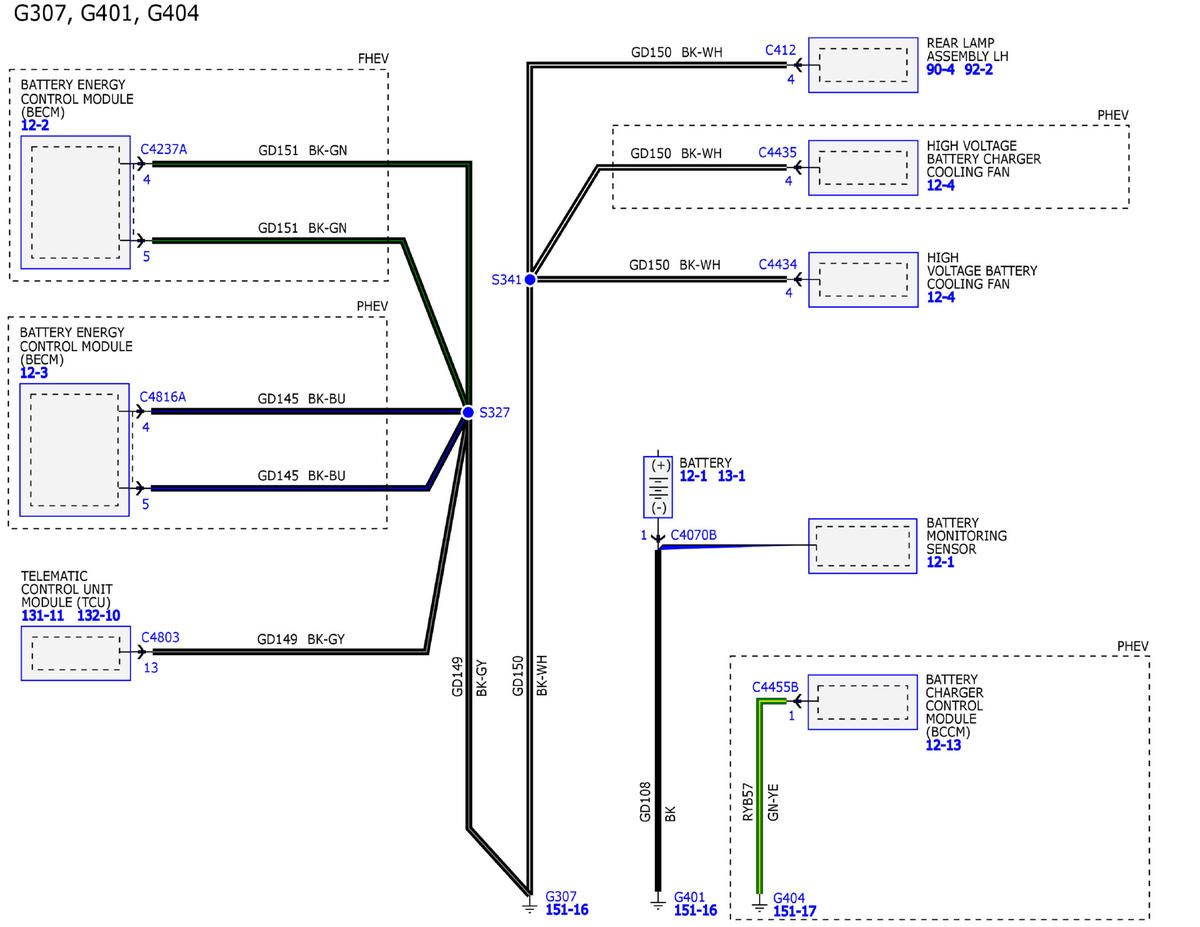

GFDW88799Courtesy of FORD MOTOR COMPANY

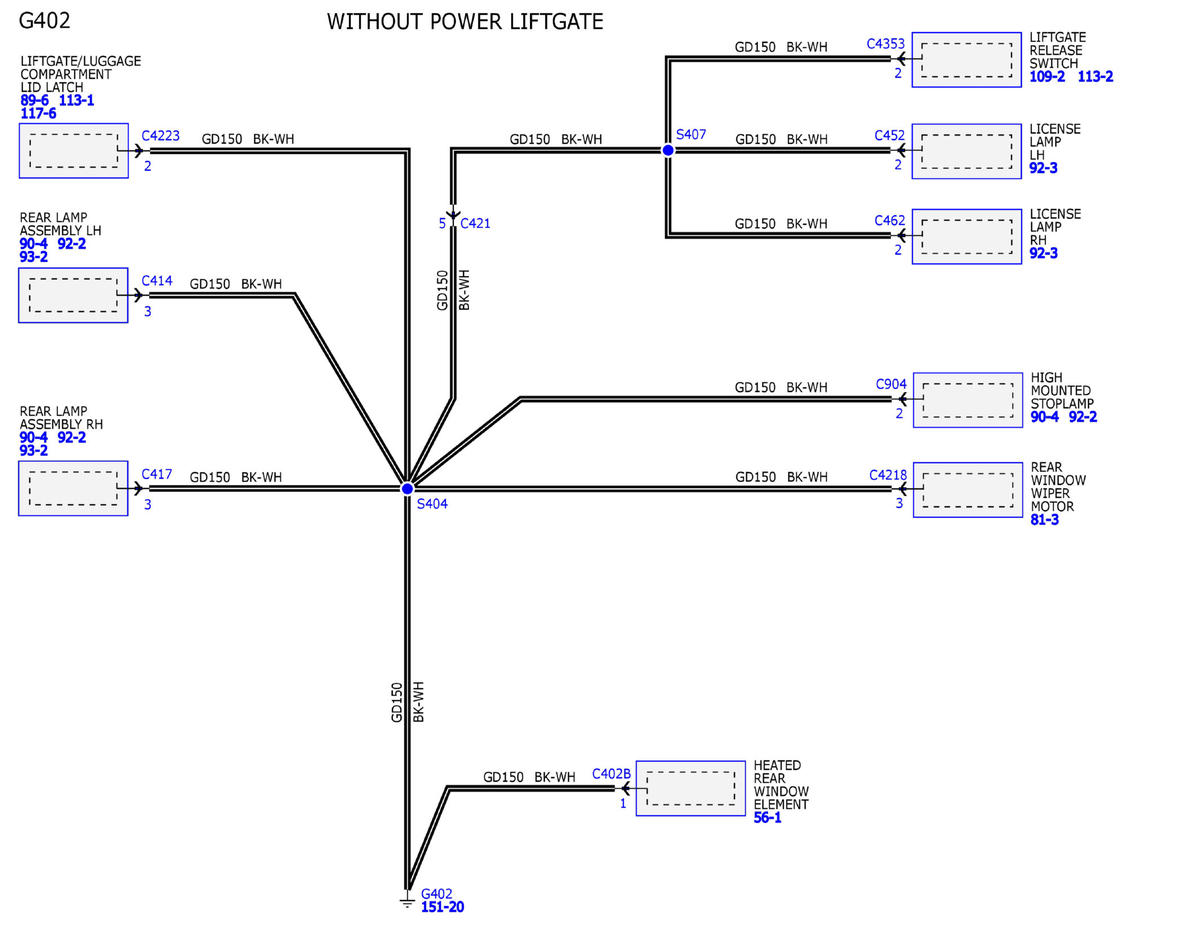

GFDW88800Courtesy of FORD MOTOR COMPANY

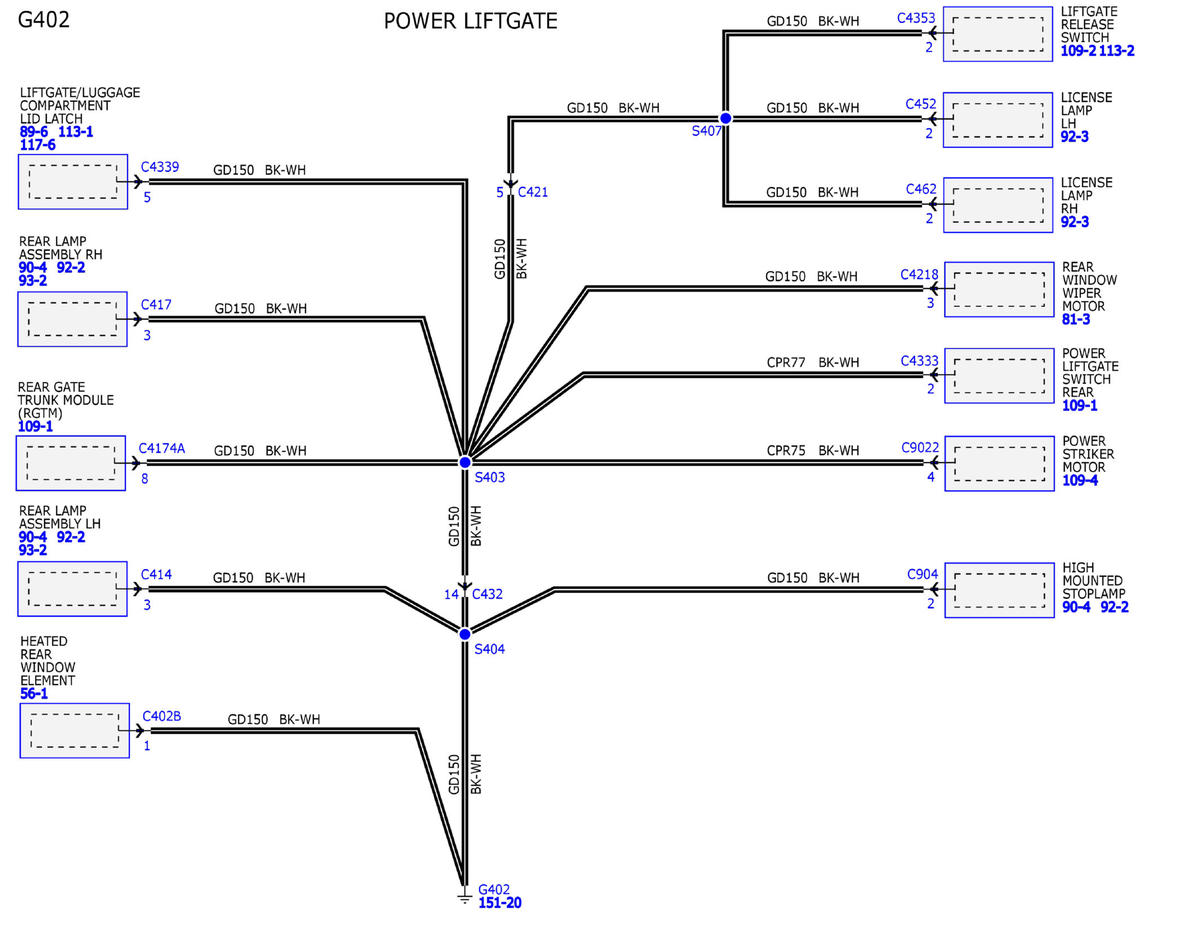

GFDW88801Courtesy of FORD MOTOR COMPANY

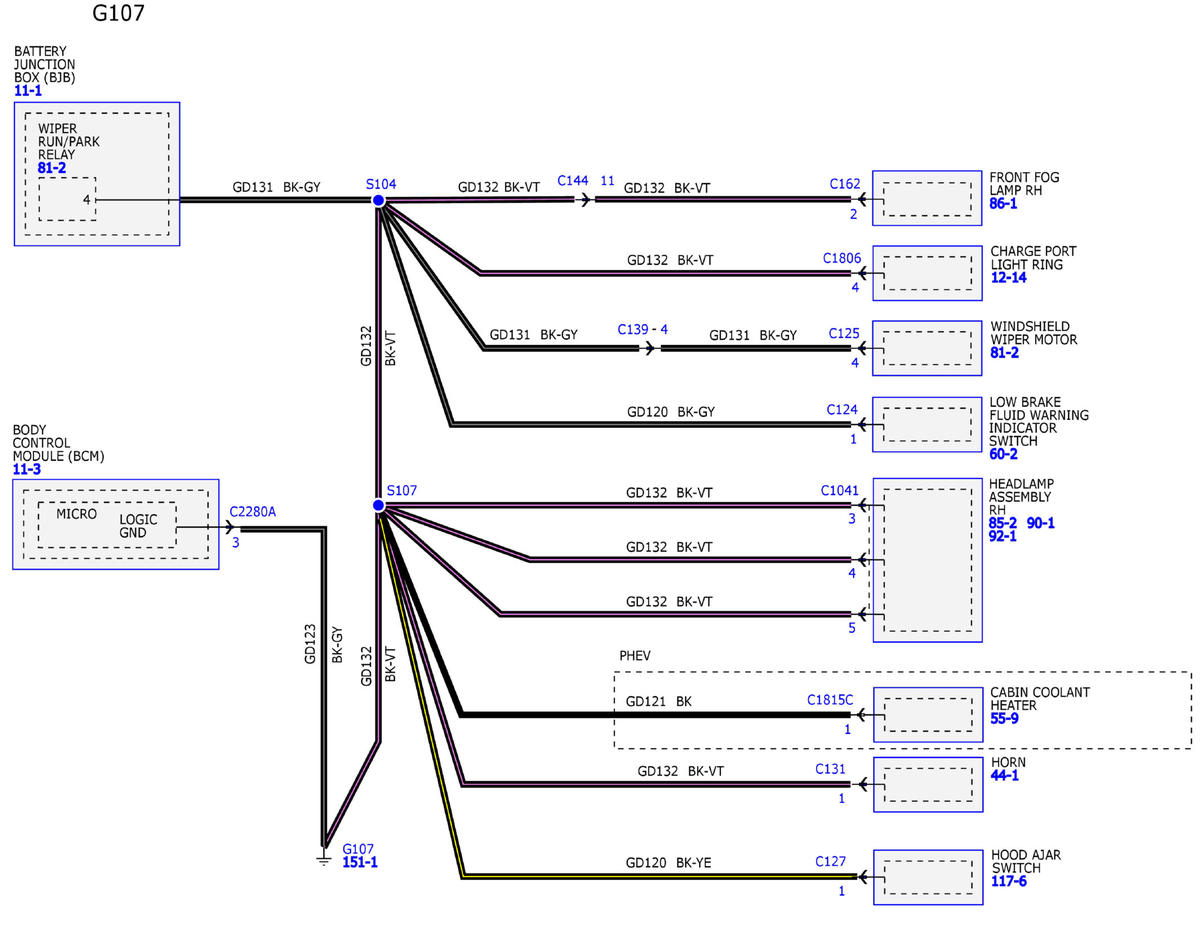

GFDW88802Courtesy of FORD MOTOR COMPANY

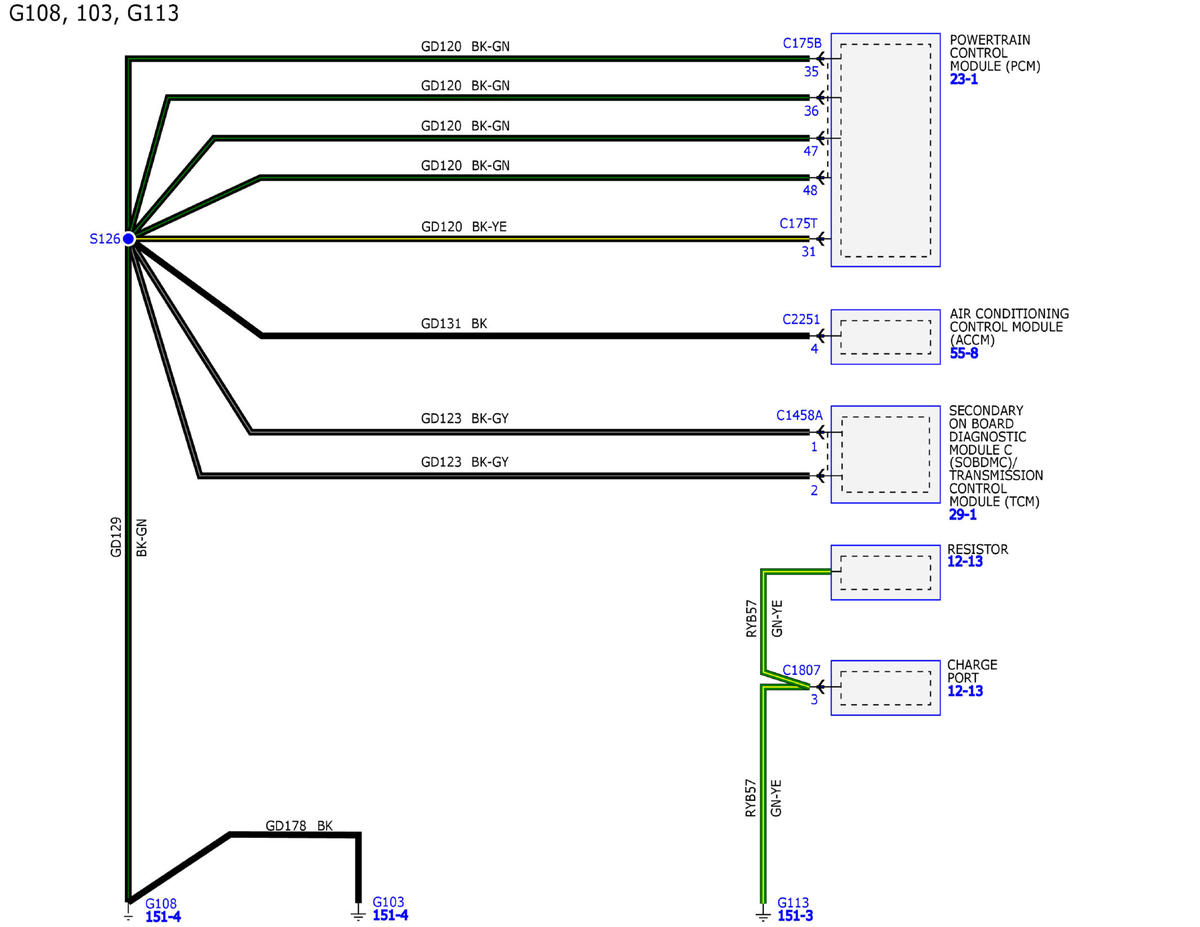

GFDW88803Courtesy of FORD MOTOR COMPANY

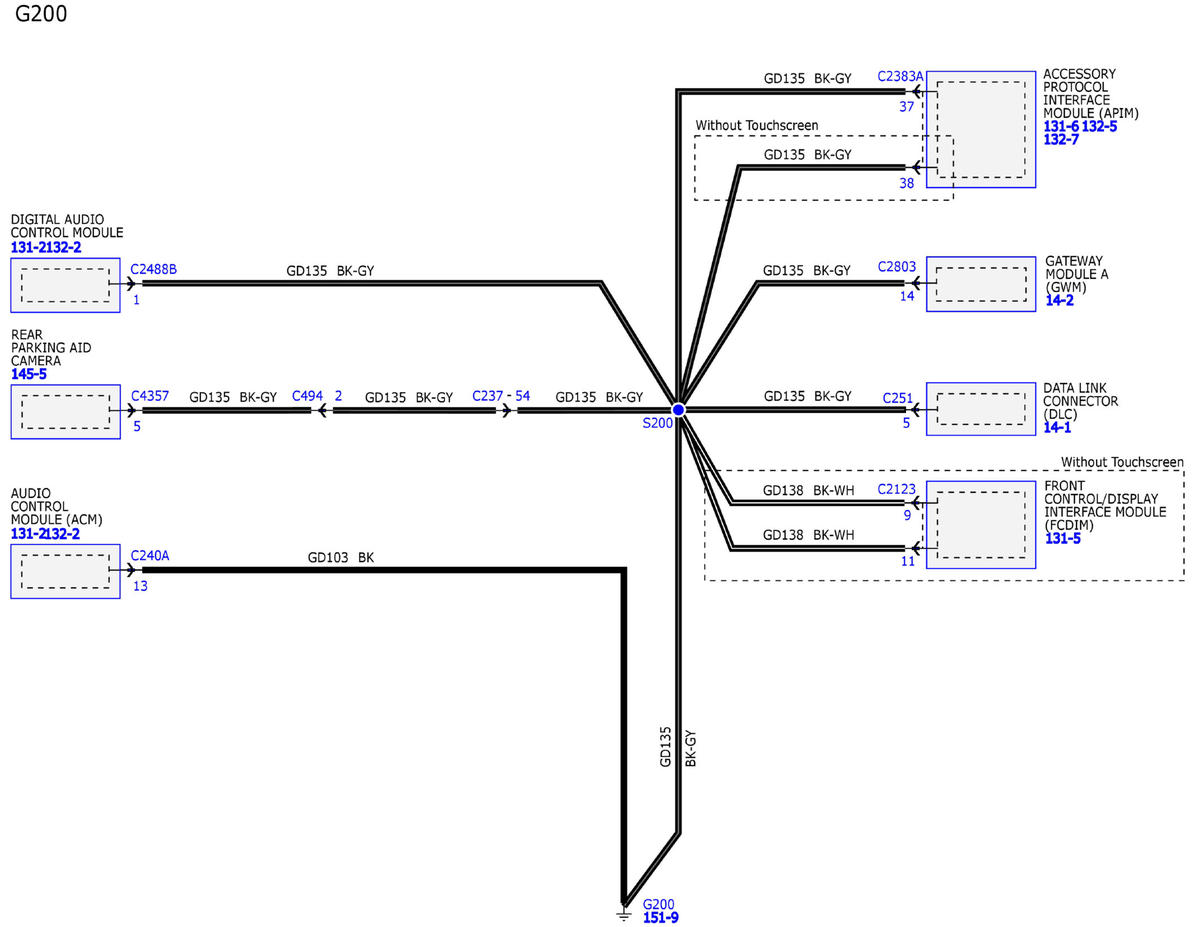

GFDW88804Courtesy of FORD MOTOR COMPANY

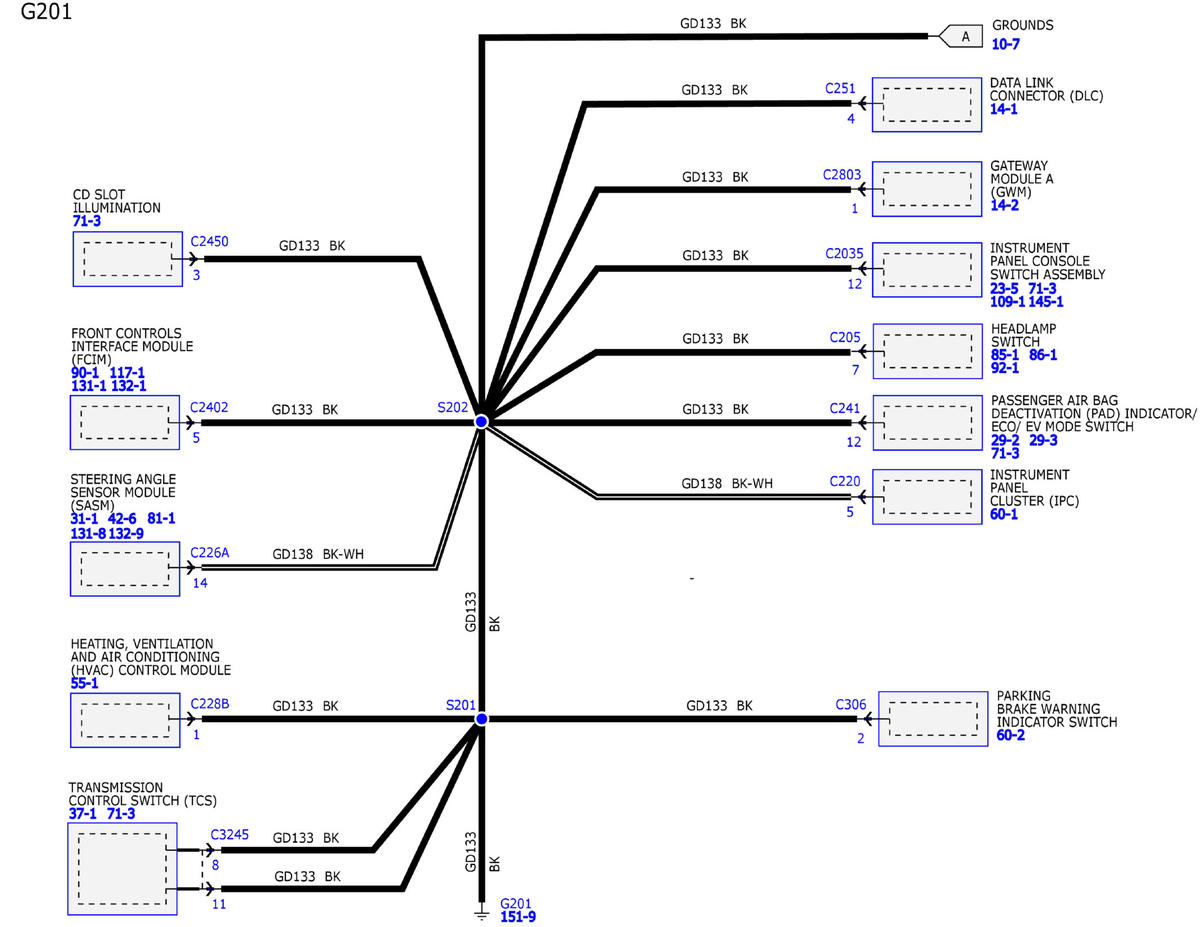

GFDW88805Courtesy of FORD MOTOR COMPANY

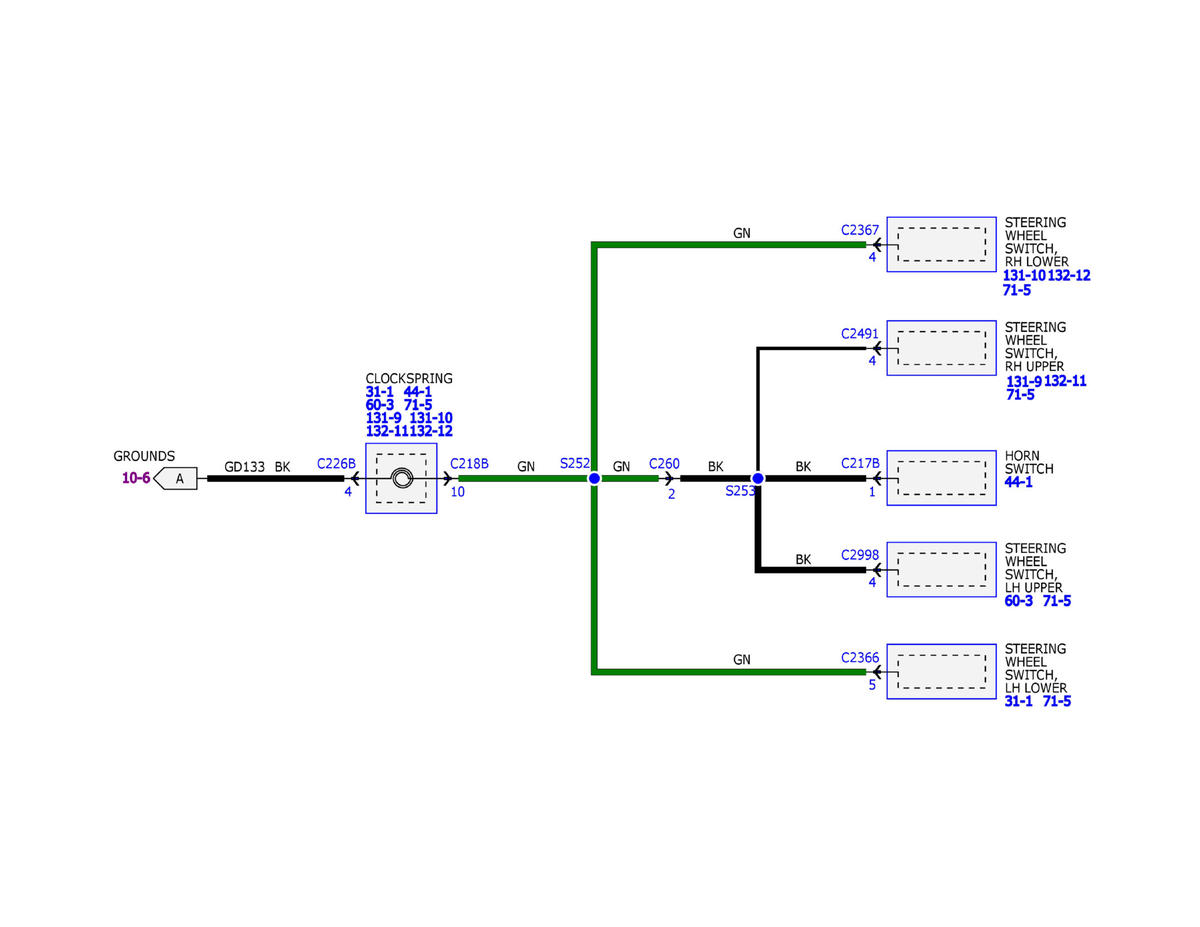

GFDW88806Courtesy of FORD MOTOR COMPANY

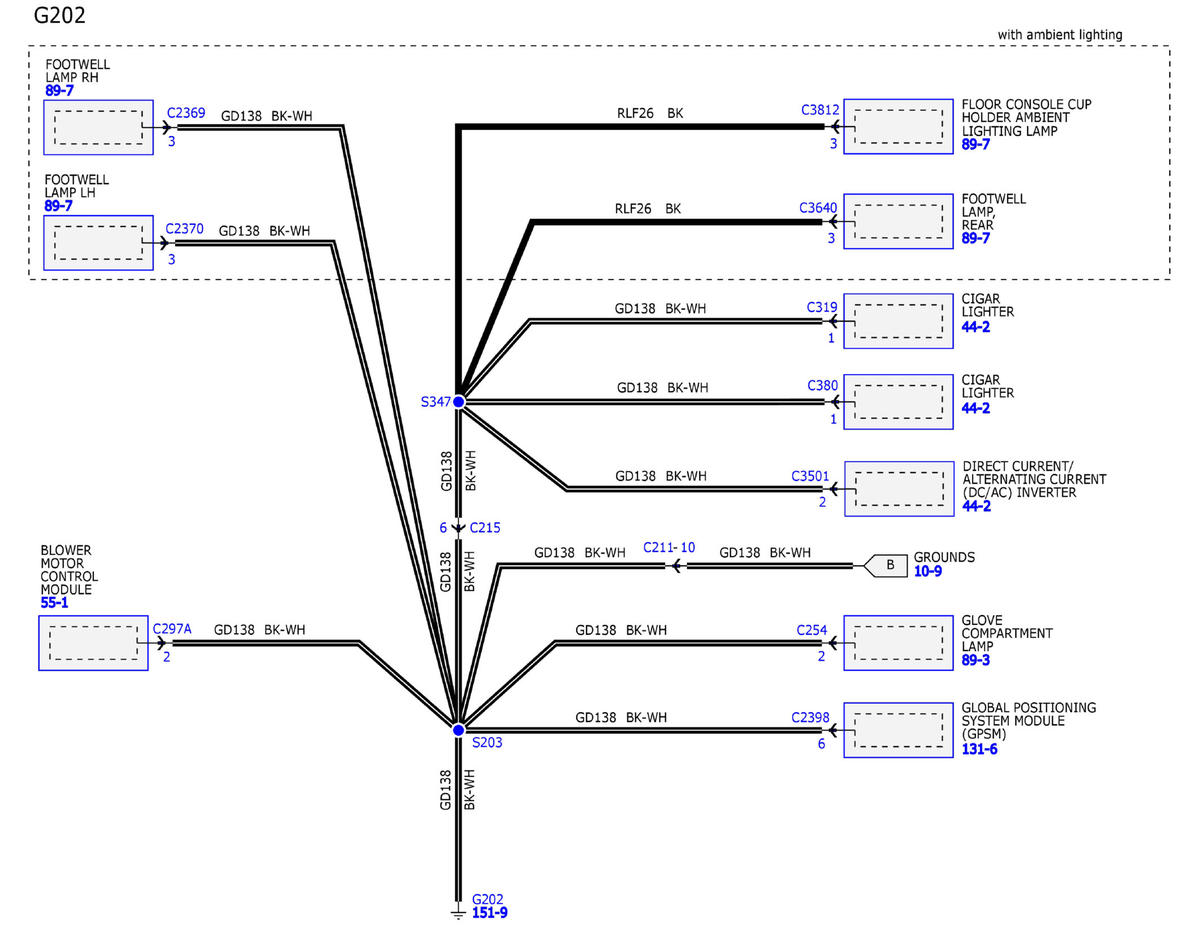

GFDW88807Courtesy of FORD MOTOR COMPANY

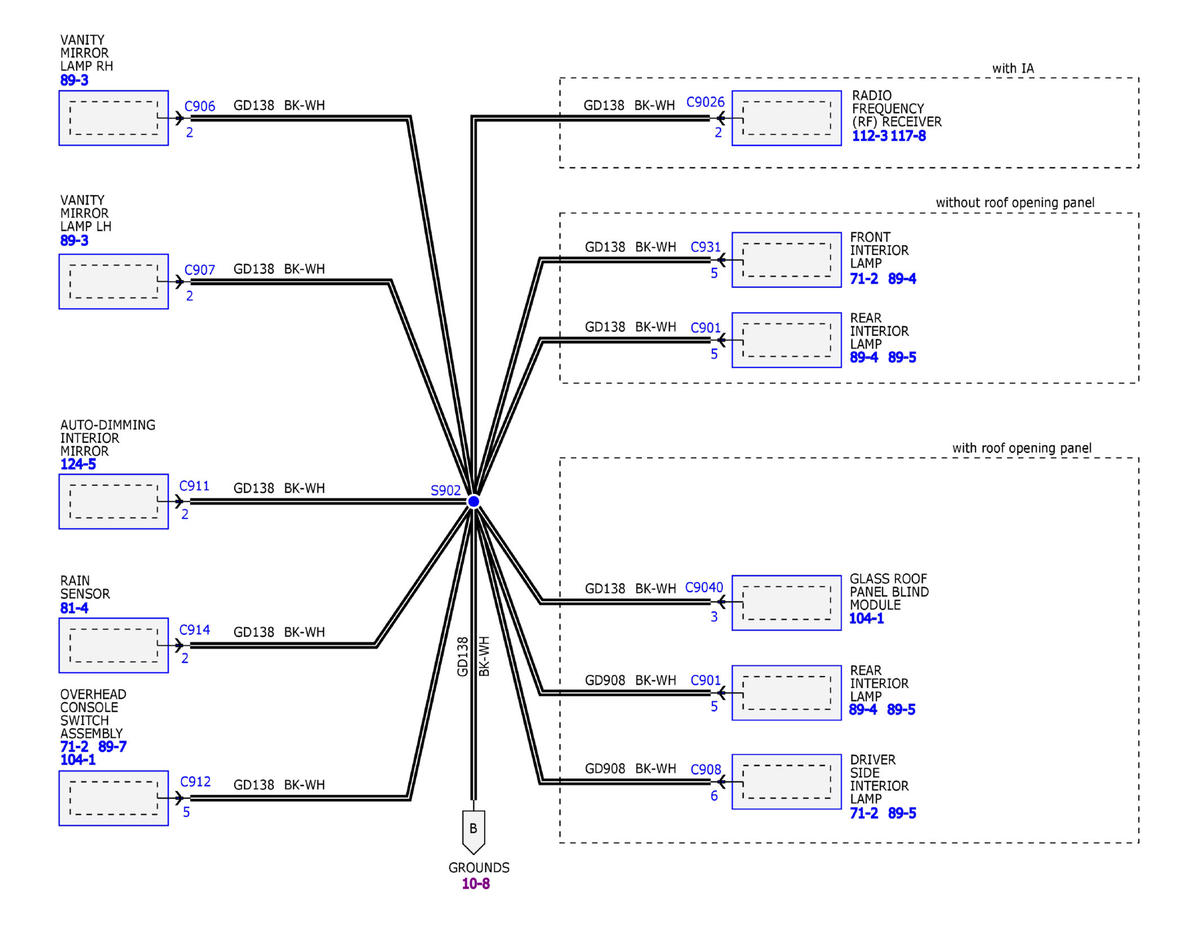

GFDW88808Courtesy of FORD MOTOR COMPANY

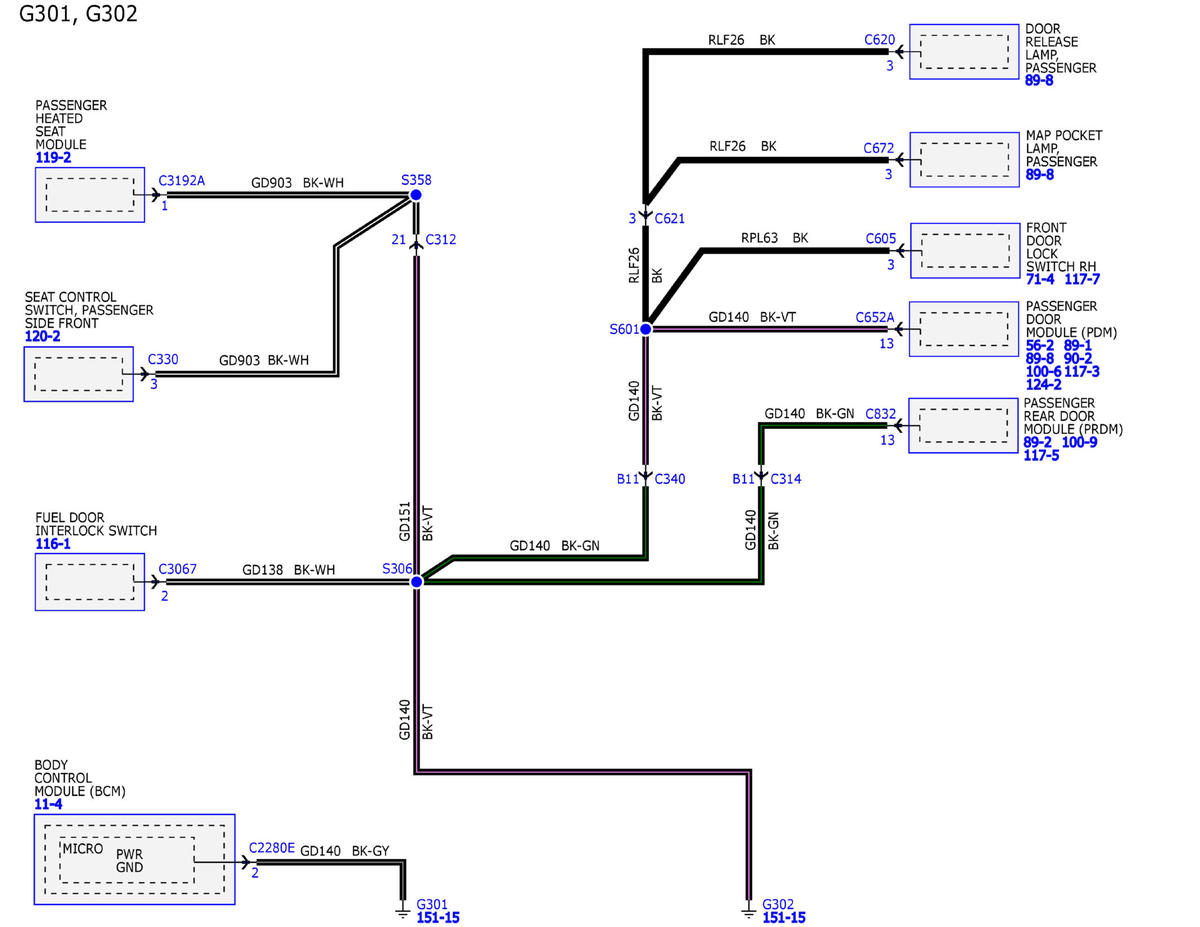

GFDW88809Courtesy of FORD MOTOR COMPANY
