Fuel Pump Driver Module (FPDM): Installation

• 1.

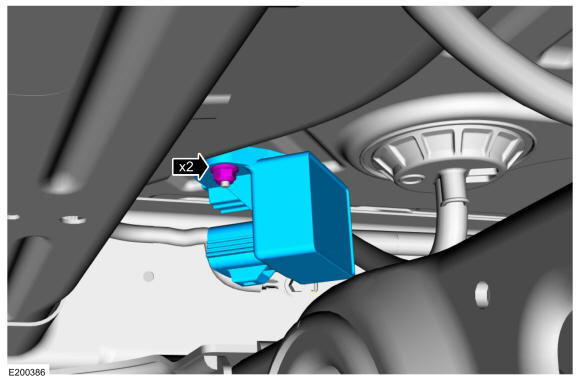

  Install the FPDM, then install and tighten the FPDM nuts.

  Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

• 2.

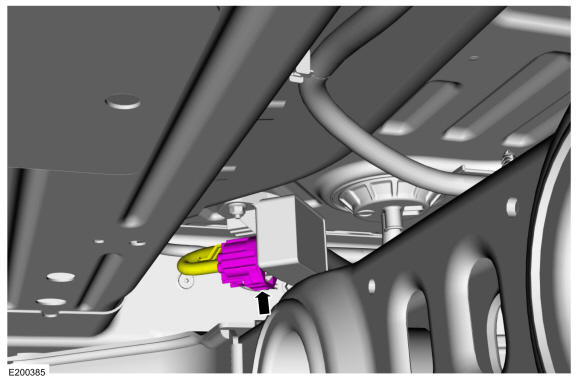

  Connect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY
