Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Remove the steering column shrouds. Refer to: Steering Column Shrouds .

1. 2.

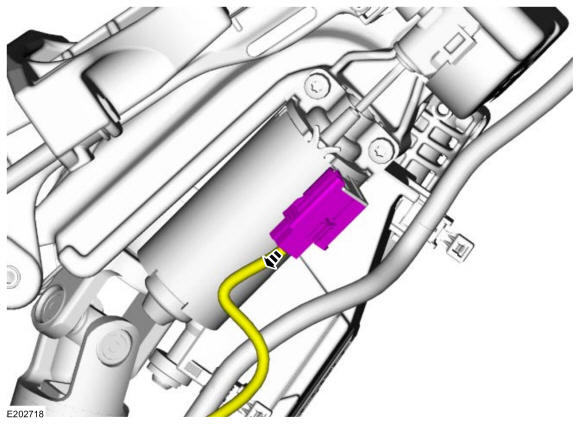

   Detach the tilt motor electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 3.

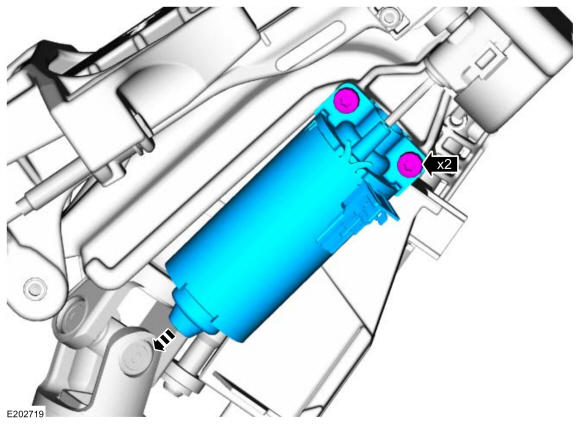

   Remove the screws and the tilt motor.

   Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
