Ride Height Measurement

Special Tool(s) / General Equipment

Surface Gauge

Check

Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1.
- 1.

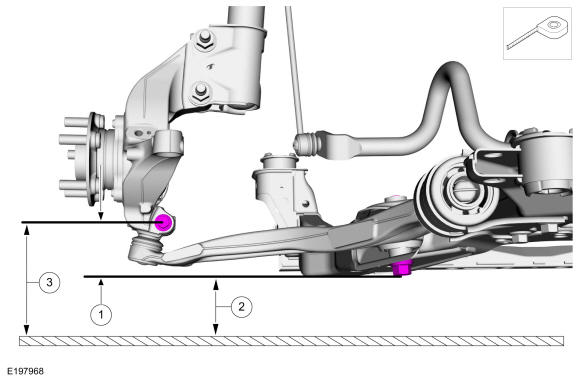

  Ride height = 3-2
- 2.

  Measure the distance between the flat level surface and the center of the lower arm forward bolt (measurement 2)
- 3.

  Measure the distance between the flat level surface and the center of the ball joint pinch bolt (measurement 3)

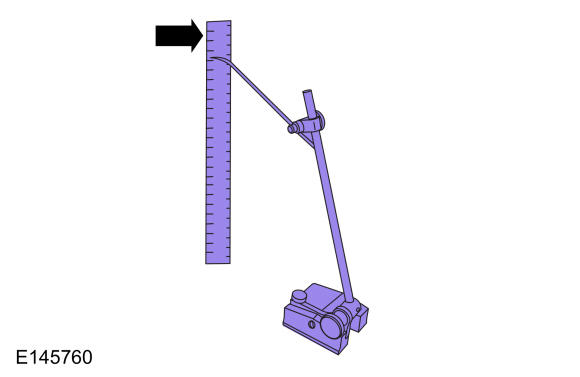

  Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY

2.

With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3).
Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY

3.

Subtract measurement 2 from measurement 3 to obtain the front ride height.

Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

4.
- 1.

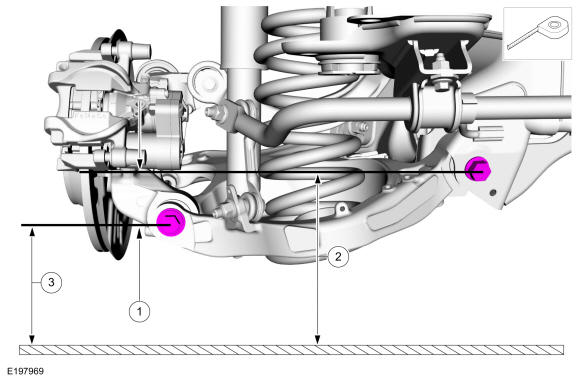

  Ride height = 3-2
- 2.

  Measurement 2
- 3.

  Measurement 3
  Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY

5.

Measure the distance between the flat level surface and the center of the rearward lower arm-to-frame bolt (measurement 2).

6.

Measure the distance between the flat level surface and the center of the lower arm-to-knuckle bolt (measurement 3).

7.

Subtract measurement 2 from measurement 3 to obtain the rear ride height.
