OEM Electrical Wiring Diagram Introduction: Introduction

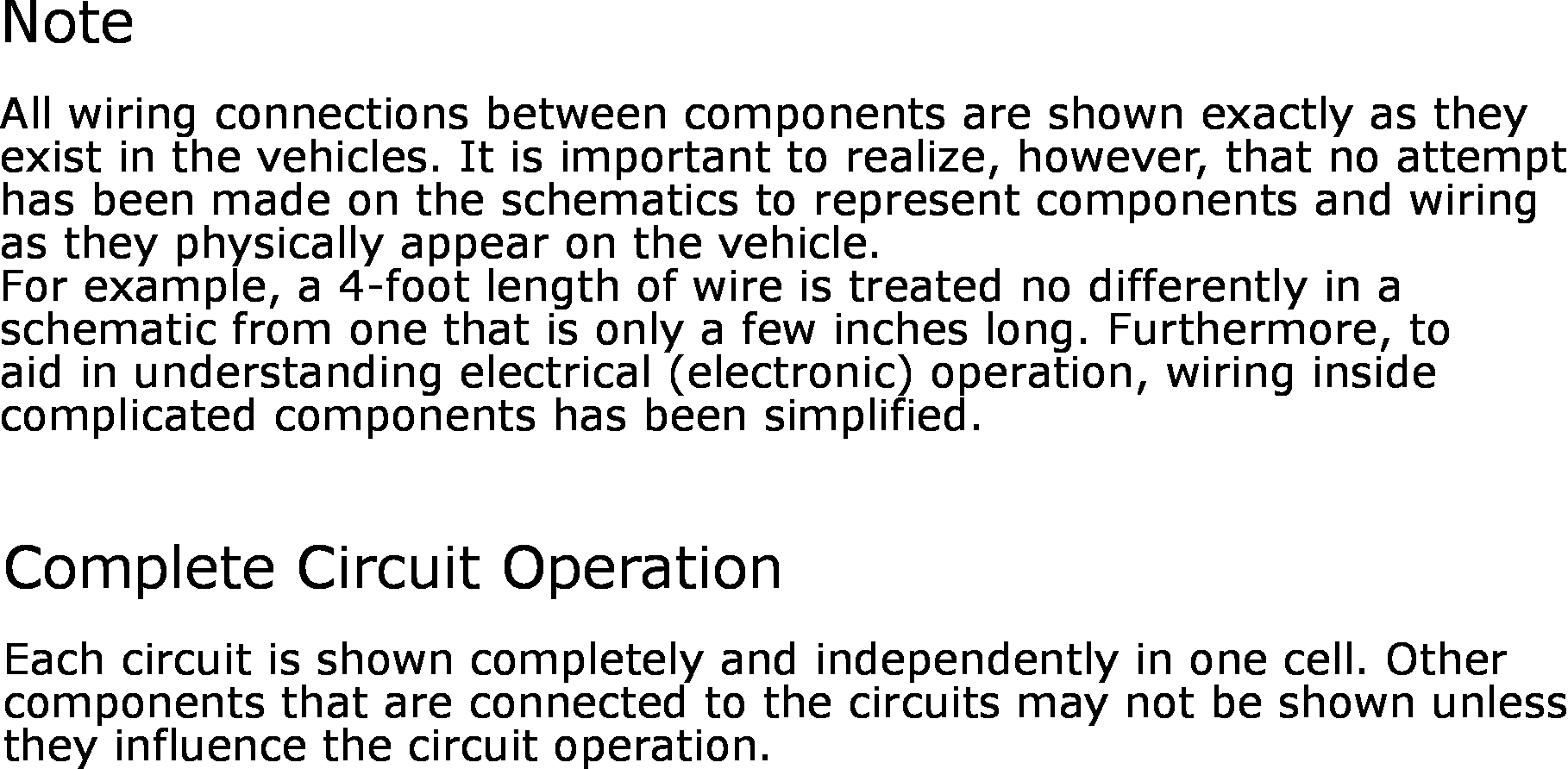

GFDW5197Courtesy of FORD MOTOR COMPANY

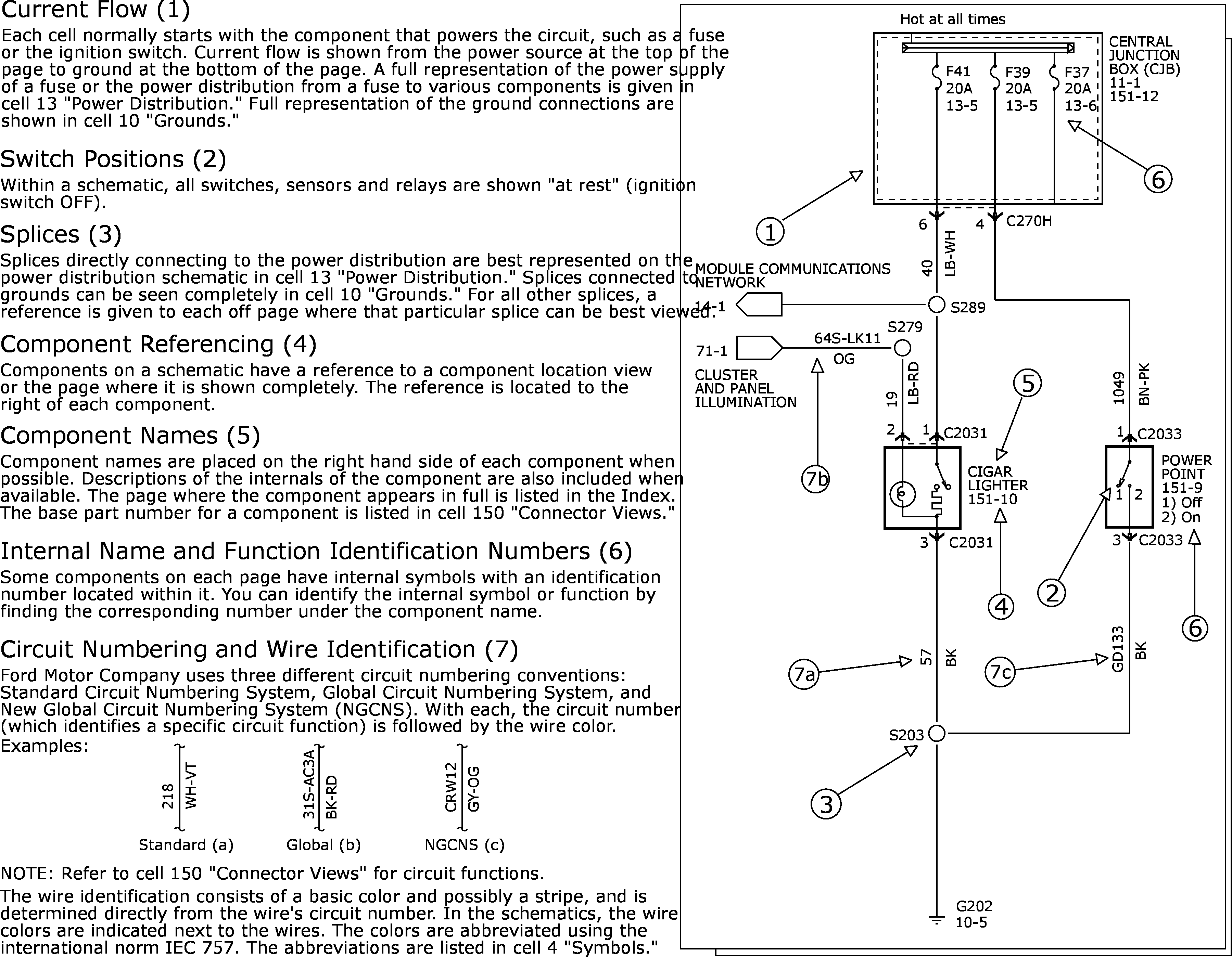

GFDW5198Courtesy of FORD MOTOR COMPANY

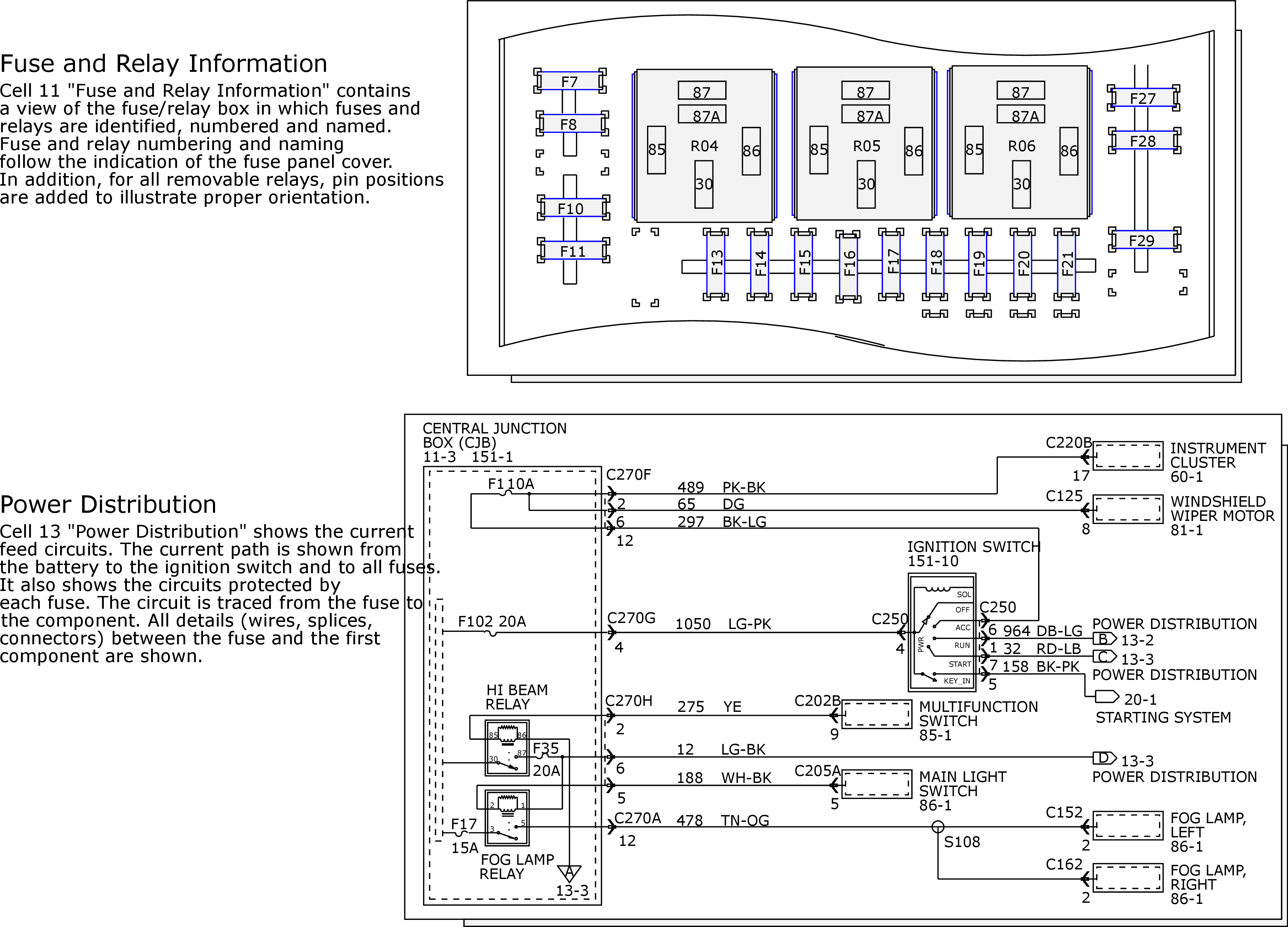

GFDW5199Courtesy of FORD MOTOR COMPANY

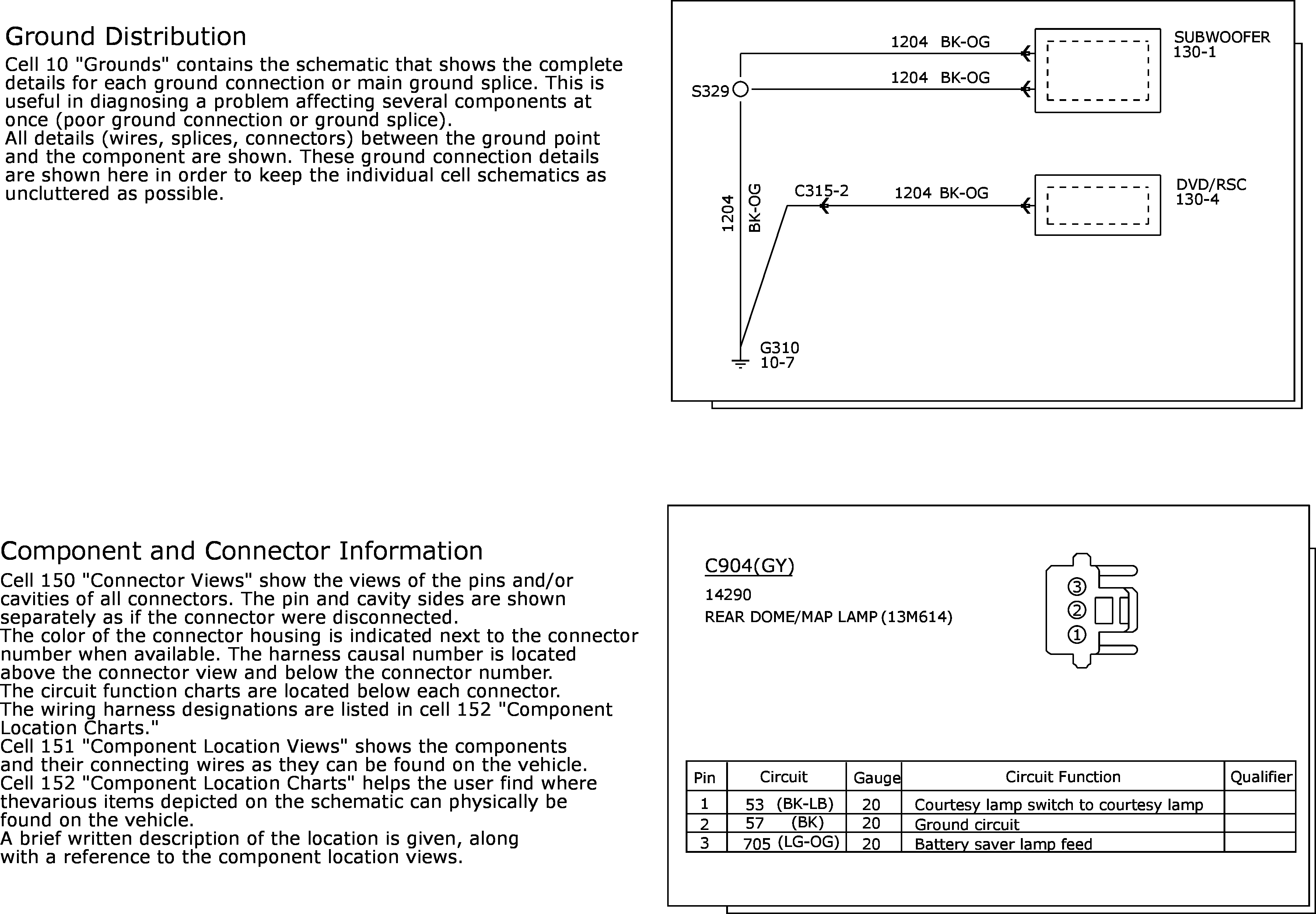

GFDW5200Courtesy of FORD MOTOR COMPANY

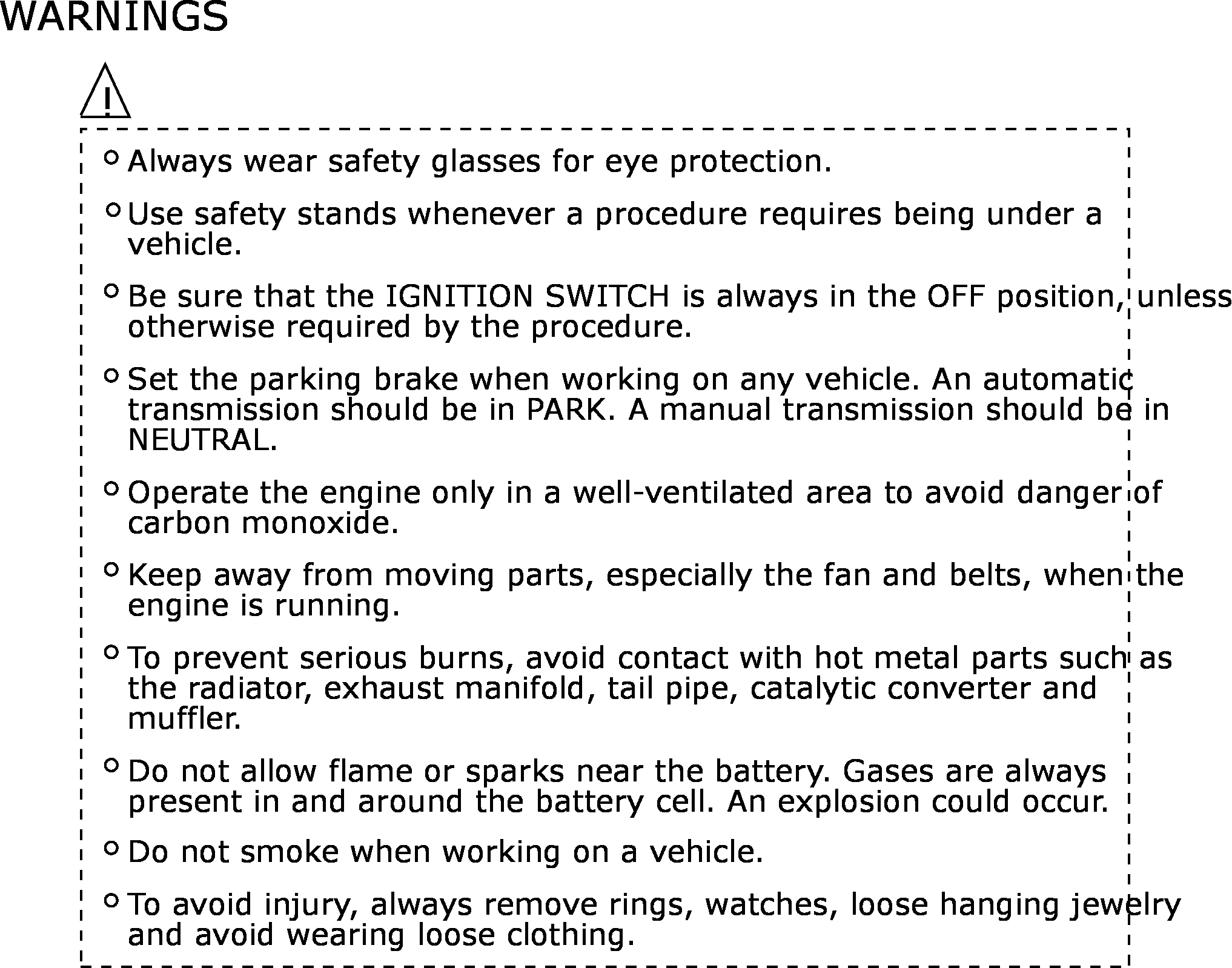

GFDW5201Courtesy of FORD MOTOR COMPANY
