Pump Assembly

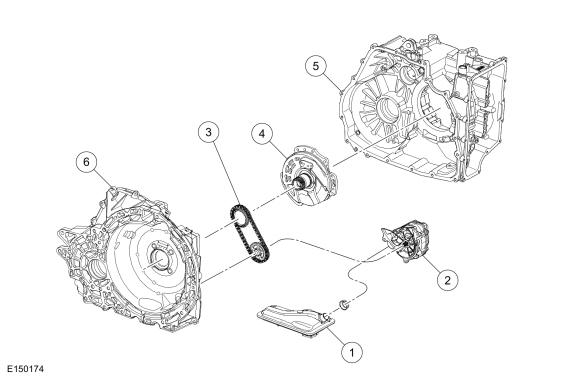

Fluid Pump and Transmission Fluid Filter Components
| Item | Description |
|---|---|
| 1 | Transmission fluid filter assembly |
| 2 | Pump assembly |
| 3 | Chain and sprocket assembly |
| 4 | Stator support assembly |
| 5 | Transmission case |
| 6 | Torque converter housing |
Mechanical Operation
The transmission fluid in the sump area at the bottom of the transmission case flows through a transmission fluid filter to the pump assembly. The pump is bolted to the torque converter housing and is chain driven from a sprocket that is mounted on the stator support and turned by the torque converter.
