Transfer Shaft: Assembly

1.

Install the park pawl wheel.

GFD20870

Courtesy of FORD MOTOR COMPANY

2.

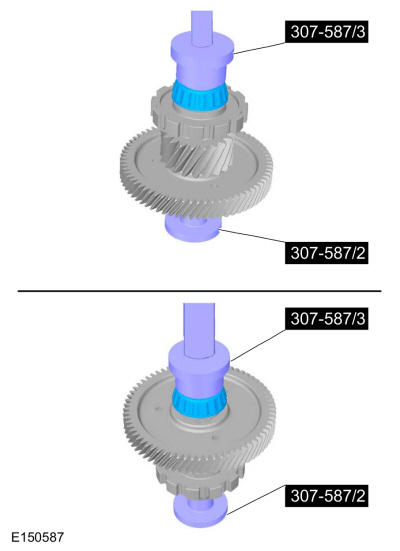

Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide. Use the General Equipment: Hydraulic Press

GFD20871

Courtesy of FORD MOTOR COMPANY

3.

Select a new transfer shaft shim. Refer to: Torque Converter Housing .
